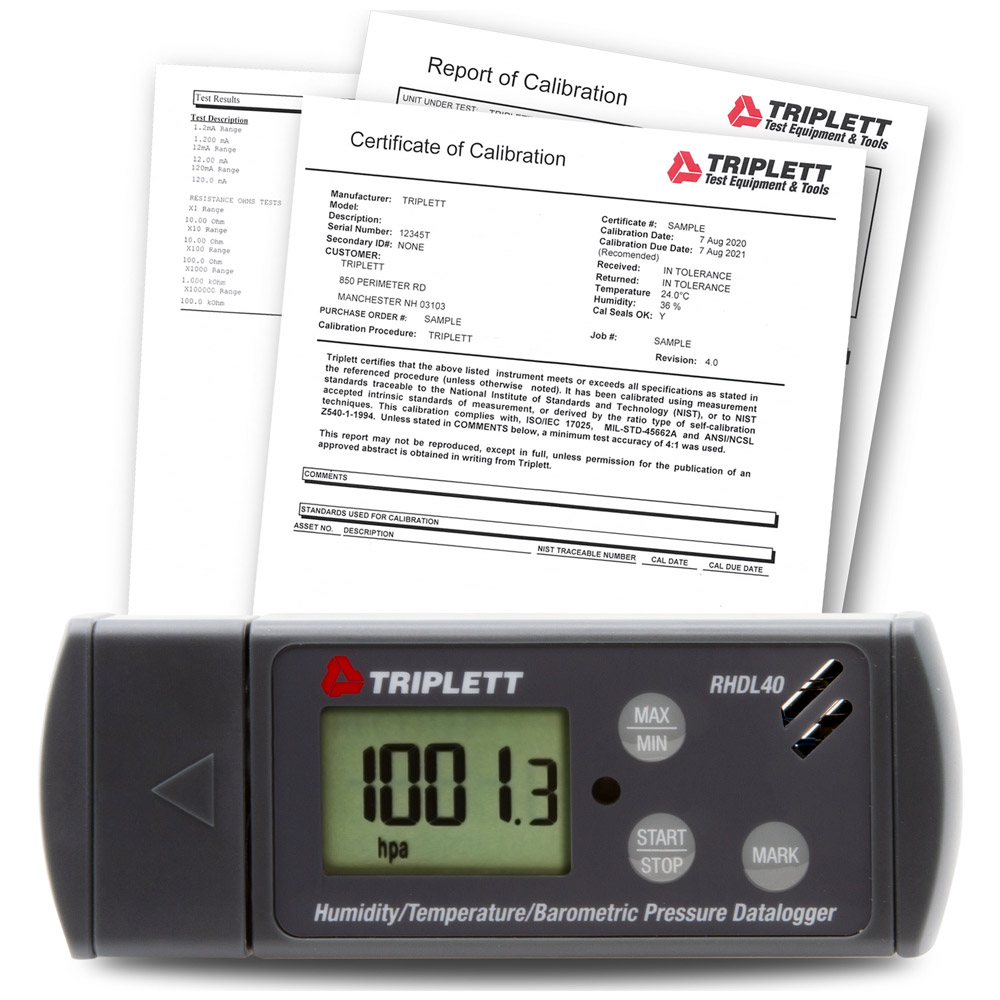

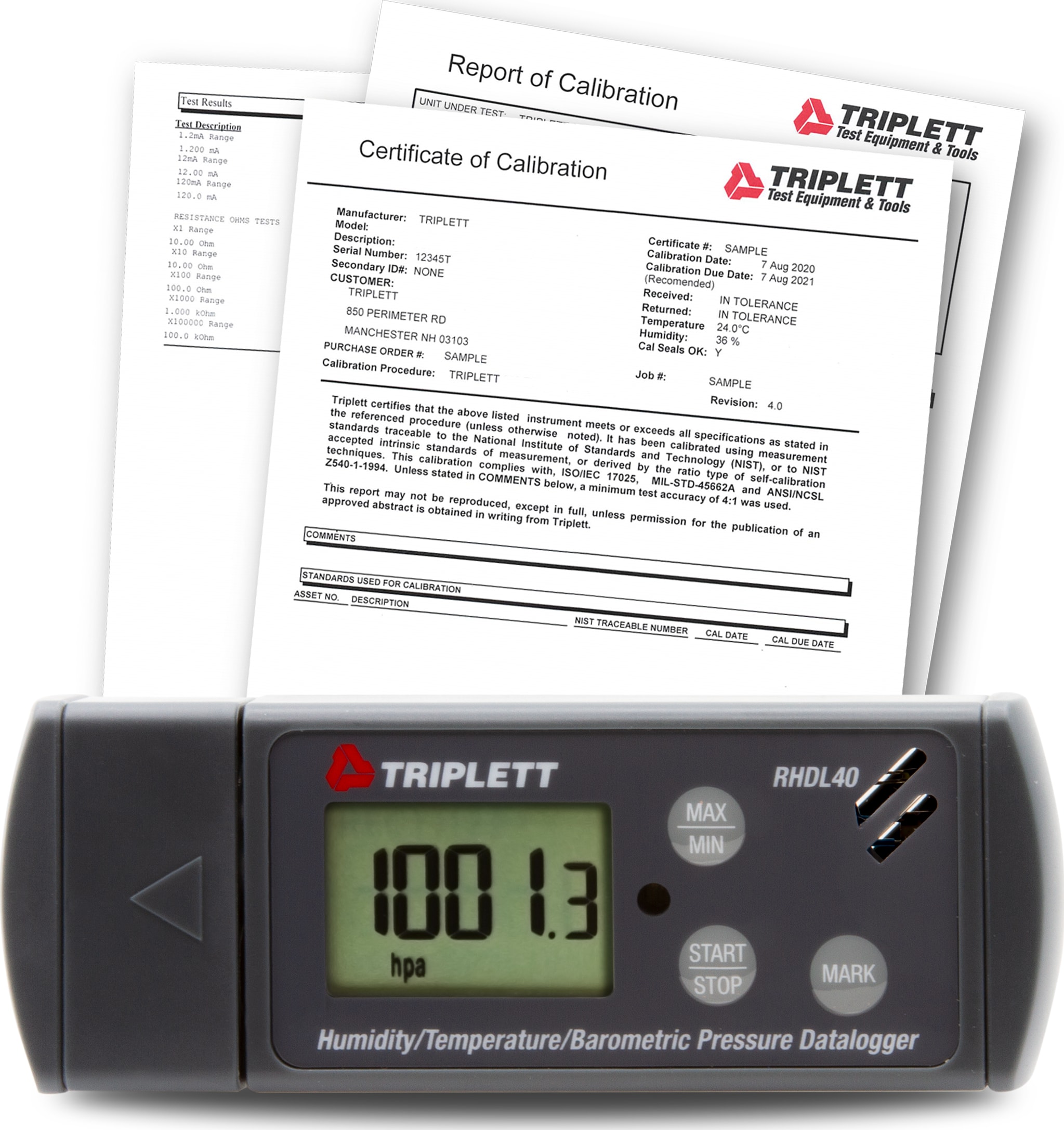

Triplett RHDL40-NIST – Temperature/ Humidity/Barometric Pressure PDF Datalogger with Cert. of Traceability to NIST

- Records 16,000 readings each for Temperature, Humidity and Barometric Pressure
- Download data in PDF format with graph or Excel (.csv)
- User programmable High/Low Alarms
- Password protection
- User programmable Start and Alarm delays
The Triplett RHDL40 USB PDF Datalogger records 16,000 readings each for Temperature, Humidity and Barometric Pressure. You can download data in PDF format with graph or Excel (.csv) spreadsheet. It features 6 languages (English, German, French, Italian, Spanish, and Portuguese) with user programmable high/low alarms as well as programmable start and alarm delays. Min/Max recalls the highest and lowest recorded readings. You can mark up to 8 events for easy recall. Recorded data can be securely password protected. Includes 2 CR2032 batteries, cover with built-in stand and Cert. of Traceability to NIST. 1 year warranty.
Manufacturer Specs
| Triplett RHDL40-NIST Specifications | |
| Air Temperature | -22°F – 158°F |
| -30°C – 70°C | |
| Accuracy | +/-1.0°F |
| +/-0.5°C | |
| Relative Humidity | 0.1%RH – 99.9%RH |
| Accuracy | +/-3%RH (10 to 90%) |
| Barometric Pressure | 300hpa – 1100hpa |
| 8.9 inHg – 32.5inHg | |
| Accuracy | +/-3 (32°F – 140°F) |
| +/-3 (0°C – 60°C) | |
| +/-5 (-4°F – 32°F) | |
| +/-5 (-20°C – 0°C) | |
| Resolution | 0.1°F |
| 0.1°C | |
| 0.1%RH | |
| 0.1hpa | |
| 0.1inHg | |
| Datalogging Points | 16,000 Temperature |
| 16,000 Humidity | |
| 16,000 Barometric Pressure | |
| Sampling Intervals | 30s, 5m, 10m, 30m, 60m, 90m, 120m |
| PC Interface | USB |
| Report Format | PDF with graph or Excel |
| Dimensions | 4.3in x 1.8in x 0.7in |
| 110mm x 45mm x 17mm | |
| Weight | 1.8oz |
| 50g | |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 158 F (70 C) |
| Min Temperature | -22 F |
| Input Source | Internal Probe |
| # Data Points | 16000 |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Product Weight | 1.8 OUNCES (0.112 LBS) |
| Product Height | 4.3 IN |
| Product Length | 1.8 IN |
| Product Width | 0.7 IN |
| Shipping Weight | 1 LBS |
