Descripción

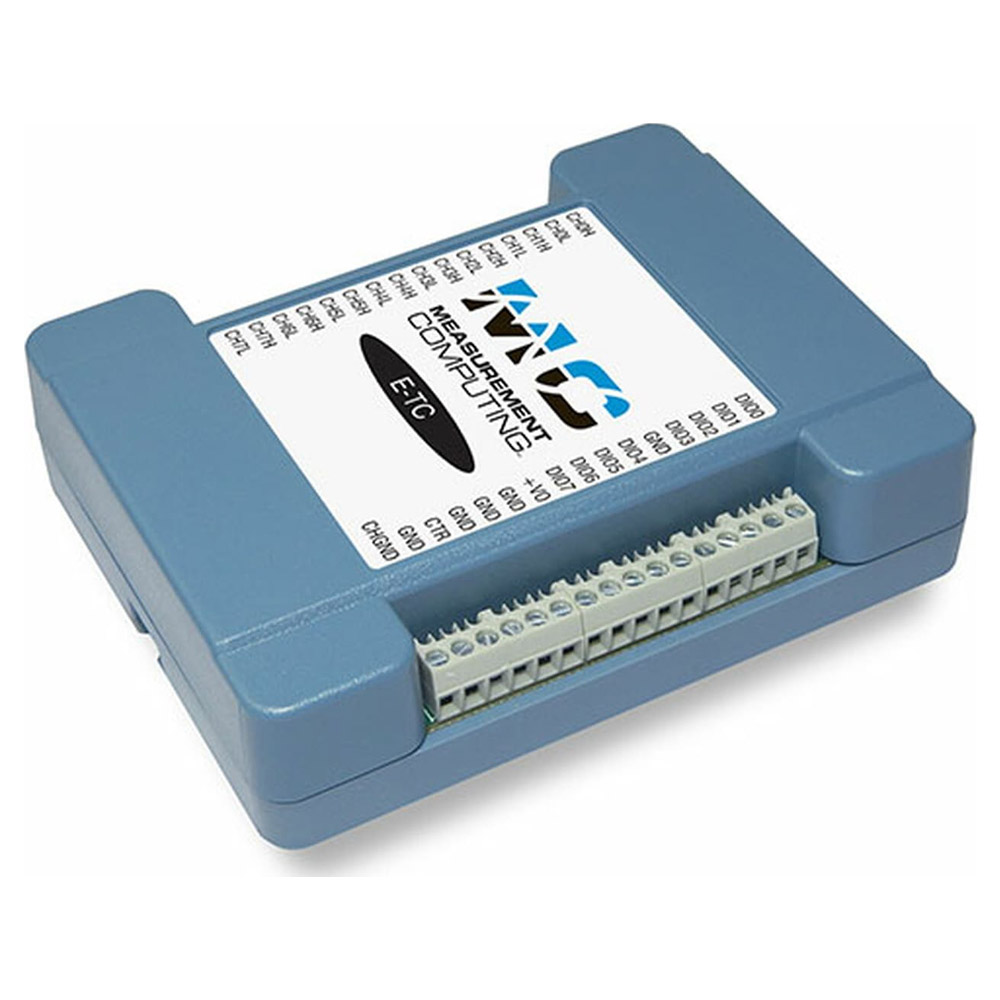

Digilent MCC E-TC
- Eight thermocouple inputs
- 24-bit resolution
- 4 S/s/ch sample rate
- Supports thermocouple types J, K, R, S, T, N, E, and B
- Built-in CJC
Thermocouple Measurement Ethernet DAQ Device (24-bit, 4 S/s/ch)
Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The E-TC is an Ethernet-based, eight-channel, thermocouple measurement device. It features a 24-bit resolution for precise temperature measurements, a 4 S/s/ch sample rate, and eight digital I/O that can be used for triggers or alarms.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | DAQ System |
| Sampling Frequency (Recorders) | 4 S/s (0.000004 MS/S) |
Test Equipment General Attributes |
|
| Interfaces I/O | Other |
| Product Height | 4.64 IN |
| Product Length | 3.26 IN |
| Product Width | 1.14 IN |
| Shipping Weight | 2.0 LBS |
