Fluke 700RG07 Pressure Gauge, Reference, -12 TO 500 PSIG.
Introducing Fluke’s New Precision Pressure Gauge calibrators
- Easy to use, rugged and reliable construction with precision pressure measurement from 15 psi/ 1 bar to 10,000 psi/690 bar and 0.05% accuracy
- Compatible with most Hydraulic and Pneumatic Test Pumps
- Combine with one of the Fluke Test Pump Kits (700PTPK or 700HTPK) for a complete pressure testing and calibration solution
- Use the 700G/TRACK Software to upload over 8,000 pressure measurements logged in the field to a PC

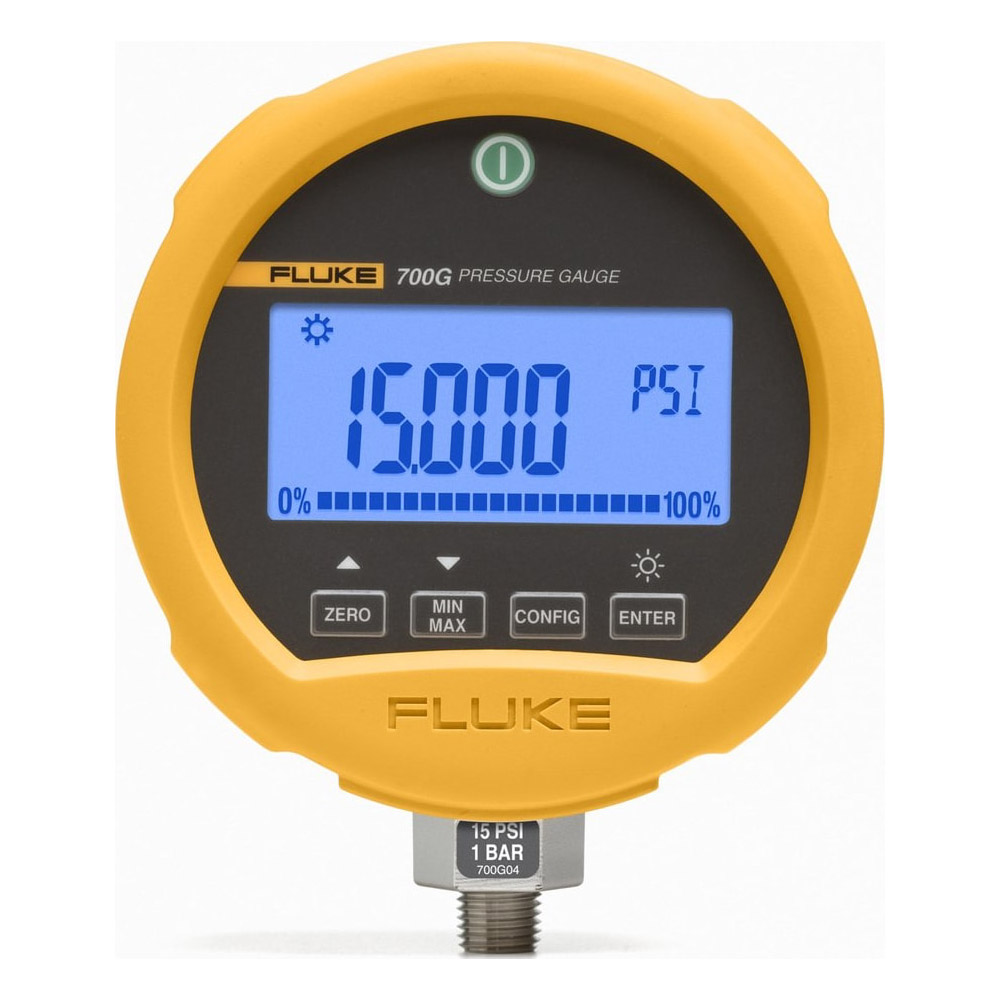

Display and Buttons
 |
| Item | Function |
 |
Push to turn the Product on. Push again to turn it off. |
 |
Zeros the display. In Configure Mode, push the button to move forward through the menus. |
 |
MIN MAX records minimum and maximum pressure values and saves them in memory. Push to show maximum(MAX) indication. Push again to show minimum (MIN) indication. After 2 seconds, the gauge goes back to live operation.To clear the MIN MAX memory values, push and hold for 2 seconds until CLris shown.In Configure Mode, push ( ) to movebackward through the menus. |
 |
Push to go to setup and configuration menus. |
 |
Push to make a selection. When the Product is not in Configuration mode, push to turn on the backlight. Push again to turn off the backlight. |
| 1 | NPT Connector |
| 2 | Pressure Display |
| 3 | Engineering Units |
| 4 | Bargraph |
Manufacturer Specs
| Model | Range | Resolution | Accuracy | Burst Pressure |
| 700G01 | -10 to +10 inH2O | 0.001 inH20 | Positive pressure ± 0.1 % of range, Vacuum ± 0.1 % of range |
3 psi |
| -20 mbar to 20 mbar | 0.0001 bar | 210 mbar | ||
| 700G02 | -1 to +1 psi | 0.0001 psi | 5 psi | |
| -70 mbar to 70 mbar | 0.001 mbar | 350 mbar | ||
| 700G04 | -14 psi to 15 psi | 0.001 psi | Positive pressure ± 0.05 % FS Vacuum ± 0.1 % FS |
60 psi |
| -.97 bar to 1 bar | 0.0001 bar | 4 bar | ||
| 700G05 | -14 psi to 30 psi | 0.001 psi | 120 psi | |
| -.97 bar to 2 bar | 0.0001 bar | 8 bar | ||
| 700G06 | -12 psi to 100 psi | 0.01 psi | 400 psi | |
| -.83 bar to 6.9 bar | 0.0001 bar | 26 bar | ||
| 700G07 | -12 psi to 500 psi | 0.01 psi | 2000 psi | |
| -.83 bar to 34 bar | 0.001 bar | 138 bar | ||
| 700G08 | -14 psi to 1000 psi | 0.1 psi | 4000 psi | |
| -.97 bar to 69 bar | 0.001 bar | 266 bar | ||
| 700G10 | -14 to 2000 psi | 0.1 psi | 8000 psi | |
| -.97 bar to 140 bar | 0.01 bar | 690 bar | ||
| 700G27 | -12 psi to 300 psi -.83 bar to 20 bar |
0.01 psi 0.001 bar |
1200 psi 80 bar |
|
| 700G29 | -14 psi to 3000 psi | 0.1 psi | 10000 psi | |
| -.97 bar to 200 bar | 0.01 bar | 690 bar | ||
| 700G30 | -14 psi to 5000 psi | 0.1 psi | 10000 psi | |
| -.97 bar to 340 bar | 0.01 bar | 690 bar | ||
| 700G31 | -14 psi to 10000 psi | 1 psi | 20000 psi | |
| -.97 bar to 690 bar | 0.01 bar | 1035 bar | ||
| 700GA4 | 0 to 15 psia | 0.001 psi | ± 0.05 % of range | 60 psi |
| 0 to 1 bar absolute | 0.0001 bar | 4 bar | ||
| 700GA5 | 0 to 30 psia | 0.001 psi | 120 psi | |
| 0 to 2 bar absolute | 0.0001 bar | 8 bar | ||
| 700GA27 | 0 to 300 psia | 0.01 psi | 120 psi | |
| 0 to 20 bar absolute | 0.001 bar | 80 bar | ||
| 700RG05 | -14 to +30 psi -0.97 to +2 bar |
0.001 psi 0.0001 bar |
Positive pressure ± 0.04 % of reading ± .01 % of range, Vacuum ± 0.05 % of range |
90 psi 6 bar |
| 700RG06 | -12 to 100 psi | 0.01 psi | Positive pressure, ± 0.04 % of reading ± 01 % of range, Vacuum ± 0.1 % of range |
400 psi |
| -0.83 to 6.9 bar | 0.0001 bar | 27 bar | ||
| 700RG07 | -12 to 500 psi | 0.01 psi | 2000 psi | |
| -0.83 to 34 | 0.001 bar | 138 bar | ||
| 700RG08 | -14 to 1000 psi | 0.1 psi | 4000 psi | |
| -0.97 to 69 bar | 0.001 bar | 275 bar | ||
| 700RG29 | -14 to 3000 psi | 0.1 psi | 10000 psi | |
| -0.97 to 200 bar | 0.01 bar | 690 bar | ||
| 700RG30 | -14 to 5000 psi | 0.1 psi | 15000 psi | |
| -0.97 to 340 bar | 0.01 bar | 1035 bar | ||
| 700RG31 | -14 to 10000 psi | 1 psi | 20000 psi | |
| -0.97 to 690 bar | 0.01 bar | 1380 bar |
| 700R Ranges: Temperature Compensation 0 e°C to 50 °C (32 °F to 122 °F) to rated accuracy. For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C |
|
Media compatibility
|
|
| Mechanical specifications | |
| Dimensions (HxWxD) | 12.7 cm x 11.4 cm x 3.7 cm (5in x 4.5in x 1.5in) |
| Pressure connection | ¼ in NPT Male |
| Housing/Weight | Cast ZNAL 0.56 kg (1.22 lb) with holster |
| Display | 5 ½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100% |
| Power | Three AA alkaline batteries |
| Battery life | 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate |
Tech Specs
Process / Calibration/Pressure Calibration/Process Pressure Gauges Template |
|
|---|---|
| Type (Pressure) | Compound (Vacuum to Gauge), Gauge, Vacuum |
| Style (Press Gauge) | Digital Indicating |
| Accuracy (Digital-ASME B40.100 / B40.7 Grades) | 0.04% Reading + 0.01% F.S. Reference, 0.1% F.S. (Grade 4A) Precision Test |
| Units of Measure (Gauges) | bar, cmH2O, ftH2O, inH2O, inHg, kg/cm2, kPa, mbar, mmHg, MPa, Program Custom Units (digital), psi, Torr |
| Gauge Case Size | 4.5″ (114 mm) |
| Gauge Case Material | ZnAl Alloy |
| Wetted Part Material | Stainless Steel (SS) |
| Special Functions / Options (Press Gauge) | Adjustable Sample Rate (digital gauges), Damping Function (digital gauges), Data Logging, Min / Max Hold, PC Communications, Protective Rubber Boot, Temperature Compensated, Zero Function |
| Special Application Gauges | Hazardous Area Approval (digital gauges) |
| Power (Press Gauges) | Battery |
| Connection Location (Press Gauges) | Lower |
| Maximum Range Pressure (Gauges) | 500 psi |
| Minimum Range Pressure (Gauges) | -12 psi |
| # Digit Display | 5.5 |
| Counts | 100000 . |
| Process Connection | NPT (National Pipe Thread) |
Test Equipment General Attributes |
|
| Unique Features | Bright backlit display with 20 segment bar graph for easy viewing of pressure measurements. Rugged, durable design with protective holster. Media compatibility: Any liquids or gases compatible with 316 stainless steel |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| IP Rating | IP64 |
| Product Weight | 1.22 LBS |
| Product Height | 5 IN |
| Product Length | 1.46 IN |
| Product Width | 4.5 IN |
| Shipping Weight | 2.57 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.50 IN |
| Shipping Length | 10.25 IN |
