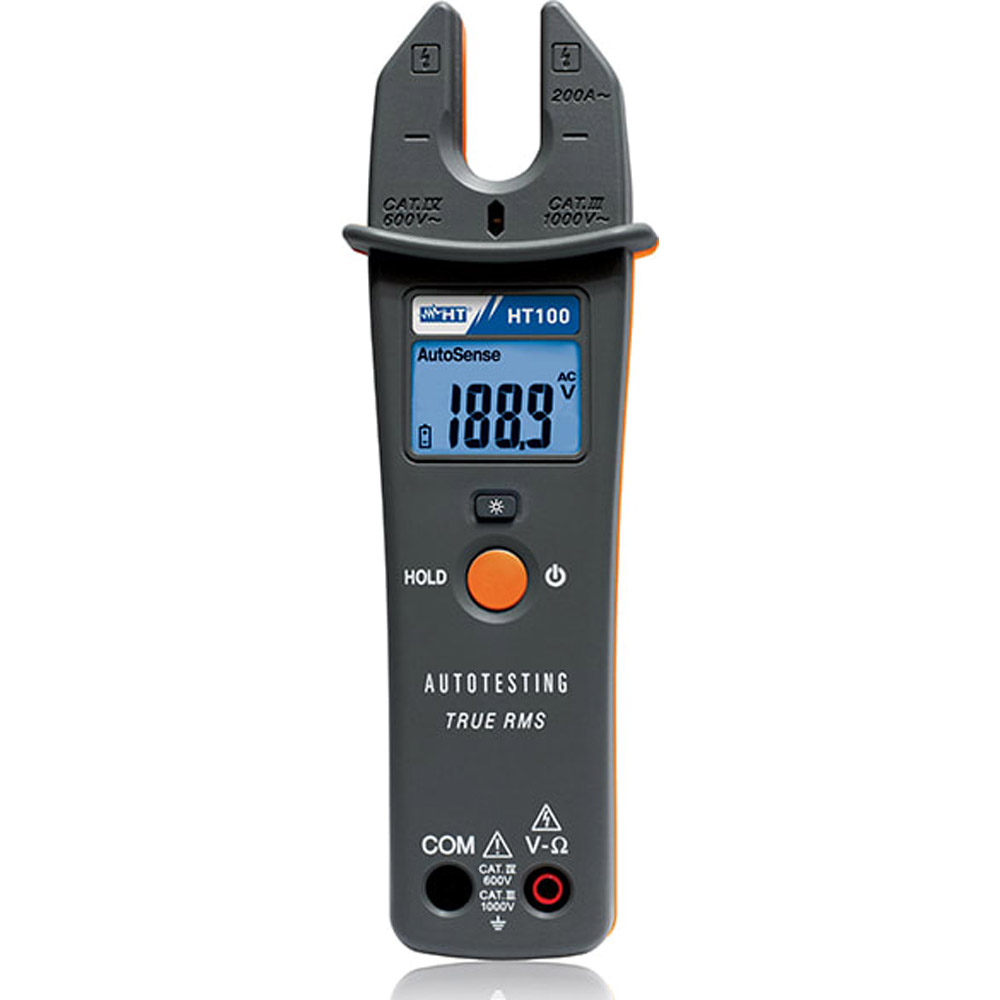

TRMS clamp meter with open jaws AC 200A.
Professional clamp meter HT100 is provided with automatic recognition of functions, or measuring AC current up to 200A and AC/DC voltage up to 1000V in TRMS to reach CAT IV 600V and CAT III 1000V in compliance with standard IEC/EN61010-1.
The clamp is provided with “open” jaws, with a wide display with 9999 measuring spots, “Voltsense” phase detector function, Data HOLD and backlight to allow for a simple reading even in poorly lit environments. HT100 also carries out measurements of Resistance, Continuity test and Diode test. The clamp is also provided with the auto power off function to preserve its own battery.
Manufacturer Specs
| Current measuring range | 200A |
| Supply | |
| Battery type | 2×1.5V batteries AAA LR03 |
| Low battery indicator available | Yes |
| Battery life | about 300 hours |
| Auto Power Off | about 20 minutes of idleness |
| Display | |
| Characteristics | 4 LCD (max 9999 counts), sign, decimal point and backlight |
| Sample rate | 2 times/sec |
| Conversion mode | TRMS |
| Climatic conditions | |
| Reference temperature | 23°C ± 5°C |
| Operating temperature | 0 ÷ 50°C |
| Operating humidity | <80%RH |
| Storage temperature | -20 ÷ 60 °C |
| Storage humidity | <80%RH |
| Mechanical characteristics | |
| Dimensions (L x W x H) | 193 x 54 x 31mm |
| Weight (including battery) | 280g |
| Max conductor size | 16mm |
| Reference guidelines | |
| Safety | IEC/EN61010-1, IEC/EN61010-2-032/-2-033 |
| EMC | IEC/EN61326-1 |
| Insulation | double insulation |
| Pollution degree | 2 |
| Max height of use | 2000m |
| Measurement category | CAT IV 600V, CAT III 1000V to ground |
| Normative | IEC / EN 61010-032, IEC / EN 61010-1, CE MARK, IEC / EN 61010-2, EMC: IEC/EN61326 |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 200 A |
| Maximum Conductor Size | 16 MM (0.630 IN) |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 280 GRAMS (0.617 LBS) |
| Product Height | 31 MM (1.22 IN) |
| Product Length | 193 MM (7.60 IN) |
| Product Width | 54 MM (2.13 IN) |
| HTS/Schedule B Number | 90303330 |
| ECCN Number | 8.0331E+12 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
