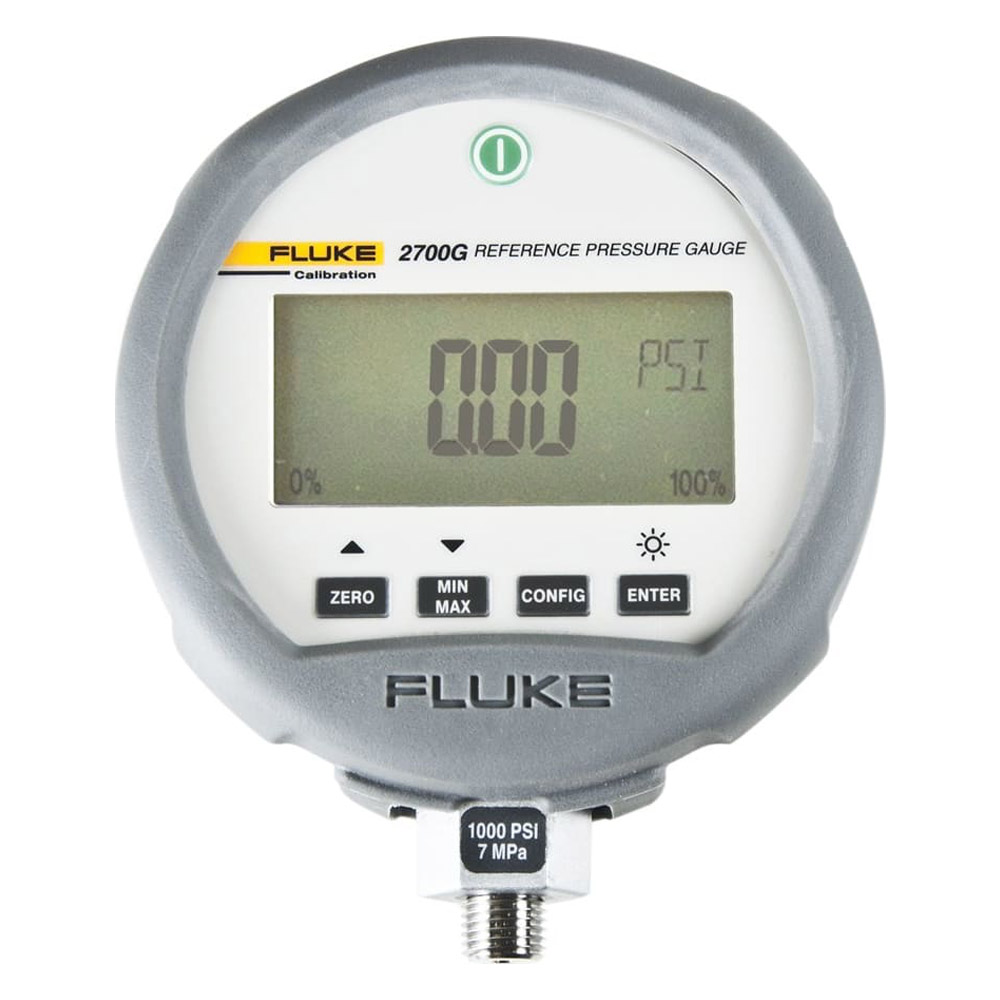

The 2700G Reference Pressure Gauges provide best-in-class measurement performance in a rugged, easy-to-use, economical package. Improved measurement accuracy allows it to be used for a wide variety of applications. It is ideal for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches. In addition, it can be used as a check standard or to provide process measurements with data logging.
- Precision pressure measurement from 100 kPa (15 psi, 1 bar) to 70 MPa (10 000 psi, 700 bar)
- Accuracy to 0.02% of full scale
- Easy-to-use, rugged construction for reliable performance
- Combine with the 700PTPK or 700HTPK pump kits for a complete portable pressure testing solution for up to 600 psi with the PTP-1 pneumatic pump and up to 10 000 psi with the HTP-2 hydraulic pump
- Combine with the P5510, P5513, P5514, or P5515 Comparison Test Pumps for a complete bench top pressure calibration solution
- Test port is 1/4 NPT Male. 1/4 BSP and M20 X 1.5 adaptors are included standard
- USB communications cable and universal power supply provided standard
- Can be used with COMPASS® for Pressure software for automated recording of pressure calibration data
Manufacturer Specs
| Model | Range | Resolution | Uncertainty (k=2) | Burst pressure |
Media compatibility |
| 2700G-BG100K | –15 psi to 15 psi –100 kPa to 100 kPa |
0.001 psi 0.0001 bar |
Positive pressure ± 0.02 % FS Vacuum ± 0.05 % FS |
45 psi 0.3 MPa |
Note 1 |
| 2700G-BG200K | –15 to 30 psi –100 kPa to 200 kPa |
0.001 psi 0.0001 bar |
90 psi 0.6 MPa |
Note 1 | |
| 2700G-BG700K | –12 psi to 100 psi –80 kPa to 700 kPa |
0.01 psi 0.0001 bar |
1000 psi 7 MPa |
Note 2 | |
| 2700G-BG2M | –12 psi to 300 psi –80 kPa to 2 MPa |
0.01 psi 0.001 bar |
2000 psi 14 MPa |
Note 2 | |
| 2700G-BG3.5M | –12 psi to 500 psi –80 kPa to 3.5 MPa |
0.01 psi 0.001 bar |
2000 psi 14 MPa |
Note 2 | |
| 2700G-BG7M | –12 to 1000 psi –80 kPa to 7 MPa |
0.1 psi 0.001 bar |
10 000 psi 70 MPa |
Note 2 | |
| 2700G-G20M | 0 to 3000 psi 0 to 20 MPa |
0.1 psi 0.01 bar |
10 000 psi 70 MPa |
Note 3 | |
| 2700G-G35M | 0 to 5000 psi 0 to 35 MPa |
0.1 psi 0.01 bar |
10 000 psi 70 MPa |
Note 3 | |
| 2700G-G70M | 0 to 10 000 psi 0 to 70 MPa |
1 psi 0.01 bar |
15 000 psi 100 MPa |
Note 3 | |
| Uncertainty includes linearity, hysteresis, repeatability, resolution, reference uncertainty, 1 year long term stability, and temperature effects from 18 to 28 °C. For temperatures from 0 °C to 18 °C and 28 °C to 50 °C, add 0.003% FS/°C |
|||||
| Media compatibility: Note 1: Any clean, dry non-corrosive gas Note 2: Any liquids or gases compatible with 316 stainless steel Note 3: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel |
|||||
| Mechanical specifications | |
| Dimensions (HxWxD) | 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in) |
| Pressure connection | ¼ in NPT Male |
| Housing/weight | Cast ZNAL/0.56 kg (1.22 lb) |
| Display | 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 % |
| Power | Three AA alkaline batteries |
| Battery life | 75 hours |
Tech Specs
Process / Calibration/Pressure Calibration/Process Pressure Gauges Template |
|
|---|---|
| Type (Pressure) | Compound (Vacuum to Gauge), Gauge, Vacuum |
| Style (Press Gauge) | Digital Indicating |
| Accuracy (Digital-ASME B40.100 / B40.7 Grades) | 0.02% F.S. Reference, 0.05% F.S. (Grade 5A) Precision Test |
| Units of Measure (Gauges) | bar, cmH2O, ftH2O, inH2O, inHg, kg/cm2, kPa, mbar, MPa, Program Custom Units (digital), psi, Torr |
| Gauge Case Size | 4.5″ (114 mm) |
| Gauge Case Material | ZnAl Alloy |
| Wetted Part Material | Stainless Steel (SS) |
| Special Functions / Options (Press Gauge) | Adjustable Sample Rate (digital gauges), Damping Function (digital gauges), Data Logging, Min / Max Hold, PC Communications, Protective Rubber Boot, Temperature Compensated, Zero Function |
| Power (Press Gauges) | Battery |
| Connection Location (Press Gauges) | Lower |
| Maximum Range Pressure (Gauges) | 100 psi |
| Minimum Range Pressure (Gauges) | -12 psi |
| # Digit Display | 5.5 |
| Counts | 100000 . |
| Process Connection | NPT (National Pipe Thread) |
Test Equipment General Attributes |
|
| Unique Features | Precision pressure measurement. Easy-to-use, rugged construction for reliable performance. Media Compatibility: Any liquids or gases compatible with 316 stainless steel NIST Calibration Certificate |
| Warranty | 1 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | USB |
| Product Weight | 1.22 LBS |
| Product Height | 5 IN |
| Product Length | 1.5 IN |
| Product Width | 4.5 IN |
| Shipping Weight | 2.86 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.5 IN |
| UPC | 095969623506 |
| Shipping Length | 10 IN |
| Shipping Width | 7.8 IN |
