Descripción

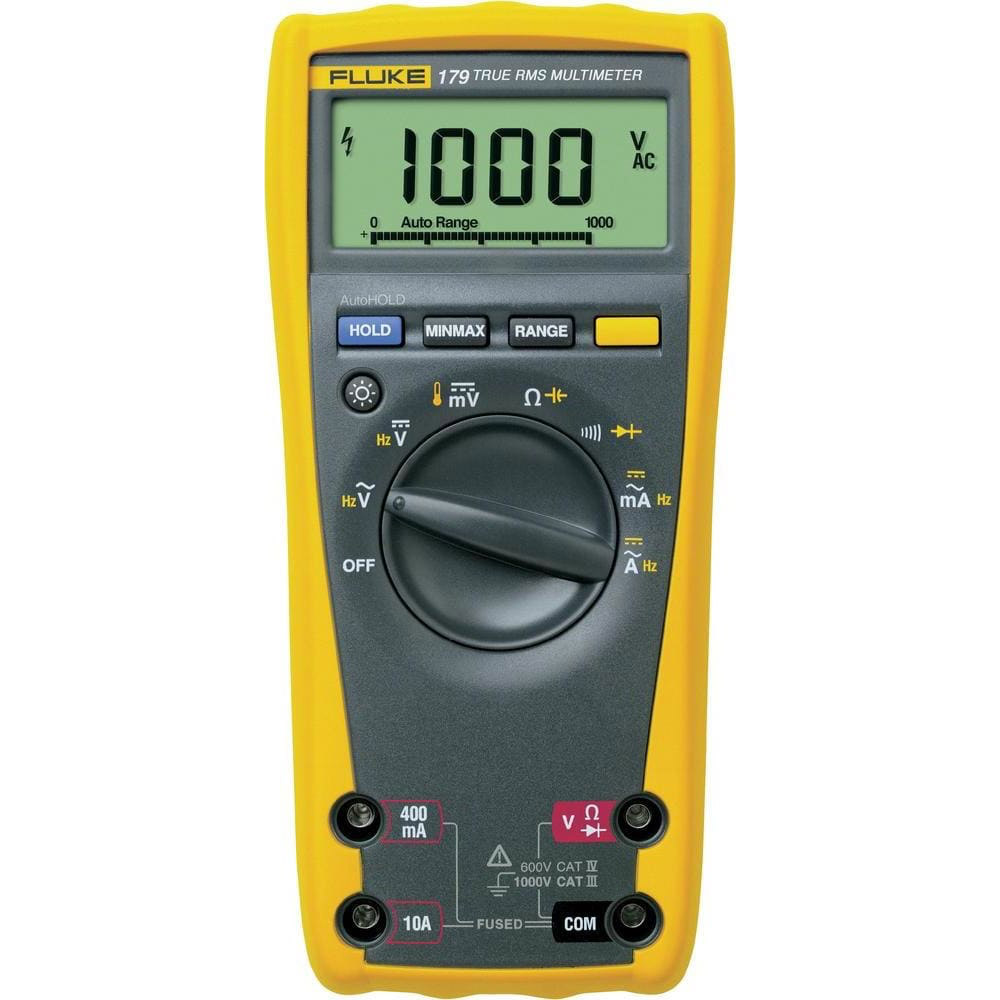

Fluke 179 Digital Multimeter 6000 Count DMM with Backlight & Temperature Measurement
- Bright backlight display to see the screen in almost any light
- Comes with the 80BK temp probe
- Measures temp in F and C
- IEC 1010 CAT IV 600V, CAT III 1000V. This means it is safe for use in more applications
The Fluke 179 Digital Multimeter is the top of the line offering in the popular Fluke 170 series. The overmolded case with built in probe holders also adds the protection to withstand a drop test up to one meter. Add to that the Limited lifetime warranty and you get one of the most durable, cost effective tools in your arsenal.
Smart, Safe, & Tough!
The 170 Series Fluke Digital Multimeters are all three. And, no other meters offer such performance at such a great price. Introducing Fluke 170 Series Digital Multimeters, Fluke’s smartest, safest and toughest meters inside and out.
The 170 series meters feature tougher body armor, 6000 count resolution display, auto and manual hold, Limited lifetime warranty and are designed to meet the IEC 1010 Safety Standards to CAT IV 600V and CAT III 1000V.
These meters are internally tough with fused current inputs, overvoltage protection and they even protect against measuring voltage if the knob is accidentally set on ohms. On the outside the rugged overmolded body armor case offers constant protection no matter how much you throw them around. For those with accuracy concerns the Fluke 170 series meters are more accurate than ever and have an easy-open battery door where the battery can be changed with out breaking the calibration seal, preventing unnecessary calibration charges.
For overvoltage protection against transient spikes up to 6 kV, and has the safety ratings to prove it. Protect yourself and your technicians working in dangerous environments like three-phase distribution systems such as: single phase commercial lighting, equipment in fixed installations like switch gear and polyphase motors, bus and feeder in industrial plants, lighting systems in larger buildings and appliance outlets with short connections to the service entrance.
Model Differences
(All other specifications are the same for each model)
| Features | Model | ||
| 175 | 177 | 179 | |
| Backlight | • | • | |
| Temperature Measurement | • | ||
| Basic DC Voltage Accuracy | 0.15% | 0.09% | 0.09% |
Manufacturer Specs
| Specifications | ||
| Voltage DC | Accuracy1 | ±(0.09% + 2) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Voltage AC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.1 mV | |
| Maximum | 1000 V | |
| Current DC | Accuracy1 | ±(1.0% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Current AC | Accuracy1 | ±(1.5% + 3) |
| Max. resolution | 0.01 mA | |
| Maximum | 10 A | |
| Resistance | Accuracy1 | ±(0.9% + 1) |
| Max. resolution | 0.1 Ω | |
| Maximum | 50 MΩ | |
| Capacitance | Accuracy1 | ±(1.2% + 2) |
| Max. resolution | 1 nF | |
| Maximum | 10,000 µF | |
| Frequency | Accuracy1 | ±(0.1% + 1) |
| Max. resolution | 0.01 Hz | |
| Maximum | 100 kHz | |
| Temperature | Accuracy1 | ±(1.0% + 10) |
| Max. resolution | 0.1°C | |
| Range | -40°C / 400°C | |
| 1. Accuracies are best accuracies for each function | ||
| Environmental Specifications | ||
| Operating temperature | -10°C to +50°C | |
| Storage temperature | -30°C to +60°C | |
| Humidity (without condensation) | 0% – 90% (0°C – 35°C) 0% – 70% (35°C – 50°C) |
|
| Safety Specifications | ||
| Overvoltage category | EN 61010–1 to 1000 V CAT III EN 61010–1 to 600 V CAT IV |
|
| Agency approvals | UL, CSA, TÜV listed and VDE Pending | |
| Mechanical and General Specifications | ||
| Size | 43 x 90 x 185 mm | |
| Weight | 420 g | |
| Warranty | Limited Lifetime | |
| Battery life | Alkaline ~200 hours typical, without backlight | |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | 0.09 |
| # Digit Display | 3.75 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Test Equipment General Attributes |
|
| Unique Features | •Manual and automatic ranging •Display Hold and Auto Hold •Frequency and capacitance measurements •Resistance, continuity and diode measurements •Temperature measurements (179) •Min-max-average recording •Closed case calibration through front panel •Ergonomic case with integrated protective holster |
| Warranty | 1 LIMITED LIFETIME (1 YEARS) |
| Warranty Details | Limited Lifetime Warranty |
| Safety Approval | CSA, UL |
| Product Weight | 420 GRAMS (0.926 LBS) |
| Product Height | 1.69 IN |
| Product Length | 7.28 IN |
| Product Width | 3.54 IN |
| Shipping Weight | 1.7 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.5 IN |
| Shipping Length | 10.98 IN |
| Shipping Width | 6.5 IN |
