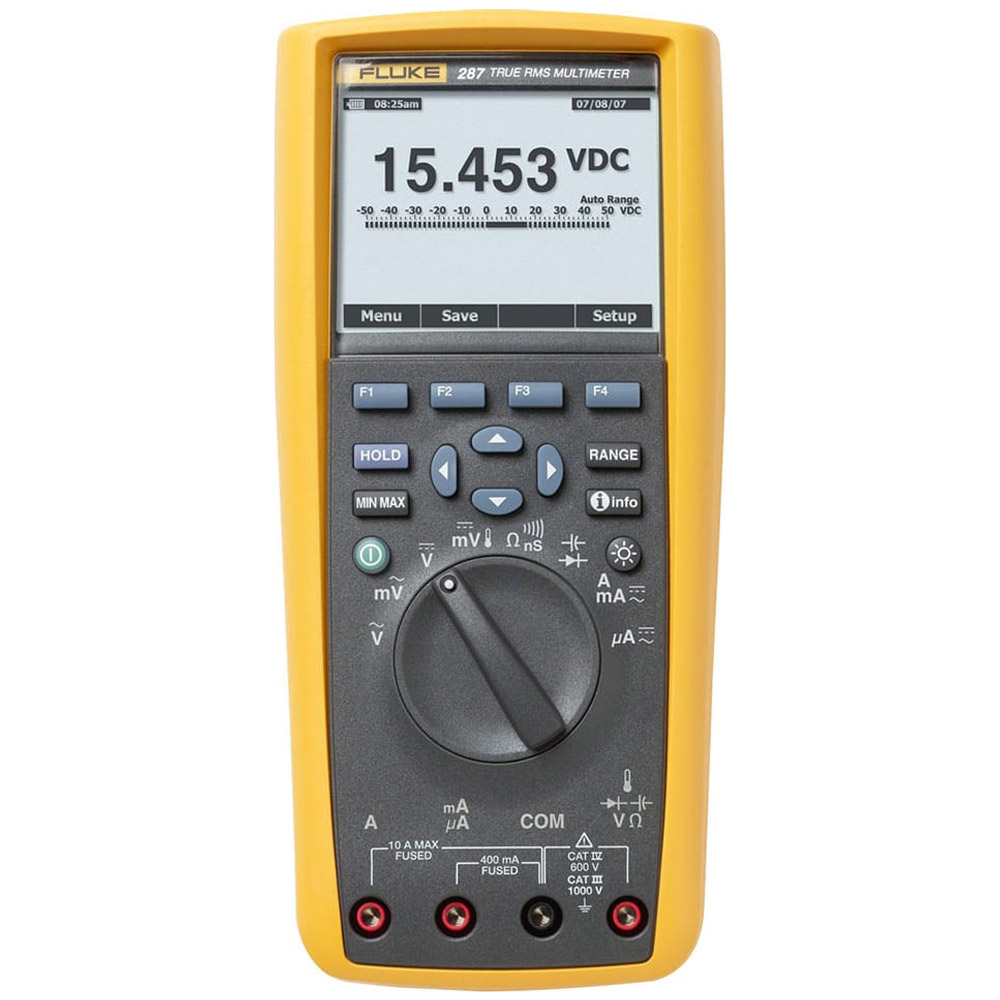

The Fluke 287 Handheld Multimeter is one of the most popular multimeters around. One reason for this popularity is the TrendCapture feature. A trend plot style graphical representation of a logged session that the meter has recorded, which is viewable right on the meter as soon as you complete your recording session. This means that after a 200 hour long recording session, which the 287 is capable of, there’s no need to download and wait to see data. You just view it right there, right then. A curser even allows you to zoom in on the data at 5X magnification! With multiple on-screen displays, a True-rms AC Bandwidth of 100kHz, and a minimum 100 hours battery life, you are more than prepared for the job.
Our Best Multimeter. – Now with Zoom Capabilities!
As promised, we continue to add capabilities to the 289 multimeter. Version 1.1 upgrade includes a variety of new features including a zooming ability to view and analyze TrendCapture data at five (5) times magnification.
The Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture quickly documents design performance and graphically displays what happened. Its’ unique logging and graphing capabilities mean you no longer need to download logged readings to a PC to detect a trend. The Fluke 287 packs more accuracy and convenience into a handheld multimeter than ever before, putting more problem solving power in your hands. It is the ultimate handheld tool for demanding applications that require high-precision.
Be sure to also check out the Fluke 289 True-rms Industrial Logging Multimeter with TrendCapture designed for industrial professionals.
Manufacturer Specs
| DC volts | 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.025% accuracy |
| AC volts | 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.4% accuracy (true-rms) |
| DC current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.15 % accuracy |
| AC current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.7% accuracy (true-rms) |
| Temperature (excluding probe) |
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) @ 1.0 % accuracy |
| Resistance | 50.000 W (289 only), 500.00 W, 5.0000 kW, 50.000 kW, 500.00 kW, 5.0000 MW, 50.00 MW, 500.0 MW @ 0.05 % accuracy |
| Capacitance | 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF @ 1.0 % accuracy |
| Frequency | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz @ 0.005 % + 1 accuracy |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.001 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.001 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 mA |
| Resolution DC Current | 0.01 A (10 mA) |
| Basic Accuracy V DC | 0.025% |
| # Digit Display | 4.5 |
| Counts | 50000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | Range: 1.00 % to 99.00 % Resolution: 0.01 % Accuracy: 0.2 % per kHz + 0.1 % |
Test Equipment General Attributes |
|
| Unique Features | Logging function with TrendCapture. Log data continuously for over 200 hours storing up to 10,000 readings. Low impedance
voltage function prevents false readings due to “ghost voltage.” Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives. |
| Warranty | 10 YEARS |
| Warranty Details | Limited lifetime warranty, Limited Lifetime Warranty |
| Safety Approval | CE, CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| Storage | Hard Drive |
| Product Weight | 1.92 LBS |
| Product Height | 2.38 IN |
| Product Length | 8.75 IN |
| Product Width | 4.03 IN |
| Shipping Weight | 2 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 7.87 IN |
| UPC | 095969417853 |
| Shipping Length | 16.14 IN |
| Shipping Width | 11.02 IN |
