Triplett ACDL200
- Datalog up to 256,000 measurements (single input) or 131,000 measurements (dual input)
- Dual channel recording of TRMS Voltage/Voltage or Current/Current or Voltage/Current
- 1 second to 24-hour selectable sampling rate
- Jaw size 0.5″ (12.7mm)
- Multifunction LCD display

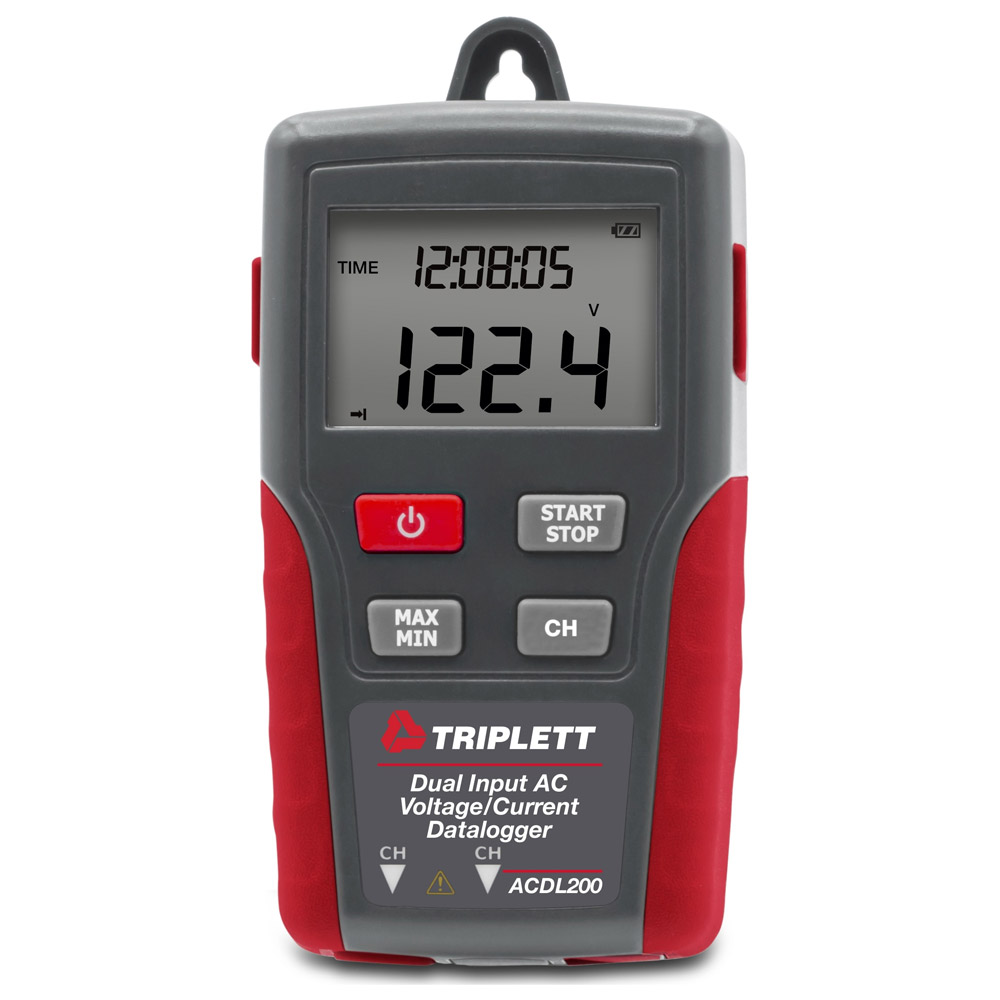

Dual Input True RMS AC Voltage/Current Datalogger
The Triplett Model ACDL200 Dual Input True RMS AC Voltage(600V) /Current (200A) Datalogger can datalog up to 131,000 measurements (dual input) or 256,000 measurements (single input) and provides dual channel recording of TRMS Voltage/Voltage or Current/Current or Voltage/Current using a 1 second to 24 hour selectable sampling rate. Features include a multifunction LCD display, real time clock, and Min/Max recalls highest and lowest readings.1 year warranty.
Manufacturer Specs
| Triplett ACDL200 Specifications | |
| Channels | Two, TRMS AC Voltage/Voltage |
| TRMS AC Current/Current | |
| TRMS AC Voltage/Current | |
| AC Voltage Range (40 – 1kHz) | 10V – 600.0V |
| Accuracy | +/-2% |
| +/-1V | |
| AC Current Range (50Hz / 60Hz) | 10A – 200.0A |
| Accuracy | +/-2% |
| +/-1A | |
| Datalogger | 256,000 Single Channel |
| 131,000 Dual Channel | |
| Sample Rate | Selectable 1 Second to 24 Hours |
| PC Interface | USB Port |
| Dimensions | 4.5″ x 2.5″ x 1.3″ |
| 114mm x 63mm x 34mm | |
| Weight | 8.7 oz |
| 248 g | |
Tech Specs
Dataloggers / Data Acquisition/Current Dataloggers Template |
|
|---|---|
| Max Current | 200 A |
| Min Current | 10 A |
| # Inputs/Channels | 2 |
| TRMS | Yes |
| Input Type | Current Output, Voltage Output |
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
| Max Voltage | 600 V |
| Min Voltage | 10 V |
Test Equipment General Attributes |
|
| Product Weight | 0.55 LBS |
| Product Height | 4.5 IN |
| Product Length | 1.3 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 0.63 LBS |
