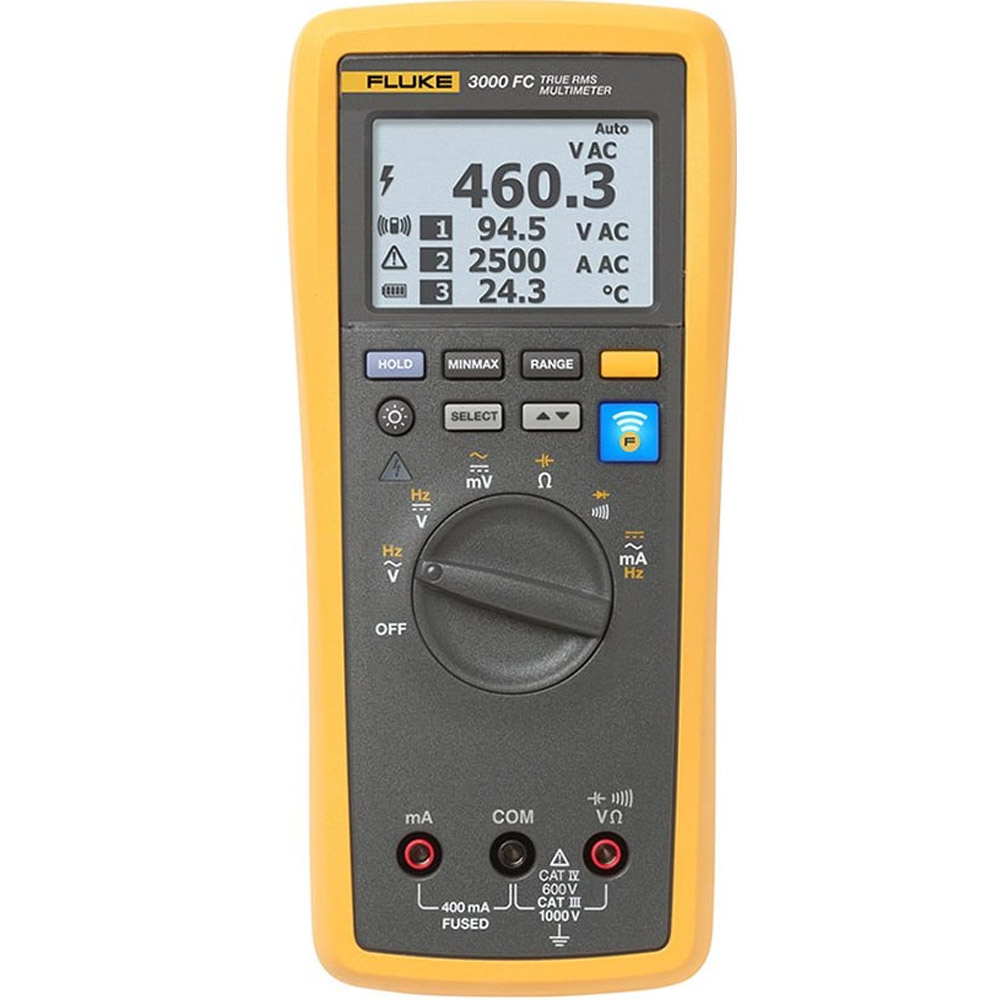

Start building tomorrow’s test tool system today with the Fluke 3000 FC Digital Multimeter.
The new Fluke Connect system of test tools communicates with the new Fluke Connect mobile app on your Android™ or iOS smart device, allowing you to share live measurements, monitor readings from safe distances, and get your job done easier than ever before. The wireless digital multimeter functions as the mobile hub, displaying readings from up to three module tools simultaneously from up to 20 meters away. The Fluke Connect modules also give you the flexibility to build your wireless test tool system how you want when you want.
The Fluke 3000 FC Wireless Test Tools are a team and the modules are team players. You connect any of the Fluke Connect™ Modules to your test point and then view the results on specific Fluke Connect enabled hardware or through Windows ® software on your PC—up to 20 meters (65.6 feet) away. Save time and conduct more tests with less trips.
Productivity
- Communicate with your iOS (4s and later) and Android™ (4.3 and up) devices with the new Fluke Connect mobile app
- Wireless technology allows connectivity between your phone, PC, and all Fluke Connect enabled test tools
- Let your team see what you see in an instant with ShareLive™ video call
- Save money and time by taking multiple measure-ments simultaneously
- Isolate intermittent events or record signal fluctuations without even being there using the log function on the modules
- View results on your computer with the PC Adapter
- Work with fewer interruptions by recording multiple sessions before downloading. Data is saved to a PC in .csv format (comma separated variable) file format for easy viewing at your convenience
- Capture readings at different intervals, with user-set recording intervals from one second to one hour
- Future proof your investment by adding functionality to the 3000 FC DMM when you need it
Convenience
- Send and communicate test data to your manager and coworkers to assess abnormal system response in seconds
- Have all asset test results at your fingertips after downloading to your PC for future asset performance tracking and reliability programs
- See multiple measurements on one screen at one time (DMM and three modules, Ti200/300/400 and five modules)
- No more writing data down. Capture up to 65000 sets of min/max/avg readings over single or multiple logging sessions using the recording capability. Each reading and session is time stamped
- Avoid awkward or uncomfortable measurement positions. Set up the measurement once, step back and read it as many times as you want, when you want
- View up to 6 live readings at once on the Fluke Connect mobile app or a PC to get a complete understanding of the situation
- Easily see backlit displays in dark or dimly lit work environments
- Choose auto or manual ranging
- Use the optional TPak Magnetic Hanger for even more hands-free working
- Integrated holster protects the meters, while probe holders keep accessories organized
Safety
- Be in multiple places at once, reducing the risk of arc flash by separating yourself from hazardous measurement situations
- Fluke 3000 FC meets Measurement Category 1000 V CAT III and Category IV 600 V safety standards: AC Current Clamp module and AC/DC Current Clamp module 600 V CAT III; AC Voltage Module, DC Voltage Module, and iFlex Clamp Meters 600 V CAT IV/1000 CAT III
Fluke Connect
See it. Save it. Share it. All the facts, right in the field.
Fluke Connect with ShareLive ™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android ™ and iOS and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Supported smart phones:
- Android™ 4.3 & up
- iPhone® 4s & later
Manufacturer Specs
| Fluke 3000 FC Series Wireless Multimeter |
| Detailed specifications (Not compatible with Fluke CNX test tools) For all specifications: accuracy is specified for one year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications take the form of ± ([ % of Reading ] + [ Number of least significant digits ]). |
| AC voltage | |||
| Range 1 | Resolution | Accuracy2,3,4 | |
| 45 Hz to 500 Hz | 500 Hz to 1 kHz | ||
| 600.0 mV | 0.1 mV | 1.0 % + 3 | 2.0 % + 3 |
| 6000 V | 0.001 V | 1.0 % + 3 | 2.0 % + 3 |
| 60.00 V | 0.01 V | 1.0 % + 3 | 2.0 % + 3 |
| 600.0 V | 0.1 V | 1.0 % + 3 | 2.0 % + 3 |
| 1000 V | 1 V | 1.0 % + 3 | 2.0 % + 3 |
| 1 All ac voltage ranges are specified from 1 % of range to 100 % of range. 2 Crest factor of = 3 at full scale up to 500 V, decreasing linearly to crest factor < 1.5 at 1000 V. 3 For non-sinusoidial waveforms, add ± (2 % of reading + 2 % full scale) typical, for crest factor up to 3. 4 Do not exceed 10 7 V-Hz. |
|||
| DC voltage, continuity, resistance, diode test and capacitance | |||
| Function | Range | Resolution | Accuracy |
| mV | 600.0 mV | 0.1 mV | 0.09 % + 2 |
| V | 6.000 V | 0.001 V | 0.09 % + 2 |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| 1000 V | 1 V | 0.15 % + 2 | |
| Ω | 600.0 Ω | 1 Ω | Meter beeps at < 25 Ω, beeper detects opens or shorts of 250 us or longer. |
| Diode test | 2.000 V | 0.001 V | 1 % + 2 |
| µF | 1000 nF | 1 nF | 1.2 % + 2 |
| 10.00 µF | 0.01 µF | ||
| 100.0 µF | 0.1 µF | ||
| 9999 µF 1 | 1 µF | 10 % typical | |
| 1 In the 9999 µF range for measurements to 1000 µF, the measurement accuracy is 1.2 % + 2. | |||
| AC and DC current | |||
| Function | Range 1 | Resolution | Accuracy |
| mA AC (45 Hz to 1 kHZ) | 60.00 mA | 0.01 mA | 1.5 % + 3 |
| 400.0 mA 3 | 0.1 mA | ||
| mA DC 2 | 60.00 mA | 0.01 mA | 0.5 % + 3 |
| 400.0 mA 3 | 0.1 mA | ||
| 1All ac current ranges are specified from 5 % of range to 100 % of range. 2Input burden voltage (typical): 400 mA input 2 mV/m 3400.0 mA accuracy specified up to 600 mA overload. |
|||
| Frequency | ||
| Range | Resolution | Accuracy 1 |
| 99.99 Hz | 0.01Hz | 0.1 % + 1 |
| 999.9 Hz | 0.1 Hz | |
| 9.999 kHz | 0.001 kHz | |
| 99.99 kHz | 0.01 kHz | |
| General specifications (Not compatible with Fluke CNX test tools) | |
| Maximum voltage between any terminal and earth ground | 1000 V dc or ac rms |
| Ω fuse protection from A inputs | 0.44 A (44/100 A, 440 mA), 1000 V FAST Fuse, Fluke specified part only |
| Display (LCD) | Update rate: 4/sec Votls, amps, ohms: 6000 counts Frequency: 10,000 counts Capacitance: 1,000 counts |
| Battery type | Three AA Alkaline batteries, NEDA 15A IEC LR6 |
| Battery life | 250 hours minimum |
| RF communications | 2.4 GHZ ISM Band |
| RF communication range | Open air, unobstructed: Up to 20m Obstructed, sheetrock wall: Up to 6.5m Obstructed, concrete wall, or steel electrical enclosure: Up to 3.5m |
| Temperature | Operating: -10 °C to 50 °C Storage: -40 °C to 60 °C |
| Temperature coefficient | 0.1 X (specified accuracy) /°C (<18 °C or >28 °C) |
| Relative humidity | 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C) |
| Altitude | Operating: 2,000 m Storage: 12,000 m |
| Electromagnetic compatibilty EMI, RFI, EMC, RF | EN 61326-1:2006, EN 61326-2-2:2006. ETSI EN 300 328 V1.7.1:2006, ETSI EN 300 489 V1.8.1:2008, FCC Part 15 Subpart C Sections 15.207, 15.209, 15.249, FCCID : FCC: T68-FDMMBLE IC: 6627A-FDMMBLE |
| Safety compliance | ANSI/ISA 61010-1 / (82.02.01): 3 rd edition CAN/CSA-C22.2 No 61010-1-12: 3 rd edition UL 61010-1: 3 rd edition IEC/EN 61010-1:2010 |
| Certifications | CSA, FCC, CE |
| Ingress Protection (IP) rating | IP54 |
| Pollution Degree | 2 |
| Size (H x W x L) | 4.75 cm x 9.3 cm x 20.7 cm (1.87 in x 3.68 in x 8.14 in) |
| Weight | 340 g (12 oz) |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 400 mA (0.4 A) |
| Minimum Current AC | 0.01 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 400 mA (0.4 A) |
| Minimum Current DC | 0.01 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | 0.09 % + 2 |
| Backlight | Yes |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
Test Equipment General Attributes |
|
| Safety Approval | CE, CSA |
| IP Rating | IP54 |
| Product Weight | 340 GRAMS (0.750 LBS) |
| Product Height | 1.87 IN |
| Product Length | 8.17 IN |
| Product Width | 3.68 IN |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | 3A992 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.00 IN |
| UPC | 095969692052 |
| Shipping Length | 9.50 IN |
| Shipping Width | 5.50 IN |
