Accuracy and diagnostic functions for maximum industrial productivity.
Fluke 80 Series V has replaced series 80 Series III.
The New 80 Series consists of the following models:

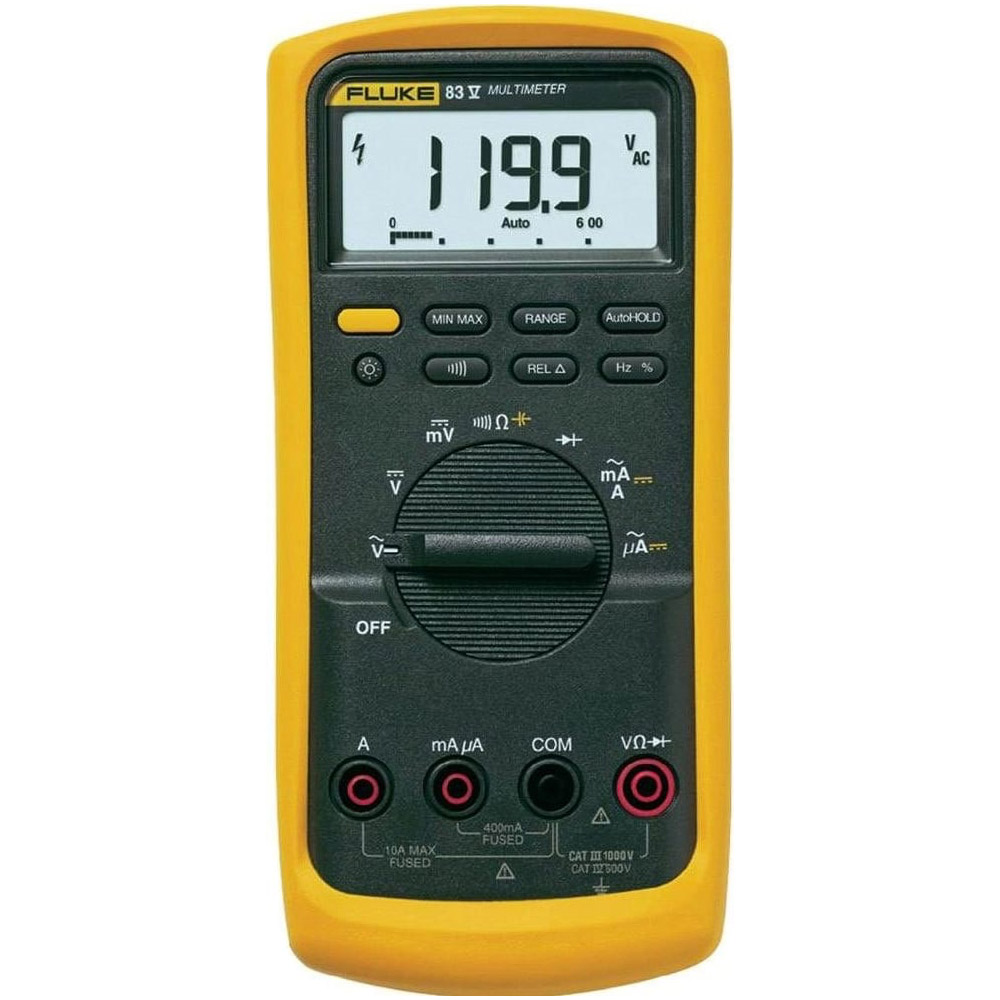

- Fluke 83V Industrial DMM
- Fluke 87V True RMS Industrial DMM
- Fluke 87-5E/2 Industrial Electricians Combo Kit (Replaces 87 V/E)
The new 80 series V are independently tested to comply with the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V/CAT III 1000V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.
New features for maximum productivity.
- Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
- Large digit display with bright, two-level backlight makes the 80 Series V significantly easier to read than older models
Electrical safety.
All inputs are protected to Category III, 1000 V and Category IV 600 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.
Measures:
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 µF capacitance range
- Frequency to 200 kHz and % duty cycle
Manufacturer Specs
| DCV | |
| Maximum Voltage | 1000V |
| Accuracy | ±(0.1%+1) |
| Maximum Resolution | 100 μV |
| ACV | |
| Maximum Voltage | 1000V |
| Accuracy | ±(0.5%+2) |
| AC Bandwidth | 5kHz *with low pass filter; 3db @ 1kHz |
| Maximum Resolution | 0.1 mV |
| DC Current | |
| Maximum Amps | 10A |
| Amps Accuracy | ±(0.4%+2) |
| Maximum Resolution | 0.01 mA |
| AC Current | |
| Maximum Amps | 10A |
| Amps Accuracy | ±(1.2%+2) |
| Maximum Resolution | 0.1 μA |
| Resistance | |
| Maximum Resistance | 50 MΩ |
| Accuracy | ±(0.4%+1) |
| Maximum Resolution | 0.1Ω |
| Capacitance | |
| Maximum Capacitance | 9,999 μF |
| Accuracy | ±(1%+2) |
| Maximum Resolution | 0.01 nF |
| Frequency | |
| Maximum Frequency | 200 KHz |
| Accuracy | ±(0.005%+1) |
| Maximum Resolution | 0.01 Hz |
| Duty Cycle | |
| Maximum Duty Cycle | 99.9 % |
| Accuracy | ±(0.2 per KHz +0.1%) |
| Maximum Resolution | 0.1 % |
| Temperature Measurement | |
| 87 V | -200.0°C – 1090°C |
| 87 V/E | -328.0°F – 1994.0°F, 1.0% excluding probe |
| 80 BK Temperature Probe | |
| 87 V | -40°C – 260°C |
| 87 V/E | -40°F – 500°F, 2.2°C or 2% whichever is greater |
| Conductance | |
| Maximum Conductance | 60.00 nS |
| Accuracy | ±(1.0%+10) |
| Maximum Resolution | 0.01 nS |
| Operating Range | |
| Operating Temperature | -20°C – 55°C |
| Storage Temperature | -40°C – 60°C |
| Physical | |
| Dimensions | 5.2 cm x 9.8cm x 20.1 cm (2.06” x 3.86” x 7.93”) |
| Weight | 624 g (22 oz.) |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 100 uV (0.1 mV) |
| Maximum Current AC | 10 A |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 10 A |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ±(0.1% + 1) |
| # Digit Display | 3.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
Test Equipment General Attributes |
|
| Product Height | 3.50 IN |
| Product Length | 9.75 IN |
| Product Width | 6.25 IN |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.50 IN |
| Shipping Length | 9.75 IN |
| Shipping Width | 6.25 IN |
