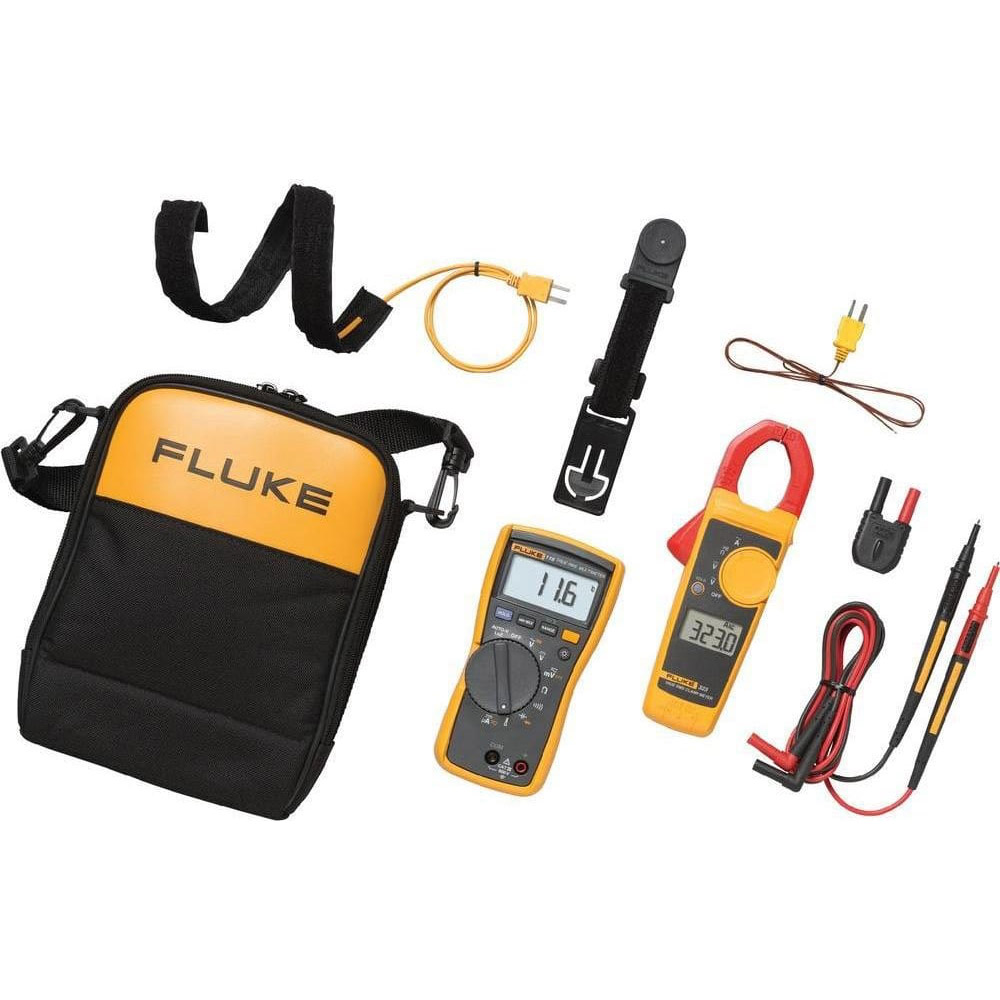

Fluke 323 True-rms Clamp Meter
True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
The Fluke 323, 324 and 325 Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.
Fluke 116 HVAC Multimeter with Temperature and Microamps
If you are a HVAC professional looking for a powerful yet affordable troubleshooting tool, look no further than the Fluke 116 with built in thermometer. The 6,000 count digital display updates 4 times per second for accurate, timely readings. With 28% larger digits and a large white LED backlight you don’t need to worry about low light conditions. The 116 lets you enjoy up to 400 hours battery life with the installed 9 volt battery. Get your Fluke 116 today and with the 3 year warranty, you are ready to test for years to come.
Designed by electricians. Engineered by Fluke.
Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.
Manufacturer Specs
Fluke 323 True-rms Clamp Meter
| Specifications | |
| AC current | |
| Range | – |
| Accuracy | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
| DC current | |
| Range | – |
| Accuracy | – |
| AC voltage | |
| Range | 600.0 V |
| Accuracy | 1.5 % ± 5 digits |
| DC voltage | |
| Range | 600.0 V |
| Accuracy | 1.0 % ± 5 digits |
| Resistance | |
| Range | 400.0 Ω / 4000 Ω |
| Accuracy | 1 % ± 5 digits |
| Continuity | = 7 Ω |
| Capacitance | – |
| Frequency | – |
| AC response | True-rms |
| Backlight | – |
| Data hold | Yes |
| Contact temperature | – |
| Min/Max | – |
| Size | |
| H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) |
| Weight | 265 g |
| Category rating | CAT III 600 V CAT IV 300 V |
Fluke 116 HVAC Multimeter
| Maximum voltage between any terminal and earth ground | 600 V |
| Surge protection | 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
| Display | Digital: 6,000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating temperature | -10 °C to + 50 °C |
| Storage temperature | -40 °C to + 60 °C |
| Battery | 9 volt Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| DC millivolts | 600.0 mV | 0.1 mV | 2.0 % + 3 |
| DC volts | 6.000 V | 0.001 V | |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Auto volts | 600.0 V | 0.1 V | 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz) |
| AC millivolts1 true-rms | 600.0 mV | 0.1 mV | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| AC volts1 true-rms | 6.000 V | 0.001 V | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Continuity | 600 Ω | 1 Ω | Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 µs or longer. |
| Ohms | 600.0 Ω | 0.1 Ω | 0.9 % + 2 |
| 6.000 kΩ | 0.001 kΩ | 0.9 % + 1 | |
| 60.00 kΩ | 0.01 kΩ | ||
| 600.0 kΩ | 0.1 kΩ | ||
| 6.000 MΩ | 0.001 MΩ | ||
| 40.00 MΩ | 0.01 MΩ | 1.5 % + 2 | |
| Diode test | 2.000 V | 0.001 V | 0.9 % + 2 |
| Capacitance | 1000 nF | 1 nF | 1.9 % + 2 |
| 10.00 µF | 0.01 µF | ||
| 100.0 µF | 0.1 µF | ||
| 9999 µF | 1 µF | ||
| 100 µF to 1000 µF | 1.9 % + 2 | ||
| > 1000 µF | 5 % + 20 | ||
| Lo-Z capacitance | 1 nF to 500 µF | 10 % + 2 typical | |
| Temperature2 (Type-K thermocouple) | -40 °C to 400 °C | 0.1 °C | 1 % + 102 |
| -40 °F to 752 °F | 0.2 °F | 1 % + 182 | |
| AC µamps true-rms (45 Hz to 500 Hz) |
600.0 µA | 0.1 µA | 1.5 % + 3 (2.5 % + 3 > 500 Hz) |
| DC µamps | 600.0 µA | 0.1 µA | 1.0 % + 2 |
| Hz (V or A input)3 | 99.99 Hz | 0.01 Hz | 0.1 |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Resistance | Yes |
| Capacitance | Yes |
Multimeters Template |
|
| Style | Hand-Held |
| Measures AC V | Yes |
| Backlight | Yes |
| CAT Rating | IV |
| CAT Voltage | 300 V, 600 V |
Test Equipment General Attributes |
|
| Product Height | 3.75 IN |
| Product Length | 12.25 IN |
| Product Width | 11.00 IN |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Country of Origin | Singapore |
| Shipping Height | 3.75 IN |
| Shipping Length | 12.25 IN |
| Shipping Width | 11.00 IN |
