Descripción

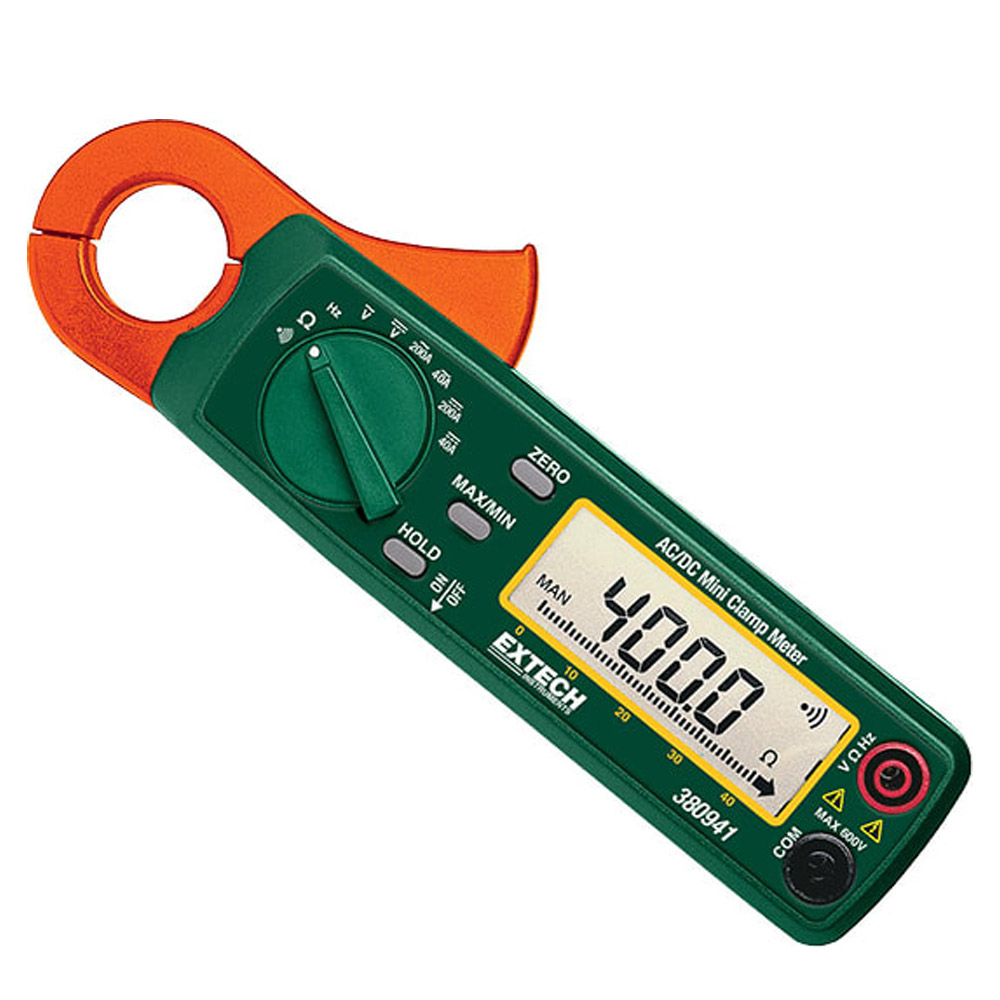

Extech 380941-NIST
- Display counts: 4000 count LCD
- Jaw size/Cable size: 0.9″ (23mm); 4/0 AWG
- AC Voltage (Max Res.): 400V (0.1V)
- DC Voltage (Max Res.): 400V (0.1V)
- Resistance (Max Res.): 400Ω (0.1Ω)
- Frequency (Max Res.): 100kHz (0.001Hz)
- Diode/Continuity: Continuity
200A AC/DC Mini Clamp Meter w/NIST
High resolution mini clamp with Voltage, Frequency, and Resistance
The compact Extech 380941 is a 200 Amp mini AC/DC clamp meter with a small diameter jaw designed to reach in small areas while providing 10mA resolution (DC) and very low-current sensitivity. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. The 380941 has a CAT III 300-Volt safety rating and a one year warranty. Comes with batteries and manual.
Manufacturer Specs
| General Specifications | |
| Display | 3-3/4 (4000 count) Digit LCD with 40 segment bargraph |
| Functions | ACA, DCA, ACV, DCV, Resistance, Frequency, Continuity |
| Polarity | “-“ indicates negative polarity |
| Current sensor | Hall effect sensor type |
| Overload indication | Left blinking digit |
| DCA zero adjust | One touch zero key |
| Display rate | 2 readings/second (20 readings/second for bargraph) |
| Battery | Two 1.5V AA batteries |
| Operating temp. | 4°F to 122°F (-10°C to 50°C) |
| Operating Humidity | < 85% RH |
| Power consumption | Approximately 10mA DC |
| Weight | 8 oz. (225g) including battery |
| Dimensions | 7 x 1.75 x 1.25” (178 x 45 x 32mm) (HWD) |
| Jaw opening | 0.9” (23mm) |
| Standards | IEC 1010 Category III 300V, Category II 600V |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 200 A |
| Maximum Current DC | 40 A |
| Maximum Voltage AC | 400 V |
| Maximum Voltage DC | 400 V |
| Maximum Conductor Size | 0.9 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Provide High Accuracy and Resolution, One Touch Auto Zero for DCA Measurements, Data Hold Display |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Additional Info/Comments | Optional 3-prong AC Line Separator Enables Safe and Easy Measurements on Power Cables with Molded Plugs |
| Safety Approval | CE, UL |
| Product Weight | 8 OUNCES (0.5 LBS) |
| Product Height | 1.25 IN |
| Product Length | 7 IN |
| Product Width | 1.75 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
