Name: Multímetro de electricista Fluke IB117K and Insulated Hand Tools Starter Kit
SKU: ME77-MHFL-IB117K
Price: 17073.50 MXN
Availability: InStock

Descripción

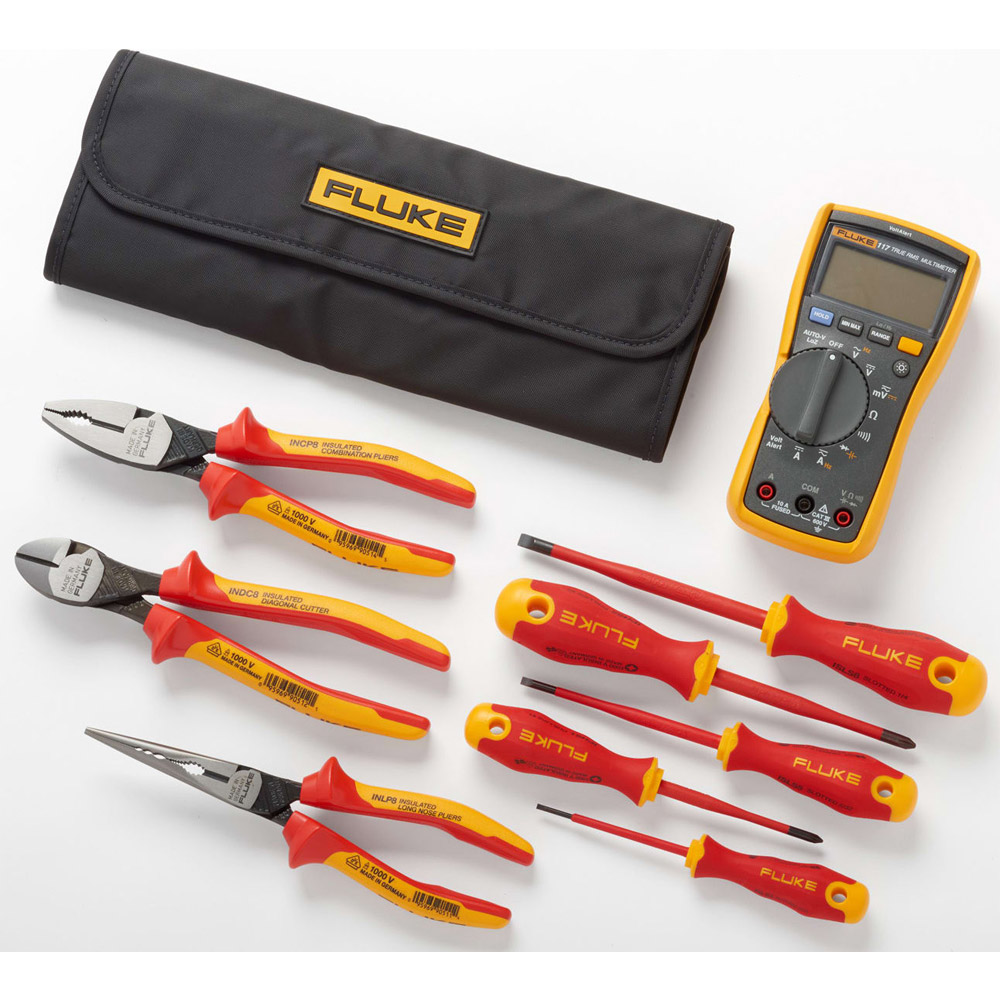

Fluke IB117K Electricians Multimeter and Insulated Hand Tools Starter Kit

Accurate, easy-to-use multimeter with integrated VoltAlert™ technology for non-contact voltage detection
Features AutoVolt automatic AC/DC voltage selection
Provides low input impedance to help prevent false readings due to ghost voltage

The Fluke 117 Electrician’s Multimeter combined with the insulated hand tools starter kit, the most often used screwdrivers, pliers and cutters.

The Fluke 117 Digital Multimeter is a true-rms meter with integrated non-contact voltage detection to help get the job done faster. With Auto Volts and LoZ functions that help prevent false readings caused by ghost voltage, the Fluke 117 is a great choice for electricians. The Fluke 117 provides Min/Max/Average readings and measures frequency and capacitance.

For the most demanding of situations, the Fluke 117 hand held digital multimeter is the choice for you. It’s no coincidence that professionals testing in commercial settings, hospitals, and schools look to this meter. The 6,000 count display updates 4 times per second, and has a large white LED backlight for low light conditions. The bar graph has 33 segments and updates 32 times per second. The installed 9V battery averages 400 hours without use of backlight. With VoltAlert technology for non-contact voltage detection and a 3 year warranty, the 117 will be in your arsenal for a long time.

Designed by electricians. Engineered by Fluke.
Compact true-rms meter for commercial applications. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.

Also check out the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter, and the Fluke 116 HVAC Multimeter with Temperature and Microamps.

Comparison Chart.

	Current					New
Basic features	110	111	112	12	16	114	115	116	117
True RMS readings	AC	AC	AC			AC	AC	AC	AC
Basic DC accuracy	0.7%	0.7%	0.7%	0.9%	0.9%	0.5%	0.5%	0.5%	0.5%
Digits	3-1/2	3-1/2	3-1/2	3-1/2	3-1/2	3-1/2	3-1/2	3-1/2	3-1/2
Counts	6000	6000	6000	4000	4000	6000	6000	6000	6000
Measurements
Voltage AC/DC	600V	600V	600V	600V	600V	600V	600V	600V	600V
Current AC/DC		10A	10A		200µA		10A	600µA	10A
Resistance	40MO	40MO	40MO	40MO	40MO	40MO	40MO	40MO	40MO
Frequency	50kHz	50kHz	50kHz				50kHz	50kHz	50kHz
Capacitance	10mF	10mF	10mF	10mF	10mF		10mF	10mF	10mF
Temperature					+400°C			+400°C
Display
Analog bargraph	•	•	•			•	•	•	•
Backlight			•			•	•	•	•
Data storage and exchange
Min-Max recording	•	•	•		•	•	•	•	•
Display Hold/Auto (Touch) Hold	•	•	•			•	•	•	•
Other features
Automatic selection, VChek				•	•
Automatic selection, LoZ						•		•	•
Volt Alert, Non Contact ac voltage detector									•

Manufacturer Specs

Fluke 117 Electricians Multimeter Specifications

Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.

The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] )

Maximum voltage between any terminal and earth ground	600 V
Surge protection	6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2
Fuse for A input	11 A, 1000 V FAST Fuse (Fluke PN 803293)
Display	Digital: 6,000 counts, updates 4/sec
Bar graph	33 segments, updates 32/sec
Operating temperature	-10 °C to + 50 °C
Storage temperature	-40 °C to + 60 °C
Battery	9 volt Alkaline, NEDA 1604A/IEC 6LR61
Battery life	400 hours typical, without backlight

Measurement	Range	Resolution	Accuracy ± ([% of reading] + [counts])
DC millivolts	600.0 mV	0.1 mV	0.5 % + 2
DC volts	6.000 V	0.001 V	0.5 % + 2
	60.00 V	0.01 V
	600.0 V	0.1 V
Auto volts	600.0 V	0.1 V	2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz)
AC millivolts¹ true-rms	600.0 mV	0.1 mV	1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
AC volts¹ true-rms	6.000 V	0.001 V	1.0 % + 3 (45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz)
	60.00 V	0.01 V
	600.0 V	0.1 V
Continuity	600Ω	1Ω	Beeper on < 20Ω off > 250Ω; detects opens or shorts of 500μs or longer.
Ohms	600.0Ω	0.1Ω	0.9 % + 2
	6.000 kΩ	0.001 kΩ	0.9 % + 1
	60.00 kΩ	0.01 kΩ
	600.0kΩ	0.1kΩ
	6.000MΩ	0.001MΩ
	40.00MΩ	0.01MΩ	1.5 % + 2
Diode test	2.000 V	0.001 V	0.9 % + 2
Capacitance	1000 nF	1 nF	1.9 % + 2
	10.00 µF	0.01 µF
	100.0 µF	0.1 µF
	9999 µF	1 µF
	100 µF to 1000 µF		1.9 % + 2
	> 1000 µF		5 % + 20
Lo-Z capacitance	1 nF to 500 µF		10 % + 2 typical
AC amps true-rms (45 Hz to 500 Hz)	6.000 A	0.001 A	1.5 % + 3
	10.00 A	0.01 A	1.5 % + 3
	20 A overload for 30 seconds max.
DC amps	6.000 A	0.001 A	1.0 % + 3
	10.00 A	0.01 A	1.0 % + 3
	20 A overload for 30 seconds max.
Hz (V or A input)²	99.99 Hz	0.01 Hz	0.1 % + 2
	999.9 Hz	0.1 Hz
	9.999 kHz	0.001 kHz
	50.00 kHz	0.01 kHz
Notes: 1: All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non- zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of = 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. 2: Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current.

Tech Specs

Multimeters Template
Style	Hand-Held
Measures AC V	Yes
Measures DC V	Yes
Measures AC A	Yes
Measures DC A	Yes
True RMS	Yes
Maximum Voltage AC	600 V
Resolution AC Volts	0.1 mV
Maximum Voltage DC	600 V
Resolution DC Volts	0.1 mV
Maximum Current AC	10.0 A
Minimum Current AC	0.001 A (1 mA)
Resolution AC Current	0.001 A (1 mA)
Maximum Current DC	10.00 A
Minimum Current DC	0.001 A (1 mA)
Resolution DC Current	0.001 A (1 mA)
Basic Accuracy V DC	0.5%
# Digit Display	3.5
Counts	6000 .
Backlight	Yes
Manual/Autoranging	Both
Decibels	No
Resistance	Yes
Frequency	Yes
Capacitance	Yes
Temperature	No
Diode Testing	Yes
CAT Rating	III
CAT Voltage	600 V
Intrinsically Safe	No
Peak Hold	No
Overload Protector	Yes
Kelvin 4-Wire Measurement Capability	No
Wireless Display	No
Data Hold	Yes
Low-Pass Filter	No
Test Equipment General Attributes
Unique Features	•VoltAlert™ technology for non-contact voltage detection •AutoVolt automatic ac/dc voltage selection •Low input impedance: helps prevent false readings due to ghost voltage •Large white LED backlight to work in poorly lit areas •True-rms for accurate measurements on non-linear loads •Measures 10 A (20 A overload for 30-seconds) •Resistance, continuity, frequency and capacitance •Min/Max/Average with elapsed time to record signal fluctuations •Compact ergonomic design for one-handed operation •Compatible with optional magnetic hanger (ToolPak™) for hands free operation •CAT III 600 V safety rated
Warranty	3 YEARS
Safety Approval	CSA, UL
Interfaces I/O	Analog Output, Analog Input
IP Rating	IP42
Product Weight	1.34 LBS
Product Height	1.82 IN
Product Length	6.57 IN
Product Width	3.31 IN
Shipping Weight	1.34 LBS
Data Logging	No
HTS/Schedule B Number	9030310000
ECCN Number	EAR99
Calibration Included	Factory Calibration
Battery Type	9v
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	5.91 IN
UPC	095969324205
Shipping Length	12.99 IN
Shipping Width	11.02 IN

Descargar Ficha técnica
