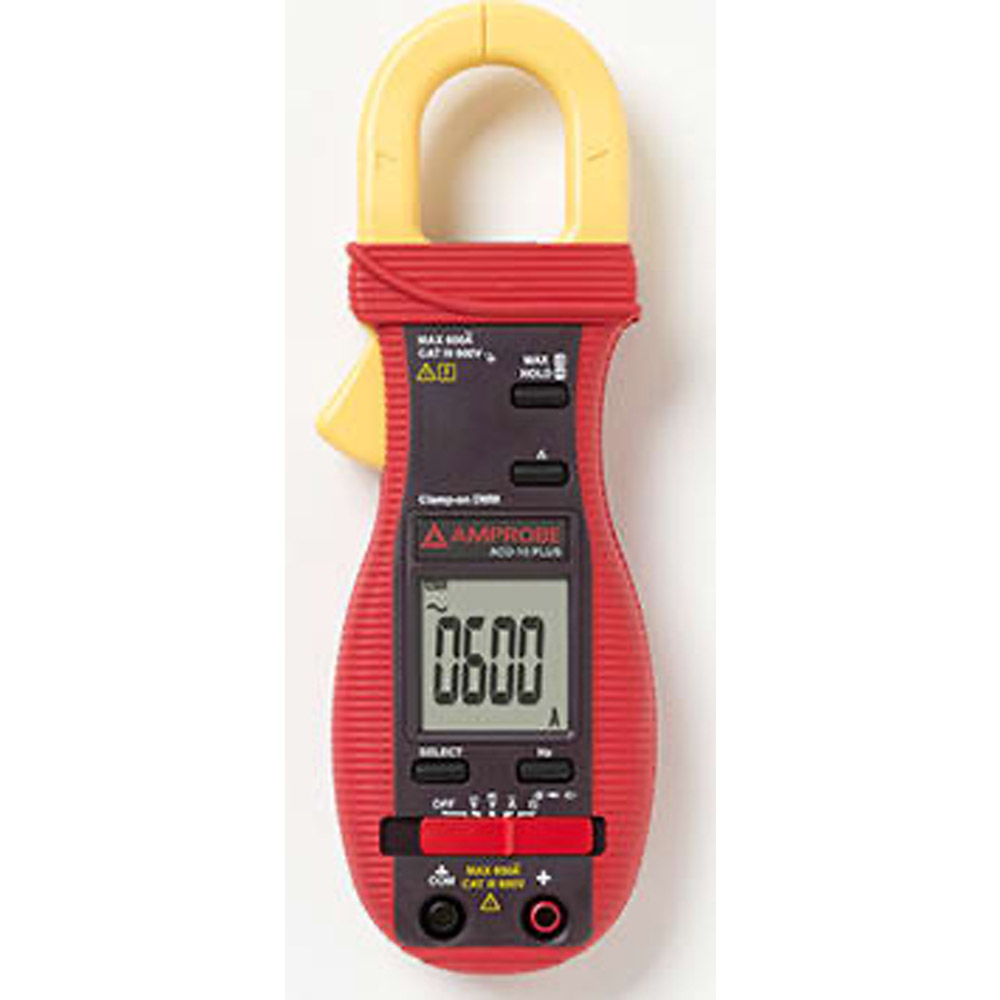

Amprobe ACD-10 PLUS
- Measures AC and DC voltage to 600V and AC current to 600A to handle residential/commercial and small industrial applications
- Thin jaws, only 10mm (0.4″) thick making it easier to maneuver between tightly packed conductors
- Measures frequency, resistance, and capacitance
- Features continuity beeper to quickly find opens and shorts
600A Clamp-On Multimeter
The Amprobe ACD-10 PLUS clamp multimeter has thinner jaws than standard digital clamp multimeters (only 0.4″/10mm thick) allowing access to tight measurement areas and still handles conductors up to 1.0 (25mm).
It combines the convenience and flexibility of an AC/DC current clamp meter with the most frequently used digital multimeter functions, including ac/dc current and voltage, capacitance, and frequency.
Manufacturer Specs
| Display | 3-3/4 digits 4000 counts LCD display |
| Update Rate | 3 per second nominal |
| Polarity | Automatic |
| Operating Temperature | 0 °C to 40 °C; < 80% RH for temperature up to 31 °C decreasing linearly to 50% RH at 40 °C |
| Altitude | Operating below 2000m; Indoor use |
| Storage Temperature | -20 °C to 60 °C, < 80% RH (with battery removed) |
| Temperature Coefficient | nominal 0.15 x (specified accuracy)/°C @(0 °C ~ 18 °C or 28 °C ~ 40 °C) |
| Low Battery | Below approx. 2.4V |
| Power Supply | 3V coin battery IEC-CR2032 |
| Power Consumption | 2.8 mA typical except that 3.3 mA typical for ACA function |
| APO Timing | Idle for 30 minutes |
| APO Consumption | 5 μA typical |
| Dimension | 190 x 63 x 32 mm (7.4 x 2.5 x 1.3 in) |
| Weight | 139 gm approx |
| Jaw opening & Conductor diameter | max 26 mm |
| Special Features | 30ms Max Hold; Data Hold; Relative Zero mode |
| Safety | Meets EN61010-2-032, UL61010B-2-032, IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. CAT III-600 Volts ac & dc; Pollution degree – 2 |
| EMC | Conforms to EN61326-1. |
| This product complies with requirements of the following European Community Directives; 89/ 336/ EEC (Electromagnetic Compatibility) and 73/ 23/ EEC (Low Voltage) as amended by 93/ 68/ EEC (CE Marking). However, electrical noise or intense electromagnetic fields in the vicinity of the equipment may disturb the measurement circuit. Measuring instruments will also respond to unwanted signals that may be present within the measurement circuit. Users should exercise care and take appropriate precautions to avoid misleading results when making measurements in the presence of electronic interference. | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 600 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.02 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | Data Hold, Relative Zero Mode, 10mm Thick Jaws, Hold & Maximum Reading Functions, Rubber Over-molded Case |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Product Weight | 139 GRAMS (0.3064 LBS) |
| Product Height | 1.3 IN |
| Product Length | 7.4 IN |
| Product Width | 2.5 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Other Information | Display: 3-3/4 digits 4000 counts LCD display
Update Rate: 3 per second nominal Polarity: Automatic Operating Temperature: 0 ?C to 40 ?C; 80% RH for temperature up to 31 ?C decreasing linearly to 50% RH at 40 ?C Altitude: Operating below 2000m; Indoor use Storage Temperature: -20 ?C to 60 ?C, 80% RH (with battery removed) Temperature Coefficient: nominal 0.15 x (specified accuracy)/?C @(0 ?C ~ 18 ?C or 28 ?C ~ 40 ?C) Low Battery: Below approx. 2.4V Power Supply: 3V coin battery IEC-CR2032 Power Consumption: 2.8 mA typical except that 3.3 mA typical for ACA function APO Timing: Idle for 30 minutes APO Consumption: 5 µA typical Dimension: 190 x 63 x 32 mm (7.4 x 2.5 x 1.3 in) Weight: 139 gm approx Jaw opening & Conductor diameter: max 26 mm Special Features: 30ms Max Hold; Data Hold; Relative Zero mode Safety: Meets EN61010-2-032, UL61010B-2-032, IEC61010-1 2nd Ed., EN61010-1 2nd Ed., UL61010-1 2nd Ed. CAT III-600 Volts ac & dc; Pollution degree – 2 EMC: Conforms to EN61326-1. |
