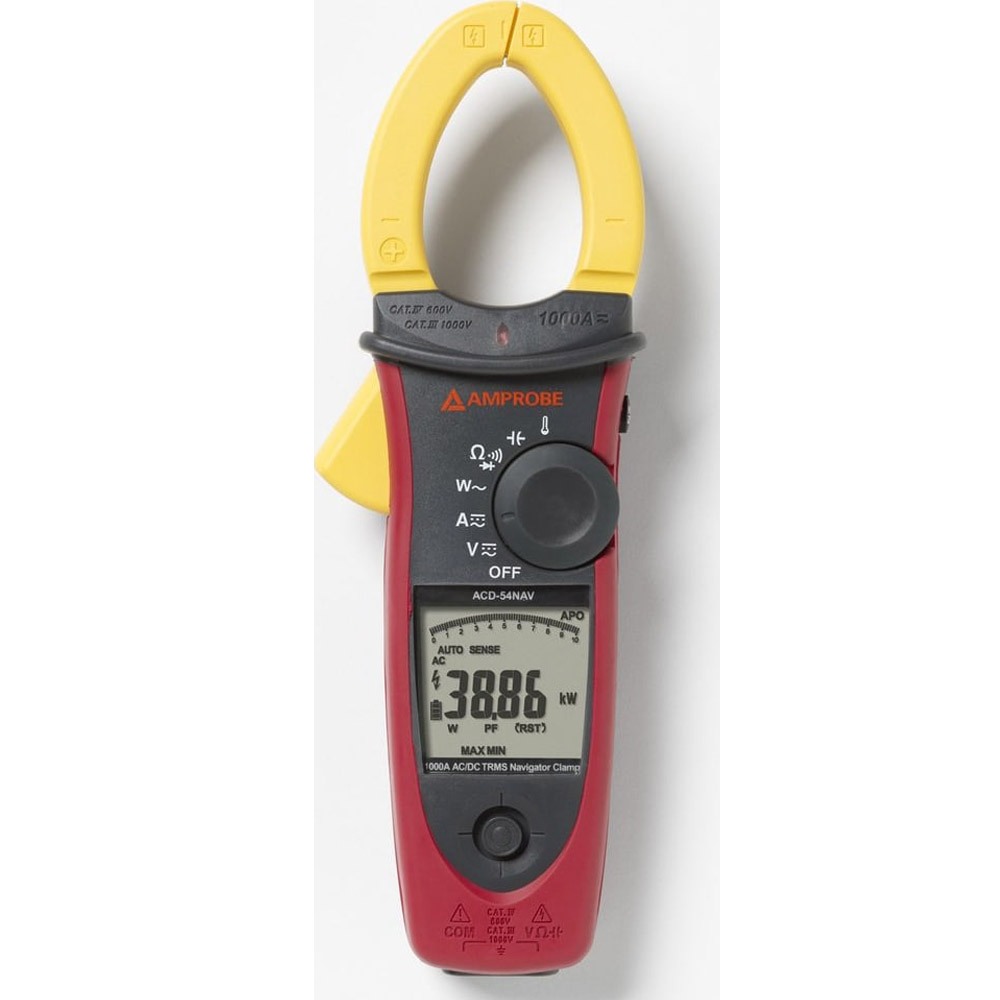

CAT IV Navigator Clamp Meters
Complete with a full range of diagnostic capabilities including phase sequence, power and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter, the Amprobe Navigator Clamp serves as a first line of defense for spot checking and verifying system conditions before deploying more specialized tools — or incurring additional costs. It is rated CAT IV 600 V, CAT III 1000 V meter with voltage measurement up to 1000 V AC/DC. The new innovative navigation system eliminates confusing push buttons, and replaces them with a single joystick allowing the user to select functions directly on the display.
It’s all about easy and reliable measurements. Amprobe’s new line of Navigator clamp meters feature quick, easy to use single hand selection of measurements. The joy stick control allows quick selection of measurement features on the display from MAX/MIN to power factor to AC/DC, with many more available. Simply highlight the desired measurement feature using the joy stick and press to select. Rugged and CAT IV reliable, these units also feature, super bright backlight display, built-in jaw fashlight and overmold bodies to absorb shock — all you need for commercial and industrial environments-
Manufacturer Specs
| General Specifications | ||||||
| Images |  |
 |
 |
 |
 |
|
| Features | ACD-50NAV | ACD-51NAV | ACDC-52NAV | ACD-53NAV | ACDC-54NAV | Best Accuracy |
| AC Current | 100.00, 600.0A | 100.00, 1000.0A | ± (1.5% Rdg + 5 LSD) | |||
| DC Current | 100.00, 600.0A | 100.00, 1000.0A | ± (1.5% Rdg + 5 LSD) | |||
| AC Voltage | 100.00V, 1000V | ±(1.0% Rdg + 5 LSD) | ||||
| DC Voltage | 100.00V, 1000V | ±(0.7% Rdg + 2 LSD) | ||||
| Resistance | 1.0000KO, 10.00KO, 100.00KO | ±(1.0% Rdg + 3 LSD) | ||||
| Frequency | 20.0Hz to 10KHz | ±(0.5% Rdg +3 LSD) | ||||
| Capacitance | 4.000 µF, 400.0 µF, 4000 µF | ±(1.9% Rdg + 8 LSD) | ||||
| DCµA | 1000.0µA | ±(1.7% Rdg + 2 LSD) | ||||
| Temperature | -58F to 1832F (-50°C to 1000°C) | -58F to 1832F (-50°C to 1000°C) | ±(1% Rdg + 0.8°C) | |||
| THD (Total Harmonics Distortion) | 0.1% to 100.0% | ±(3.0% Rdg + 10 LSD) | ||||
| Individual Harmonics | 1 to 25 | |||||
| Power | 10kW to 600kW | 10kW to1000kW | ±(2.5% Rdg + 5 LSD) | |||
| Power Factor | -1.00 to 1.00 | ± 3 degrees | ||||
| Dimension (HxWxD) | 238.3 x 87.3 x 51.0mm (9.4 x 3.4 x 2in) | 238.3 x 87.3 x 51.0mm (9.4 x 3.4 x 2in) | 238.3 x 87.3 x 51.0mm (9.4 x 3.4 x 2in) | 260 x 87.3 x 51.0mm (10.2 x 3.4 x 2in) | 260 x 87.3 x 51.0mm (10.2 x 3.4 x 2in) | |
| Weight | 380g (0.84lb) | 380g (0.84lb) | 380g (0.84lb) | 420g (0.93lb) | 420g (0.93lb) | |
| Accessory | Test leads (one pair), Carrying case and Manual | Test leads (one pair), Temp. adapter probe, Carrying case and Manual | Test leads (one pair), Carrying case and Manual | Test leads (one pair), Carrying case and Manual | Test leads (one pair), Temp. adapter probe, Carrying case and Manual | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 37 MM (1.46 IN) |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | Phase Rotation Indication, Non-contact Voltage Detection, Low Pass Filter for Variable Frequency Drives, Auto Torch-light When Clamping, Measures Total Harmonics Distortion, Easy to Use Single Hand Selection |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Built-in Jaw Flashlight, Overmold Bodies to Absorb Shock |
| Product Weight | 0.93 LBS |
| Product Height | 2 IN |
| Product Length | 10.2 IN |
| Product Width | 3.4 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.40 IN |
| Shipping Length | 13.90 IN |
| Shipping Width | 7.10 IN |
