Descripción

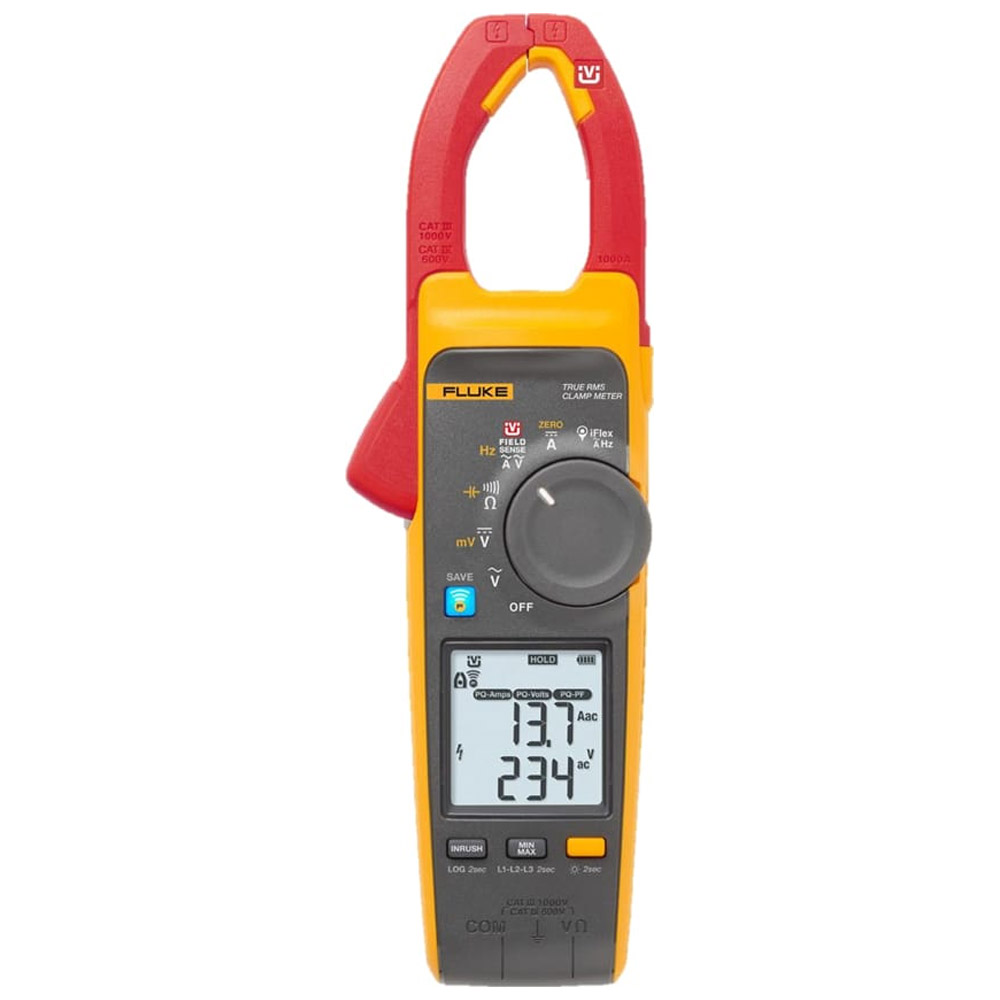

Fluke377 FC – Non-Contact Voltage True-RMS AC/DC Clamp Meter with iFlex
- True RMS AC/DC clamp meter
- CAT Rating: CAT III 1000V; CAT IV 600V
- Capacitance/Resistance: 999.9 µF/ 60 Ω
- Voltage AC/DC: 1000 V/1000 V
- Current AC/DC: 2500 A/1000 A
For the first time, make non-contact voltage measurement with an industrial clamp meter, accurately and safely, without connecting to live conductors. Improve your workflow efficiency for 3-phase measurements and use the Power Quality indicator to screen for Power Quality related issues.
The Fluke-377 FC and Fluke-378 FC Clamp Meters have four unique capabilities that set them apart from other clamp meters:
Voltage and Current Measurements with FieldSense Technology
Measure true-rms voltage and current readings without making any metallic contact to a live conductor using FieldSense, a Fluke-patented technology. The dual display allows voltage and current measurements to be viewed simultaneously.
Complete 3-Phase Measurements in Quick Easy Steps
No more hand-written notes or complicated math. Simply clamp the jaw over each of the three phase conductors and get a full set of phase-to-phase voltage and current measurements on the clamp. Phase rotation information is also auto-calculated and shown on the Fluke Connect software
Record, Analyze, Share Results with Fluke Connect Software
Automatically record all measurements, see the full set of 3-phase readings at a glance, collect data over time for preventive maintenance, share results and questions with coworkers
Enhanced Safety
Award winning Fieldsense enables Voltage measurements without connecting to any live conductors. The clamp meter senses electrical field in the clamp jaw to make voltage measurements.
Manufacturer Specs
| Non-Contact Voltage | Yes |
| CAT Rating | CAT III 1000V CAT IV 600V |
| True RMS | Yes |
| Capacitance/Resistance | 999.9 µF/ 60 Ω |
| Diode/Continuity | No/Yes |
| Low Pass | Yes |
| Min/Max/Average Hold | Yes |
| Frequency | 500 Hz |
| Voltage AC/DC | 1000 V/ 1000 V |
| Current AC/DC | 2500 A/ 1000 A |
| FieldSense Voltage | 1000 V |
| Display | V and A |
| Power Quality Indicator | No |
| 3-Phase Measurement | Yes |
| Phase Rotation | Yes |
| Visual Continuity | Yes |
| Reporting Software | Yes |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 2500 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Resistance | Yes |
| Capacitance | Yes |
Test Equipment General Attributes |
|
| Unique Features | CAT III 1000 V CAT IV 600 V |
| Warranty | 3 YEARS |
| Product Height | 12.00 IN |
| Product Length | 7.00 IN |
| Product Width | 4.13 IN |
| ECCN Number | 3A992 |
| Country of Origin | United States |
| UPC | 095969916608 |
