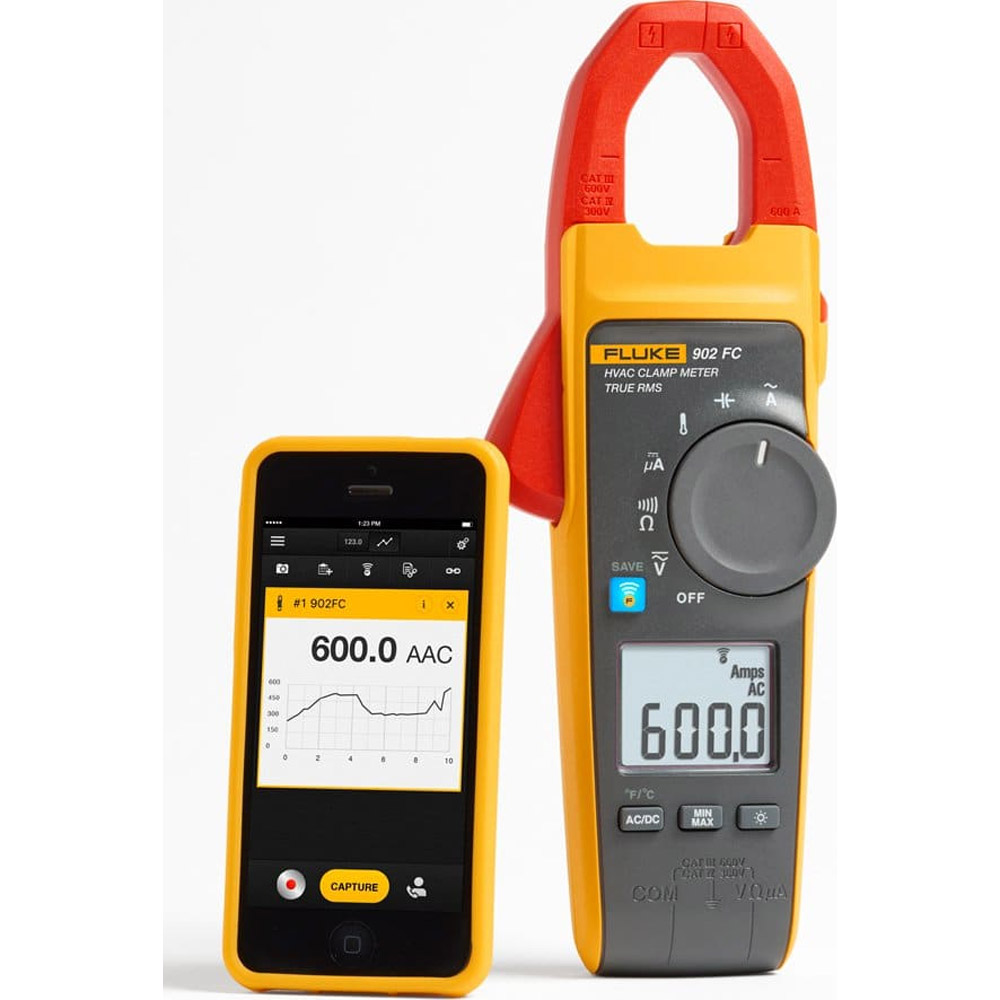

Fluke 902 FC – True-RMS Wireless HVAC Clamp Meter
Applications for HVAC
- 200 µA DC current measurements to measure flame rod
- Extended resistance range to measure thermistors up to 60 kΩ
- Capture flue gas temperature
- Measure start and run motor capacitors
- Measure performance of variable frequency drives
Get more power from your clamp meter with Fluke Connect®
Troubleshoot Faster
Instantly trend and monitor intermittent problems with TrendIt™ graphs so you can easily identify trends and stop problems before they happen.
Work safer and be in two places at the same time
Connect your meter to your phone through Bluetooth, clamp your meter around a conductor and walk up to 30m (100 ft) away from the point of measurement for added flexibility. You can be in two places at once and reduce the risk of arc flash by separating yourself from hazardous measurement situations.
Save time reporting
Easily create reports with the measurements you have taken with your meter and e-mail them right from the field. Save your measurements directly from your meter to a chronological list on your phone for easy transcribing. Organize your measurements by asset in one location.
Share from anywhere
Stay on the same page when you and your team are in different places, with ShareLive™ video call. Securely connect and collaborate with others, so they see what you see.
The Fluke 902 FC True-rms HVAC Clamp Meter, a wireless Fluke Connect®-enabled meter, improves the productivity of HVAC technicians in the field. The rugged dual rated – CAT III, 600 /CAT IV, 300 V – meter performs the essential measurements of HVAC systems – microamps for testing pilot light sensors, resistance up to 60 kilohms, AC current, AC/DC voltage, capacitance and contact temperature – eliminating the need to carry multiple tools. Its small body is easy to hold and the jaw fits perfectly in tight work spaces.
As part of Fluke Connect – the industry’s largest system of software and more than 40 wireless test tools – the 902 FC can transmit measurements to a smartphone or tablet for later, detailed analysis. Those measurements can be uploaded to the cloud. Technicians can combine measurement data from multiple Fluke Connect test tools to create and share reports from the job site via email and collaborate in real time with other colleagues with ShareLive™ video calls or email, increasing productivity in the field.
The clamp meter also decreases the frequency that technicians will need to wear personal protective equipment when working on high voltage/current panels. Simply turn off the panel, verify the panel is de-energized using standard safety procedures, place the clamp and sync it to a smartphone with the Fluke Connect app, close the panel, reenergize it, and take measurements from a safe distance.
Manufacturer Specs
| General Specifications | ||||
| Function | Range | Resolution | Accuracy | Crest factor (50Hz or 60Hz) |
| A ac (via Jaw) | 60/600 A | 0.01/0.1 A | 2.0 % ± 5 digit (45-65 Hz) 2.5 % ± 5 digit (65-400 Hz) |
2.5 at 220 A 3.0 at 180 A >1.4 at 600 A Add 2 % kΩ for CF>2 |
| V ac | 600 V | 0.1 V | 1.5 % ± 5 digits (45-400Hz) | |
| V dc | 600 V | 0.1 V | 1 % ± 5 digits | |
| Ohms | 600/6,000/60,000 Ω | 0.1/1/10 | 1 % ± 5 digits | |
| µA | 200 µA | 0.1 µA | 1 % ± 4 digits | |
| Contact temperature | 10 to 400 °C (14 °F to 752 °F) | 0.1 C/F | 1 % ± 8 digits | |
| Capacitance | 100.0/1000 µF | 0.1/1 µF | 1% +/- 4 digits | |
| Continuity beeper | ||||
| Beeper volume | 75 dBA nom. 15 cm from case front | |||
| On threshold | <=30 Ω | |||
| Mechanical and general specifications | ||||
| Maximum voltage between any terminal and earth ground | 600 V | |||
| Battery type | 2 AA alkaline batteries, NEDA 15A, IEC LR6 |
|||
| Temperature | Operating: -10 °C to +50 °C (14 °F to + 122 °F) Storage: -40 °C to +60 °C (-40 °F to + 140 °F) |
|||
| Operating humidity | Non-condensing <10 °C (50 °F) ≤90 % RH @ 10 °C to 30 °C (50 °F to 86 °F) ≤75 % RH @ 30 °C to 40 °C (86 °F to 104 °F) ≤45 % RH @ 40 °C to 50 °C (104 °F to 122 °F) |
|||
| Altitude | Operating: 3,000 m (9,842 ft) Storage: 12,000 m (39,370 ft) |
|||
| Dimensions | 230 mm x 83.7 mm x 45.4 mm (9.06 in x 3.30 in x 1.39 in) | |||
| Weight (meter only) | 419 g (14 oz) | |||
| Safety | IEC 61010-1, Pollution Degree 2 IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V |
|||
| IP Rating | IEC 60529: IP30, non-operating | |||
| Radio Frequency Certification | FCC ID:T68-FBLE IC:6627A-FBLE | |||
| Electromagnetic Compatibility (EMC) | International: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11: Group 1, Class A Korea (KCC): Class A Equipment (Industrial Broadcasting & Communication Equipment) USA (FCC): 47 CFR 15 subpart B. This product is considered an exempt device per clause 15.103. |
|||
| Temperature coefficients | Add 0.1 × specified accuracy for each degree C above 28 °C or below 18 °C | |||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Current DC | 200 uA (0.0002 A) |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Resistance | Yes |
| Capacitance | Yes |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Fluke Connect®-enabled meter |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth |
| IP Rating | IP30 |
| Product Weight | 382 GRAMS (0.842 LBS) |
| Product Height | 9.1 IN |
| Product Length | 1.8 IN |
| Product Width | 3.3 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
