Fluke 324-IRR-PVLD1
- Measure AC/DC voltage up to 600 V
- Measure AC current up to 400 A
- Measure resistance up to 4k ohms and continuity detection ≤ 30 ohms
- Measure solar irradiance, ambient and panel temperature, array orientation and tilt angle
- MC4 to 4mm adapter test leads for solar applications

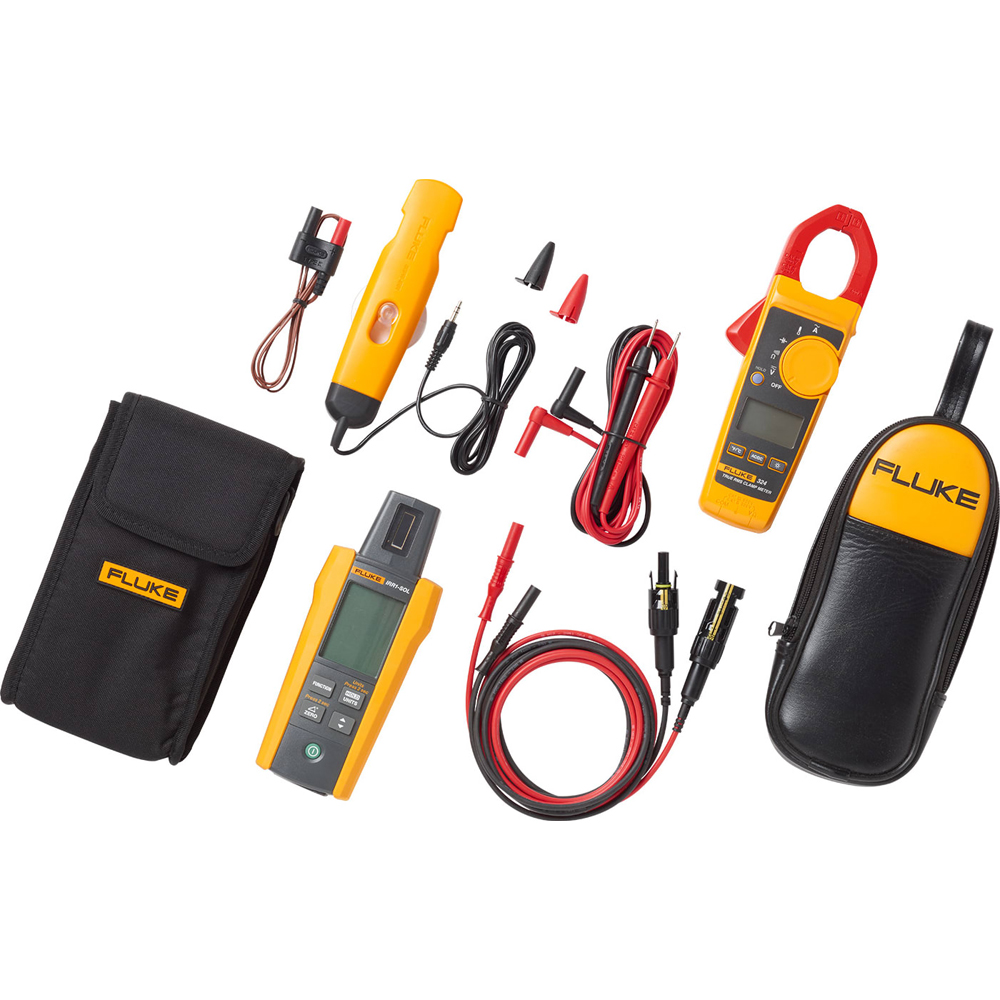

Fluke 324 True-rms Clamp Meter, IRR1-SOL Irradiance Meter and Pomona Electronics PVLEAD1 Solar PV Test Leads
This Fluke kit contains the tools technicians need for the planning, evaluation or maintenance of solar panel installations. The 324 True-RMS Clamp Meter is an ideal clamp meter for solar photovoltaic (PV) installation technicians working on residential or light commercial systems
Safely connect the MC4 test leads to the clamp meter to validate voltage and current from individual panels or a series of panels in a PV array.
Use the IRR1-SOL to obtain instantaneous measurements in watts per square meter as required by the IEC 62446-1 standard. Technicians can also determine the amount of solar irradiance present to calculate the IV curve of the power output, or validate that the panel or string of panels are outputting the correct voltage. With the additional ability to measure panel orientation and tilt, solar installations can be thoroughly evaluated for documentation and reporting.
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 30 MM (1.18 IN) |
| Resistance | Yes |
| Capacitance | Yes |
Test Equipment General Attributes |
|
| Unique Features | Continuity <=30 ohms Temperature -10 C to 400 C (14 F to 752 F) |
| Warranty | 2 YEARS |
| Safety Approval | CE, CSA |
| IP Rating | IP30 |
| Shipping Weight | 3.41 LBS |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 5.00 IN |
| Shipping Length | 10.00 IN |
| Shipping Width | 6.00 IN |
