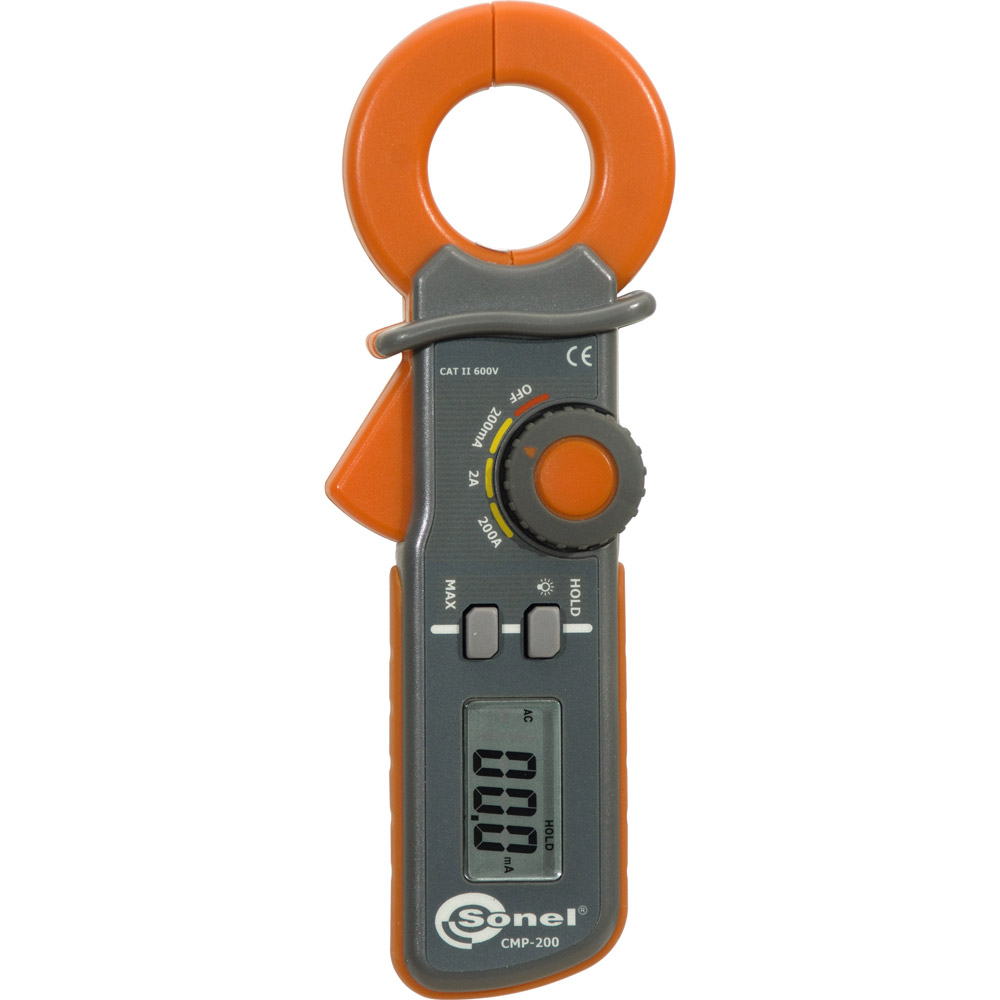

Sonel CMP-200
- AC current measurement up to 200 A with a resolution of 0.1 mA
- Three AC current measuring ranges: 200 mA, 2 A, 200 A
- Pocket size and lightweight
- HOLD function
- MAX result hold function
Digital Clamp-on AC Leakage Current Meter
The Sonel CMP-200 clamp meter is a compact device ideal for working in narrow and cramped spaces. The instrument’s small dimensions make it easy to transport. The meter is handy and features a simple, almost intuitive operation. This makes it a suitable tool even for novice users. Internal clamps with a diameter of approximately 30 mm will enable precise measurement in hard-to-reach places. Additional functions such as the “HOLD“ function and the “MAX” function expand the application possibilities of this instrument and are useful for obtaining complete results. Another advantage of the CMP-200 meter is the liquid crystal display with large, clearly visible digits. The backlight function enables the result to be read even in complete darkness.
Sonel CMP-200 Clamp Meter is designed for leakage current measurement, which allows to:
- Detect faults,
- Prevent damage
- Control the work of machines and devices.
Application
- Earth leakage current measurements
- Monitoring control loops
- General AC load monitoring
- Industrial troubleshooting
Manufacturer Specs
| Electric security | |
| Type of insulation | double, according to EN 61010 – 1 and IEC 61557 |
| Measurement category | CAT II 600 V acc. to EN 61010 – 1:2004 |
| Protection class acc. to EN 60529 | IP40 |
| Other technical data | |
| Power supply | 1.5 V AAA battery (2 pcs.) |
| Over range indication | 0L displayed |
| Sampling rate | 2 times per second |
| Display | 1999 counts LCD, 3½ digits |
| Dimensions | 182 x 61 x 34 mm |
| Weight (including batteries) | 225 g |
| Auto power OFF | 15 min. |
| Accordance with following standards | EN 61010 – 1:2004, EN 61010 – 2 – 032 |
| Quality standard | ISO 9001 |
| Rated operational conditions | |
| Operating temperature and humidity | 0…+30°C (max 90%), 30…40°C (max 75%), 40…50°C (max 45%) |
| Storage temperature | -25…+60°C max <90% |
| Operating altitude | max 3000 m |
| AC current measurement | ||
| Range | Resolution | Accuracy |
| 199,9 mA | 0,1 mA | ±(5% m.v + 8 dgt) |
| 1,999 A | 0,001 A | ±(5% m.v. + 10 dgt) |
| 199,9 A | 0,1 A | ±(2,5% m.v. + 10 dgt) |
| „m.v.”- measured value | ||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 200 A |
| Maximum Conductor Size | 30 MM (1.18 IN) |
| Auto Ranging/Manual | Both |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Safety Approval | CE, RoHS |
| Storage | Internal Memory |
| IP Rating | IP40 |
| Product Weight | 225 GRAMS (0.496 LBS) |
| Product Height | 182 MM (7.17 IN) |
| Product Length | 61 MM (2.40 IN) |
| Product Width | 34 MM (1.34 IN) |
| ECCN Number | EAR99 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
