Descripción
TPI 291
- 700 Amps AC
- Measure AC/DC volts, resistance and continuity
- Peak hold function
- Data hold
- CAT III 600 V rated

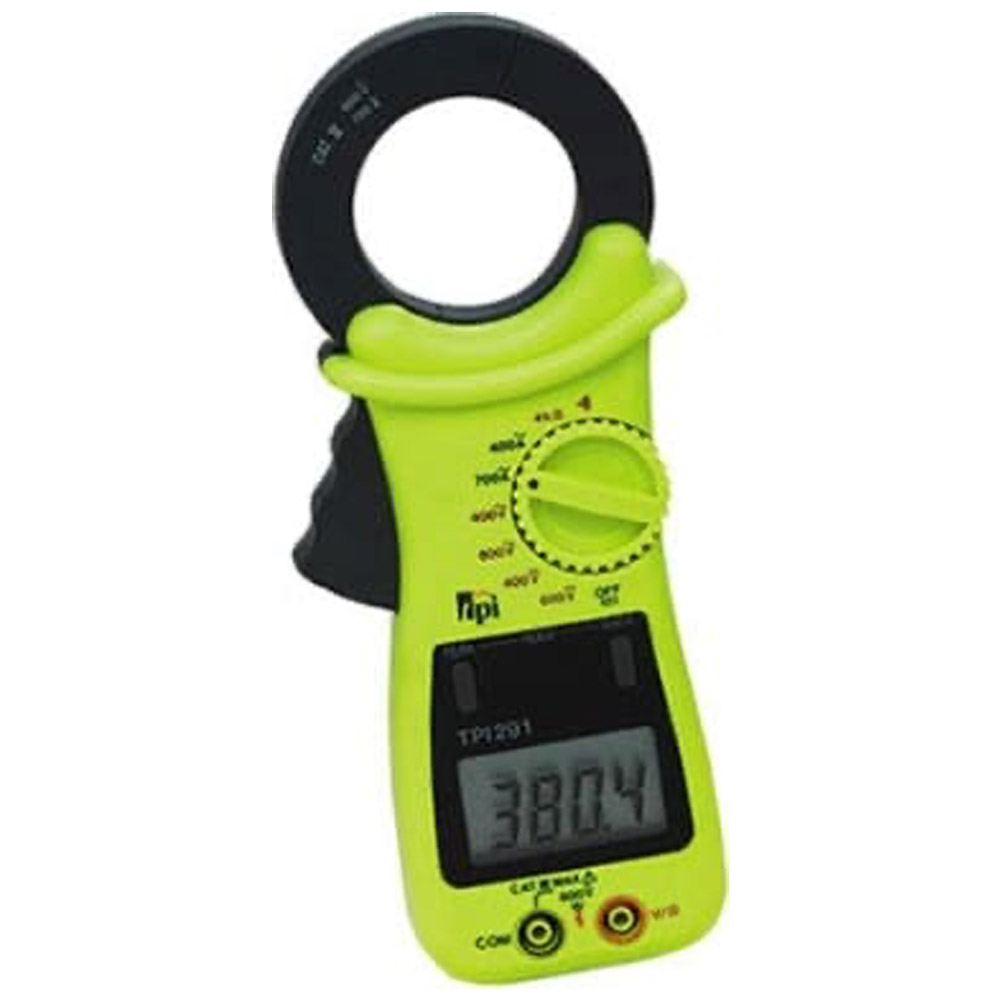

Digital Clamp Meter Amp Plus
The 291 is a hand-held manual ranging clamp DMM. The 291 is an affordable choice offering measurements in all basic electrical functions.
Additional specifications:
- 700 Amps AC
- Measure AC/DC volts, resistance and continuity
- Peak hold function
- Data hold
- CAT III 600 V rated
- cULus 61010
- 3-year limited warranty
Manufacturer Specs
| Model 291 Specifications | |
| Range Selection | Manual |
| Display Specifications | 4,000 Count |
| Basic Features | AC Volts DC Volts AC Amps Resistance Audible Continuity |
| Basic DC Accuracy | 0.75% |
| DC Voltage (maximum) | 600V |
| Resolution (maximum) | 0.001V |
| AC Voltage (maximum) | 600V |
| Resolution (maximum) | 0.001V |
| AC Amps (maximum) | 700A |
| Resolution (maximum): | 0.01A |
| Resistance (maximum) | 4KΩ |
| Resolution (maximum): | 1Ω |
| Agency Approval: | CEIEC 1010: CATIII; 600V cULus 61010 |
| Overall Dimensions: | 40mm x 190mm x 65mm (1.5in x 7.25in x 2.5in) |
| Weight: | 315g (11.1oz) |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 700 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.875 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | low cost, 700A AC clamp |
| Warranty | 3 YEARS |
| Safety Approval | CE, UL |
| Product Weight | 11.1 OUNCES (0.694 LBS) |
| Product Height | 1.5 IN |
| Product Length | 7.25 IN |
| Product Width | 2.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Korea |
| UPC | 637623002915 |
