Descripción

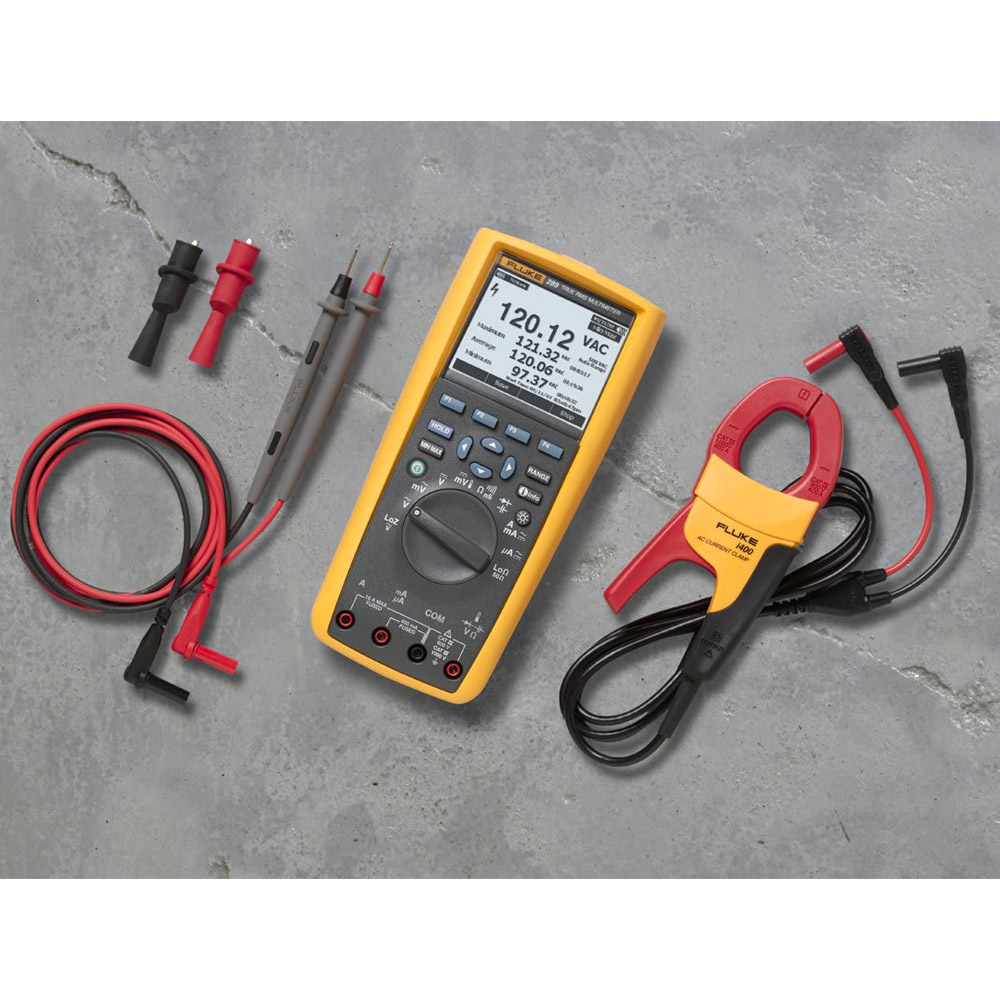

Fluke has combined its advanced data logging Multimeter with Trendcapture with the i400 AC Current Clamp. Together they provide the ability to troubleshoot most industrial problems. Additionally, the Fluke-289/IMSK Industrial Multimeter Service Combo Kit represents a significant savings over buying the items separately.
Save Money with a NEW Industrial Meter Service Kit!
The Fluke 289 now can be purchased as a bundle with the Fluke i400 Current Clamp to increase productivity while saving money.
Find little problems before they become big ones.
Take troubleshooting to the next level. The new Fluke 289 True-rms Industrial Logging Multimeter with TrendCapture and advanced data logging helps you detect intermittent events and prevent and analyze failures. Use LoZ, LoPass Filter, and Lo Ohms to solve electrical and electronic problems with speed and accuracy. Need help? Just press the i button. It?s the kind of performance you expect from a quality Fluke digital multimeter.
The i400 is a single range 400 A ac current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio is 1000:1.
Manufacturer Specs
| 289 Specifications | |||
| DC volts | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.025% accuracy | ||
| AC volts | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.4% accuracy (true-rms) | ||
| DC current | 500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.15 % accuracy | ||
| AC current | 500.00 ?A, 5000.0 ?A, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.7% accuracy (true-rms) | ||
| Temperature (excluding probe) | -200.0 ?C to 1350.0 ?C (-328.0 ?F to 2462.0 ?F) @ 1.0 % accuracy | ||
| Resistance | 50.000 W (289 only), 500.00 W, 5.0000 kW, 50.000 kW, 500.00 kW, 5.0000 MW, 50.00 MW, 500.0 MW @ 0.05 % accuracy | ||
| Capacitance | 1.000 nF,10.00 nF 100.0 nF, 1.000 ?F, 10.00 ?F, 100.0 ?F, 1000 ?F, 10.00 mF, 100.00 mF @ 1.0 % accuracy | ||
| Frequency | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz @ 0.005 % + 1 accuracy | ||
| i400 Specifications | |||
| Nominal current range | 400A | ||
| Continuous current range | 1 A – 400 A | ||
| Maximum Non-Destructive Current | 1000 A | ||
| Lowest measurable current | 1 A | ||
| Basic accuracy | 2% + 0.06 A (45-400 Hz) (% reading + floorspec) |
||
| Useable frequency | 5 Hz – 20 kHz | ||
| Output level(s) | 1 mA/A | ||
| Safety Specifications | |||
| Safety | CAT IV 600 V, CAT III, 1000 V | ||
| Maximum voltage | 1000 V AC rms from earth to ground, in compliance with EN61010 | ||
| Mechanical & General Specifications | |||
| Warranty | 1 year | ||
| Maximum conductor diameter | 32 mm (1.25 inches) | ||
| Maximum conductor size (busbar) | 750 MCM | ||
| Output cable length | 1.5 m (59 inches) | ||
| Shrouded banana plugs | Yes | ||
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 uV (0.001 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 uV (0.001 mV) |
| Maximum Current AC | 400 A |
| Minimum Current AC | 0.01 uA (0.00001 mA) |
| Resolution AC Current | 0.01 uA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 uA (0.00001 mA) |
| Resolution DC Current | 0.01 uA (0.00001 mA) |
| Basic Accuracy V DC | .025% |
| # Digit Display | 4.5 |
| Counts | 50000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Test Equipment General Attributes |
|
| Warranty Details | Limited lifetime warranty, Limited Lifetime Warranty |
| Safety Approval | CSA |
| Interfaces I/O | IR |
| Product Height | 3.75 IN |
| Product Length | 12.25 IN |
| Product Width | 11.00 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.75 IN |
| Shipping Length | 12.25 IN |
| Shipping Width | 11.00 IN |
