Descripción

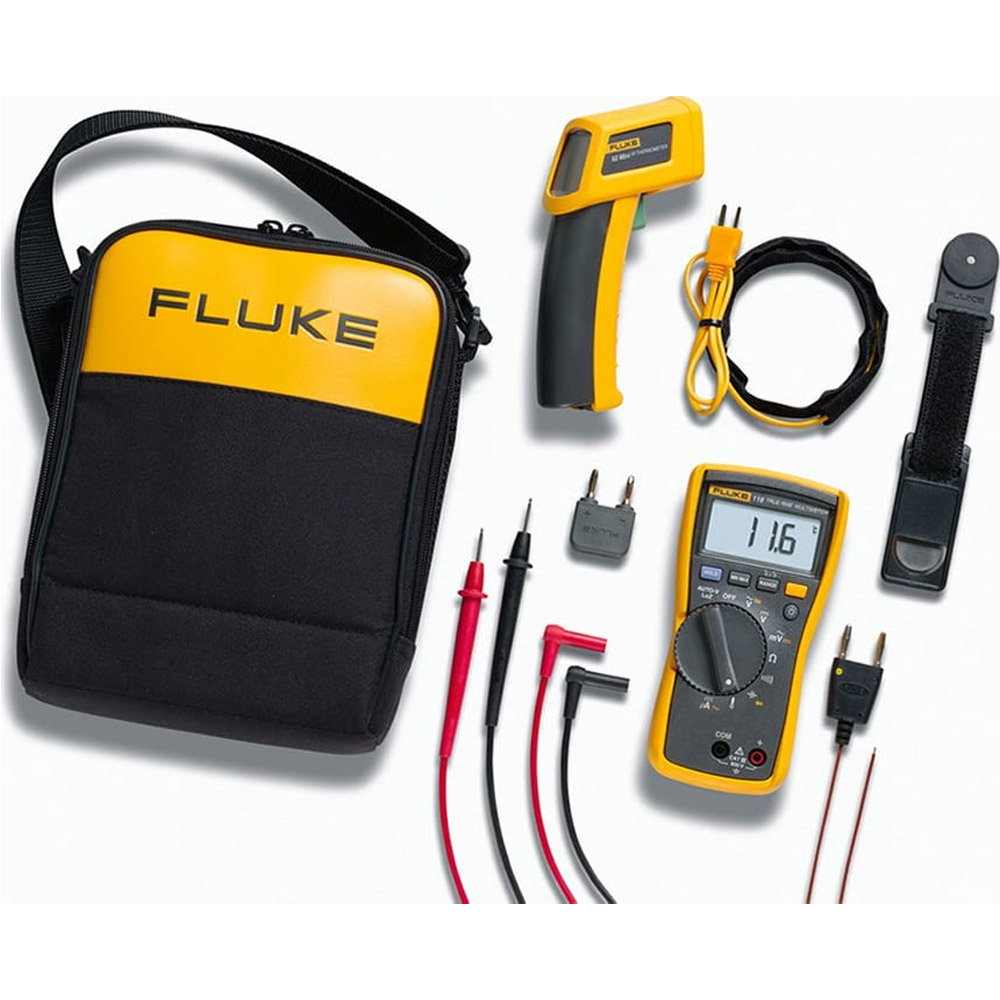

Fluke 116 HVAC Multimeter with Temperature and Microamps
Designed by electricians. Engineered by Fluke.
Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.
Fluke 62 MAX+ IR THERMOMETER
Introducing the Fluke 62 MAX and 62 MAX + IR Thermometers: Small in size. Big on toughness.
Designed with your on-the-job needs in mind, the new Fluke 62 MAX and 62+ MAX infrared thermometers are everything you’d expect from the experts in measurement tools. Small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62+ MAX are so tough, they’re the only IR thermometers around you can handle without care.
The Fluke 62 MAX is ideal for quick temperature scans of systems to look for anything from unusual hot spots that signal electrical and electro-mechanical malfunctions to undesirable air intake/output patterns in the building envelope. Because infrared measurement does not require making contact with the surface being measured, technicians can make the measurements from a distance, away from moving machinery or live electrical connections.
The 62 MAX has a distance-to-spot ratio of 10:1 and measures temperatures from 30°C to 500°C with an accuracy ± 1.5% of the reading. The 62+ MAX has a distance-to-spot ration of 12:1 and measures 30°C to 650°C with an accuracy ± 1.0% of the reading.
Both IR thermometers operate on a single AA battery.
Manufacturer Specs
Fluke 116 HVAC Multimeter with Temperature and Microamps
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.
The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] ) |
| Maximum voltage between any terminal and earth ground | 600 V |
| Surge protection | 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
| Display | Digital: 6,000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating temperature | -10 °C to + 50 °C |
| Storage temperature | -40 °C to + 60 °C |
| Battery | 9 volt Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| DC millivolts | 600.0 mV | 0.1 mV | 2.0 % + 3 |
| DC volts | 6.000 V | 0.001 V | |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Auto volts | 600.0 V | 0.1 V | 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz) |
| AC millivolts1 true-rms | 600.0 mV | 0.1 mV | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| AC volts1 true-rms | 6.000 V | 0.001 V | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Continuity | 600 Ω | 1 Ω | Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 µs or longer. |
| Ohms | 600.0 Ω | 0.1 Ω | 0.9 % + 2 |
| 6.000 kΩ | 0.001 kΩ | 0.9 % + 1 | |
| 60.00 kΩ | 0.01 kΩ | ||
| 600.0 kΩ | 0.1 kΩ | ||
| 6.000 MΩ | 0.001 MΩ | ||
| 40.00 MΩ | 0.01 MΩ | 1.5 % + 2 | |
| Diode test | 2.000 V | 0.001 V | 0.9 % + 2 |
| Capacitance | 1000 nF | 1 nF | 1.9 % + 2 |
| 10.00 µF | 0.01 µF | ||
| 100.0 µF | 0.1 µF | ||
| 9999 µF | 1 µF | ||
| 100 µF to 1000 µF | 1.9 % + 2 | ||
| > 1000 µF | 5 % + 20 | ||
| Lo-Z capacitance | 1 nF to 500 µF | 10 % + 2 typical | |
| Temperature2 (Type-K thermocouple) | -40 °C to 400 °C | 0.1 °C | 1 % + 102 |
| -40 °F to 752 °F | 0.2 °F | 1 % + 182 | |
| AC µamps true-rms (45 Hz to 500 Hz) |
600.0 µA | 0.1 µA | 1.5 % + 3 (2.5 % + 3 > 500 Hz) |
| DC µamps | 600.0 µA | 0.1 µA | 1.0 % + 2 |
| Hz (V or A input)3 | 99.99 Hz | 0.01 Hz | 0.1 % + 2 |
| 999.9 Hz | 0.1 Hz | ||
| 9.999 kHz | 0.001 kHz | ||
| 50.00 kHz | 0.01 kHz |
| 1 | All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of = 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. |
| 2 | Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. |
| 3 | Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. |
Fluke 62 MAX+ IR THERMOMETER
| Specifications | |||||||||||||||||||||||
| Temperature Range | Fluke 62 MAX -30 °C to 500 °C (-22 °F to 932 °F) Fluke 62+ MAX -30 °C to 650 °C (-22 °F to 1202 °F) |
||||||||||||||||||||||
| Accuracy |
|
||||||||||||||||||||||
| Response Time (95%) | Fluke 62 MAX <500 ms (95% of reading) Fluke 62+ MAX <300 ms (95% of reading) Spectral Response 8 to 14 microns Emissivity 0.10 to 1.00 |
||||||||||||||||||||||
| Display Resolution | 0.1 °C (0.2 °F) | ||||||||||||||||||||||
| Repeatability of Readings | Fluke 62 MAX ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater Fluke 62+ MAX ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater |
||||||||||||||||||||||
| Power | AA battery | ||||||||||||||||||||||
| Battery Life | Fluke 62 MAX 10 hours with laser and backlight on Fluke 62+ MAX 8 hours with laser and backlight on |
||||||||||||||||||||||
| Physical Specifications |
|
||||||||||||||||||||||
| Standards and Agency Approval | Compliance EN/IEC 61010-1: 2001 Laser Safety FDA and EN 60825-1 Class II |
||||||||||||||||||||||
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Basic Accuracy V DC | 0.5% |
| # Digit Display | 3.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Low-Pass Filter | No |
Thermometers/IR Thermometers Template |
|
| IR Temperature Max | 1202 F |
| IR Temperature Min | -22 F |
| Field View Ratio (Spot Ratio) | 12:1 |
| Accuracy | ±1.0 °C or ±1.0% of reading, whichever is greater
-10 °C to 0 °C: ±2.0 -30 °C to -10 °C: ±3.0 |
| Laser Pointer | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Data Hold | Yes |
| Max./Min. | Yes |
| Memory Recall | No |
| Thermocouple Input | No |
| Food Safe | No |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Warranty Details | 3-warranty on both products |
| Product Weight | 1.21 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Shipping Weight | 3.55 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Battery Type | 9v, AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
| Shipping Height | 5.51 IN |
| Shipping Length | 10.63 IN |
| Shipping Width | 12.06 IN |
