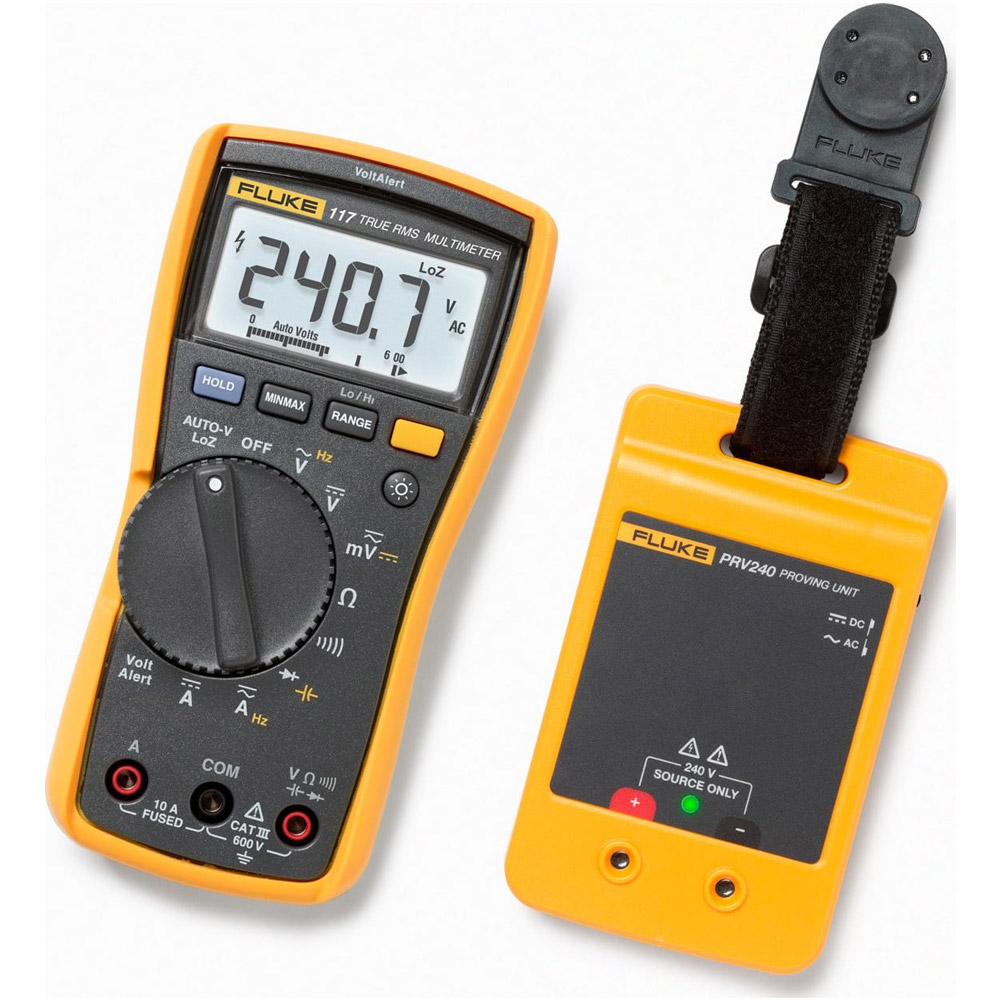

Fluke 117/PRV240 117 DMM + PRV240 Proving Unit Kit
Unique, compact, convenient
The Fluke PRV240 Proving Unit is a portable, pocket-sized, battery-powered voltage source. It is unique in that it sources stable ac and dc voltages for both LoZ and HiZ instruments.
Designed for safety and compliance
The Fluke PRV240 provides a safe method to verify that your electrical test tool is operating properly before you conduct any live tests. The concept of “Test Before Touch” (TBT) involves testing your meter against a known live source before and after the actual measurement. This sequence verifies that your test tool is operating properly during the actual measurement.
Verify your test tool without unnecessary exposure to shock and arc flash. Using the PRV240 reduces the need for personal protective equipment (PPE) when a known voltage source is not available for verification of your tester or multimeter before test before TBT are performed. PPE is still needed for absence of voltage testing when appropriate.
Manufacturer Specs
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.
The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] ) |
| Maximum voltage between any terminal and earth ground | 600 V |
| Surge protection | 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display | Digital: 6,000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating temperature | -10 °C to + 50 °C |
| Storage temperature | -40 °C to + 60 °C |
| Battery | 9 volt Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| DC millivolts | 600.0 mV | 0.1 mV | 0.5 % + 2 |
| DC volts | 6.000 V | 0.001 V | 0.5 % + 2 |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Auto volts | 600.0 V | 0.1 V | 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz) |
| AC millivolts1 true-rms | 600.0 mV | 0.1 mV | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| AC volts1 true-rms | 6.000 V | 0.001 V | 1.0 % + 3 (45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Continuity | 600Ω | 1Ω | Beeper on < 20Ω off > 250Ω; detects opens or shorts of 500μs or longer. |
| Ohms | 600.0Ω | 0.1Ω | 0.9 % + 2 |
| 6.000 kΩ | 0.001 kΩ | 0.9 % + 1 | |
| 60.00 kΩ | 0.01 kΩ | ||
| 600.0kΩ | 0.1kΩ | ||
| 6.000MΩ | 0.001MΩ | ||
| 40.00MΩ | 0.01MΩ | 1.5 % + 2 | |
| Diode test | 2.000 V | 0.001 V | 0.9 % + 2 |
| Capacitance | 1000 nF | 1 nF | 1.9 % + 2 |
| 10.00 µF | 0.01 µF | ||
| 100.0 µF | 0.1 µF | ||
| 9999 µF | 1 µF | ||
| 100 µF to 1000 µF | 1.9 % + 2 | ||
| > 1000 µF | 5 % + 20 | ||
| Lo-Z capacitance | 1 nF to 500 µF | 10 % + 2 typical | |
| AC amps true-rms (45 Hz to 500 Hz) |
6.000 A | 0.001 A | 1.5 % + 3 |
| 10.00 A | 0.01 A | ||
| 20 A overload for 30 seconds max. | |||
| DC amps | 6.000 A | 0.001 A | 1.0 % + 3 |
| 10.00 A | 0.01 A | ||
| 20 A overload for 30 seconds max. | |||
| Hz (V or A input)2 | 99.99 Hz | 0.01 Hz | 0.1 % + 2 |
| 999.9 Hz | 0.1 Hz | ||
| 9.999 kHz | 0.001 kHz | ||
| 50.00 kHz | 0.01 kHz | ||
| Notes: 1: All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non- zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of = 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. 2: Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. |
|||
| Fluke PRV240 Specifications | ||
| Output Voltage | 240 V ac rms or dc | ± 10 % ≥ 1 MΩ |
| LoZ >3 kΩ load | 60 V ac typical 50 V ac rms minimum |
|
| LED power indicator | Turns on when output voltage is present | |
| Battery | 4 AA Alkaline batteries NEDA | 24 A IEC LR03 |
| Battery life | 5000 (5-second duration) test cycles with >1 MΩ load, 300 tests minimum with >3 kΩ load | |
| Operating temperature | -10 °C to +50 °C | |
| Operating humidity | 0 % to 90 % (0 °C to 35 °C) | 0 % to 70 % (35 °C to 55 °C) |
| Operating altitude | 2000 m | |
| Dimensions | 11.7 cm x 7.4 cm x 2.8 cm (4.6 in x 2.9 in x 1.1 in), Pollution Degree 2 | |
| Weight | 0.23 kg (8 oz) includes batteries | |
| Safety | IEC61010-1, IEC61010-2-030 | |
| Warranty | One-year | |
| Electromagnetic Compatibility (EMC) | IEC 61326-1 | Portable EM environment; CISPR 11, Group 1, Class A |
| US (FCC) | 47 CFR 15 subpart B, this product is considered an exempt device per clause 15.103 | |
| Korea (KCC) | Class A Equipment (Industrial Broadcasting & Communication Equipment) | |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10.0 A |
| Minimum Current AC | 0.001 A (1 mA) |
| Resolution AC Current | 0.001 A (1 mA) |
| Maximum Current DC | 10.00 A |
| Minimum Current DC | 0.001 A (1 mA) |
| Resolution DC Current | 0.001 A (1 mA) |
| Basic Accuracy V DC | 0.5% |
| # Digit Display | 3.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Test Equipment General Attributes |
|
| Unique Features | •VoltAlert™ technology for non-contact voltage detection •AutoVolt automatic ac/dc voltage selection •Low input impedance: helps prevent false readings due to ghost voltage •Large white LED backlight to work in poorly lit areas •True-rms for accurate measurements on non-linear loads •Measures 10 A (20 A overload for 30-seconds) •Resistance, continuity, frequency and capacitance •Min/Max/Average with elapsed time to record signal fluctuations •Compact ergonomic design for one-handed operation •Compatible with optional magnetic hanger (ToolPak™) for hands free operation •CAT III 600 V safety rated |
| Warranty | 3 YEARS |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| IP Rating | IP42 |
| Product Weight | 1.34 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Shipping Weight | 1.34 LBS |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 5.91 IN |
| UPC | 095969324205 |
| Shipping Length | 12.99 IN |
| Shipping Width | 11.02 IN |
