Multímetro industrial Fluke 87-5/E2 Electrician Combo Kit

Accuracy and diagnostic functions for maximum industrial productivity.

Fluke 80 Series V has replaced series 80 Series III.

The New 80 Series consists of the following models:

• Fluke 83V Industrial DMM
• Fluke 87V True RMS Industrial DMM
• Fluke 87-5E/2 Industrial Electricians Combo Kit (Replaces 87 V/E)

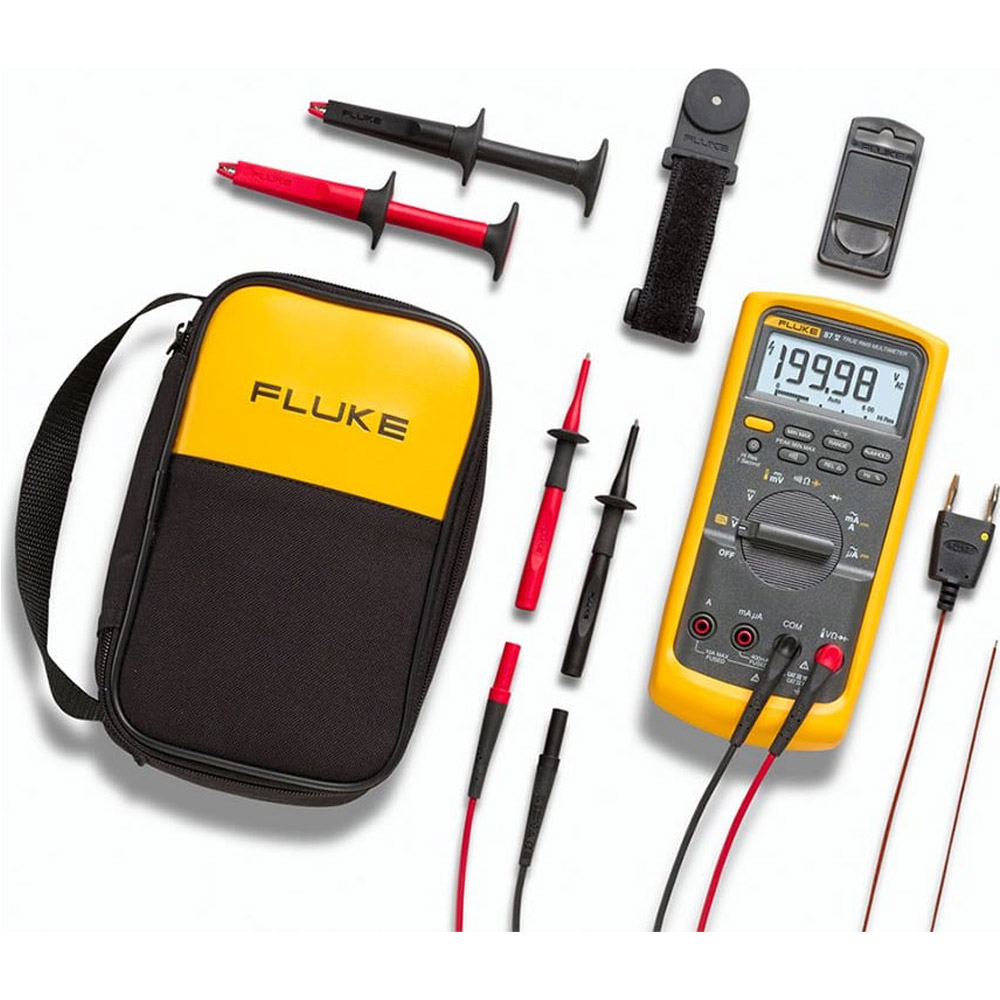

Introducing the new 87-V/E2 Industrial Electrician Combo Kit. Make industrial troubleshooting even more productive with accessories. The 87-V/E2 comes with a new lightweight soft case for optimal protection and accessory storage.

New features for maximum productivity.

• Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87V)
• Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87V)
• Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks
• Large digit display with bright, two-level backlight makes the 80 Series V significantly easier to read than older models

Electrical safety.
All inputs are protected to Category III, 1000 V and Category IV 600 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.

Correctly measure pulse-width modulated motor drive signals.

• The new Fluke 87V is designed specifically to handle complex signals produced by adjustable speed motor drives. Think of the potential productivity you’ll gain by taking the guesswork out of drive system troubleshooting. Measurements are correct each and every time. Unique function for accurate measurements of noisy pulse-width modulated AC voltage. Measures correctly at the ASD and at the motor terminals
• Accurately measure the frequency (motor speed). Frequency measurement not affected by the ASDs carrier frequency
• Measure AC current with an optional current clamp accessory
• Compare readings from the 87V with the display on the ASD
• Special shielding blocks high frequency, high-energy noise generated by large drive systems

Complex PWM drive signals are not a problem for the Fluke 87V	Pulse-width modulated detail of 50 Hz motor drive output voltage. 1000 V, 50 micro-second pulses can cause erratic behavior in some test equipment

This meter reading of the output voltage is with the low pass filter enabled. The reading compares well with the drive’s display value.   This meter reading without the low pass filter enabled is approximately 30% higher than the actual drive output voltage. This reading utilizes the meters full 20 kHz bandwidth. Many other multimeters available today will not provide readings which compare to the drives display value.

See how the new 87V compares to the original Fluke 87:

Function	Original 87	87V	Productivity Increase
Selectable filter for motor drives	No	Yes	Accurate voltage and frequency measurements on pulse width modulated signals
Built in thermometer	No	Yes	No need to carry a separate thermometer
Capacitance	5 nf to 5 μF	5 nf to 10,000 μF	Measure more capacitors
VDC accuracy and resolution	0.1 %, 10 μV	0.05 %, 10 μV	Precise measurements in a hand held package
Display digits	13.5 X 7 mm	15.25 X 8.5 mm	30 % larger makes it easy to read
Backlight	Green	2-level, bright white	Easier to read in dark locations
Magnetic hanger	No	Optional	Position meter for easy viewing
Peak capture	1ms	250 μS	Record intermittent problems 4 times faster
CAT electrical safety rating	No	Yes, 2nd edition ANSI and IEC	Increased protection from 8kV spikes that can cause arc flash
Battery door	No	Yes	Change battery quickly without breaking cal seal
Warranty	Expired	Limited Lifetime	Lower cost of ownership

Measures:

• Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87-5, 87-5/E Kit)
• True-rms ac voltage and current for accurate measurements on non linear signals (87-5, 87-5/E Kit)
• Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87-5, 87-5/E Kit)
• Measure up to 1000 V AC and DC
• Measure up to 10 A (20 A for 30 seconds)
• 10,000 µF capacitance range
• Frequency to 200 kHz and % duty cycle
• Peak capture to record transients as fast as 250 µs (87-5, 87-5/E Kit)
• 4½ digit mode (87-5, 87-5/E Kit
