Descripción
AEMC 405
- InRush: 10 to 1000AAC, 10 to 1500ADC
- Jaw Opening: 1.9″ (48mm)
- Frequency: 20kHz in V, 2kHz in A
- Resolution Max: 0.01A
- Voltage Range: 1000Vrms AC/DC/AC+DC Autoranging
- Resolution Max: 0.01V

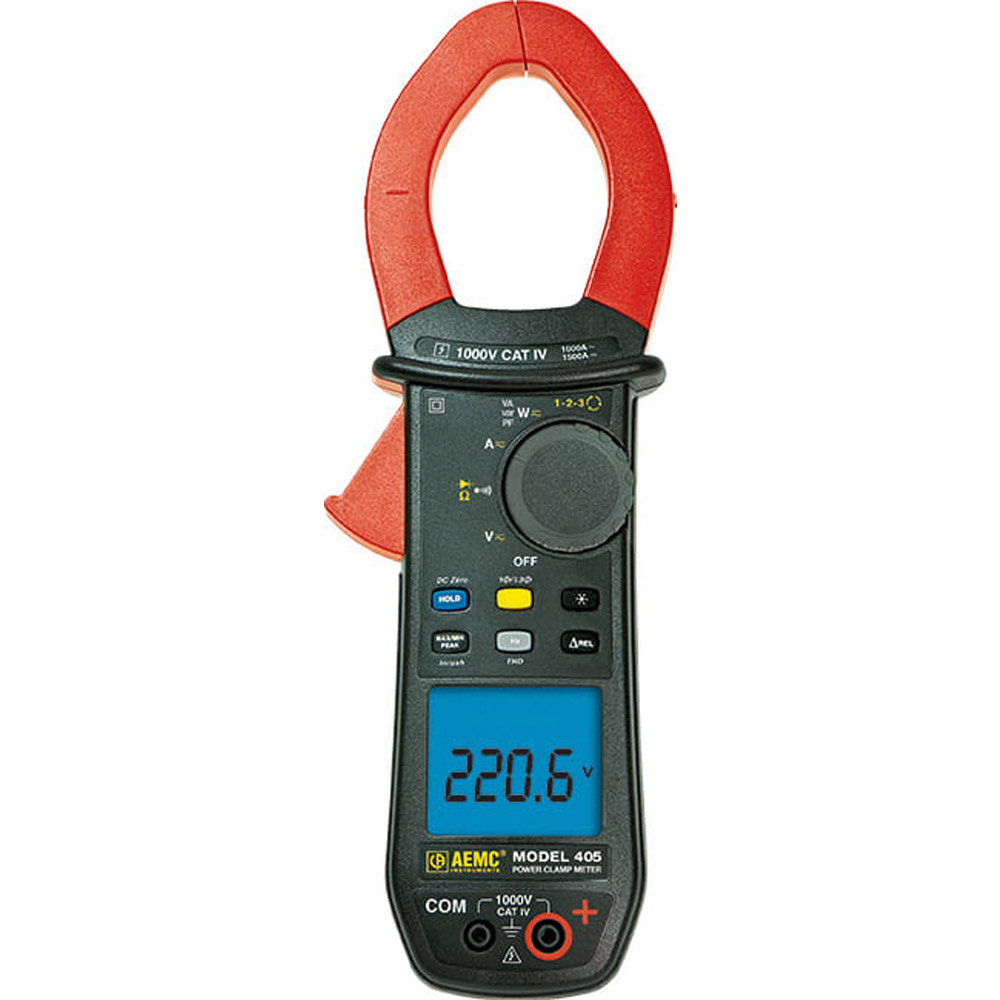

Power Clamp-on Meter (TRMS, 1000VAC/DC, 1000AAC/1500ADC, Ohms, Continuity, Phase Rotation, Power, THD)
The True RMS Clamp-On Meter Model 405 is safety rated at 1000V CAT IV. AC DC clamp meter – it measures AC, DC, and AC+DC volts, amps and power. The Model 405 also measures resistance, frequency, True InRush®, temperature, phase rotation, and continuity. It can also perform diode checks. This rugged meter can operate in the most demanding work environments, and its IP54 rating allows it to withstand both dust and water spray.
Manufacturer Specs
| Models | 401 | 403 | 405 | 407 |
| ELECTRICAL | ||||
| Type of Acquisition | TRMS(AC) | TRMS(AC)/DC | TRMS(AC) | TRMS(AC,AC+DC)/DC |
| Auto range | Yes | Yes | Yes | Yes |
| Automatic AC/DC Detection | – | Yes | – | Yes |
| A AC | 0.15 to 1000A (1500A peak) | |||
| A DC | – | 0.15 to 1000A | 0.15 to 1000A | |
| A AC+DC | – | 0.15 to 1000A (1500A peak) | ||
| Best Accuracy | 1% of Reading + 3 counts | |||
| V AC | 0.15 to 1000A (1400V peak) | |||
| V DC | 0.15 to 1400V | |||
| V AC+DC | – | 0.15 to 1000A (1400V peak) | ||
| Best Accuracy | 1% of Reading + 3 counts | |||
| Hz | Current: 5.0Hz to 2000Hz | |||
| Voltage: 5.0Hz to 20.00Hz | ||||
| Ohm | 0.1Ω to 99.99kΩ | |||
| Open Circuit Voltage | ≤8V | |||
| Measurement Current | ≤680μA | |||
| Audible Continuity | Yes | |||
| Continuity Threshold | Adjustable from 1 to 999Ω | 40Ω | ||
| Diode Test (semiconductor junction) | Yes | No | ||
| Temperature (K type) | -60 to +100°C (-76 to +1832°F) | – | ||
| Singe-phase and Total Three-phase Power Values | Yes | |||
| Active Power | – | 1W to 1000KW | ||
| Apparent Power | – | 1VA to 1000kVA | ||
| FP / DPF | – | Yes/No | Yes/Yes | |
| Harmonic Analysis | – | Yes | ||
| THDf/THDr | – | Yes/Yes | ||
| Frequency Analysis | – | No | 25th order | |
| Phase Rotation (2-wire method) | – | Yes | Yes | |
| True InRush (overcurrent measurement) | Yes | |||
| Motor Inrush | Yes | |||
| Load Change | Yes | |||
| Hold | Yes | |||
| Min./Max. | Yes | |||
| Peak+/Peak- | – | Yes | ||
| Relative ?X / Differential ?X/X (%) | – | – | Yes/Yes | |
| MECHANICAL | ||||
| Clamping Diameter | 1.89″ (48mm) | |||
| Display | Backlit LCD | |||
| Resolution | 10,000 counts | |||
| Number of Values Displayed | 1 | 1 | 3 | |
| Auto Power Off | Yes | |||
| Data Recording | – | – | Yes | |
| Communication Interface | – | – | Bluetooth communication | |
| Electrical Safety as per IEC 61010 | 1000V CAT IV; 1000V CAT III | |||
| Power Supply | 4×1.5V AA | |||
| Dimension & Weight | 3.62 x 10.70 x 1.31″ (92 x 272 x 41mm)/ 600g | |||
| Selection Guide | ||||
| Function | 401 | 403 | 405 | 407 |
| Display Count | 1000 | |||
| VAC | 1000 | |||
| VDC | – | 1400 | 1400 | 1400 |
| AAC | 1000 | |||
| ADC | – | 1500 | 1500 | 1500 |
| Hz | Yes | |||
| O/Cont | Yes | |||
| Temp | Yes | Yes | No | No |
| Adp | No | Yes | No | No |
| Power 1 & 3 ? | No | No | W, VA, PF | W, VAR VA, PF |
| Phase Rotation | No | No | Yes | No |
| InRush | Yes | |||
| Harmonics | No | No | THD | Yes to 25th |
| Fundamental Frequency | – | – | 40-70Hz | 40-70 & 400 Hz |
| CF | No | No | – | Yes |
| THDf & THDr | No | No | Yes | Yes |
| Delta Rel | No | Yes | Yes | No |
| Min/Max | Yes | |||
| Peak +/- | No | No | Yes | Yes |
| Hold | Yes | |||
| Datalogger | No | No | No | 1000 points |
| Comm | No | No | No | Bluetooth |
| Backlight | Yes | |||
| Auto-Off | Yes | |||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1500 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 1.89 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Warranty | 12 MONTHS (1 YEARS) |
| Safety Approval | CE |
| IP Rating | IP54 |
| Product Weight | 1.32 LBS |
| Product Height | 10.7 IN |
| Product Length | 3.62 IN |
| Product Width | 1.61 IN |
| Shipping Weight | 9.00 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| UPC | 685338220414 |
