Descripción

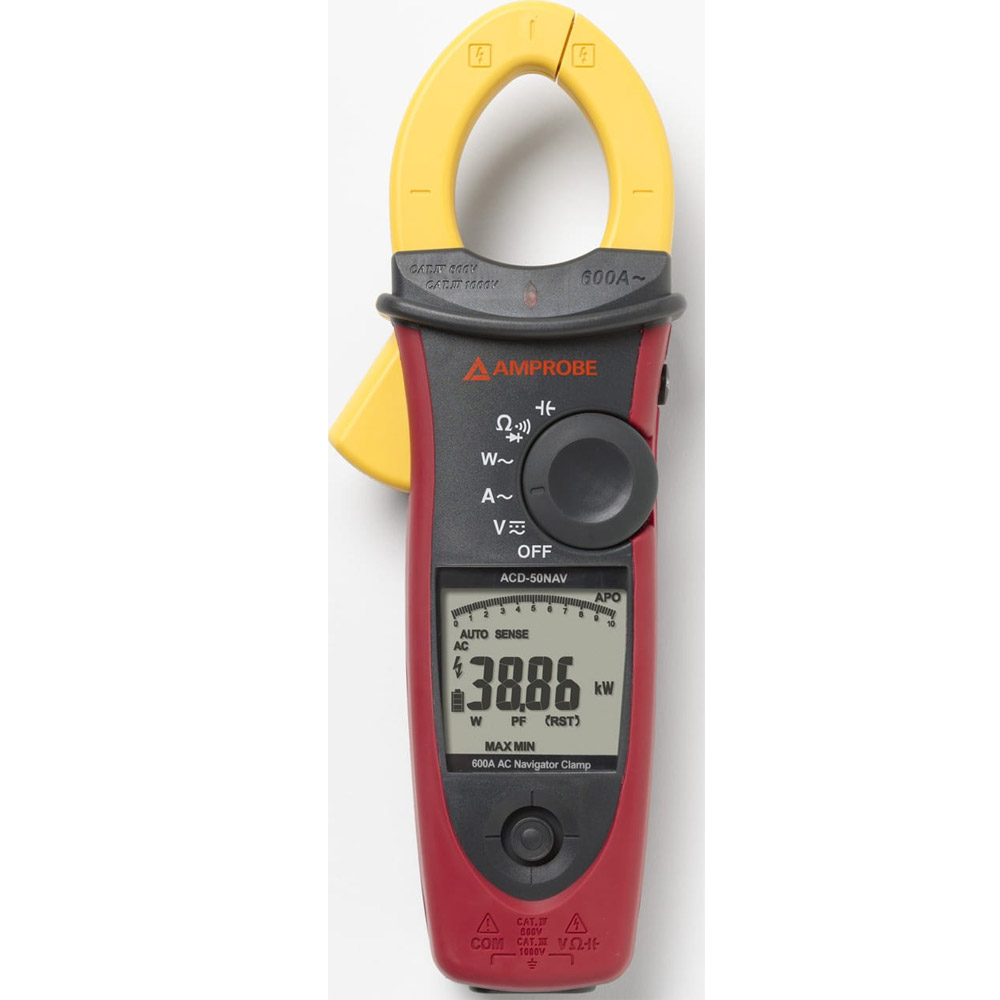

Amprobe ACD-50NAV
- True RMS
- Maximum Jaw Opening 1.77” (45mm)
- 4 feet Drop Proof
- Deluxe Carrying Case Included
- CAT IV 600V /CAT III 1000V Safety Standard
600A AC Navigator Clamp
The ACD-50NAV is CAT IV 600V, CAT III 1000V clamp with voltage measurement up to 1000V AC/DC. Designed for the toughest electrical applications, it features Phase Rotation, Inrush Current, and Low Pass filter for full diagnostic capabilities. The new innovative navigation system eliminates multiple and confusing push buttons and replaces them with a joystick where users can select functions directly on the display.
Manufacturer Specs
 |
 |
 |
 |
 |
||
| Features | ACD-50NAV | ACD-51NAV | ACDC-52NAV | ACD-53NAV | ACDC-54NAV | Best Accuracy |
| AC Current | 100.00, 600.0A | 100.00, 1000.0A | ± (1.5% Rdg + 5 LSD) | |||
| DC Current | 100.00, 600.0A | 100.00, 1000.0A | ± (1.5% Rdg + 5 LSD) | |||
| AC Voltage | 100.00V, 1000V | ±(1.0% Rdg + 5 LSD) | ||||
| DC Voltage | 100.00V, 1000V | ±(0.7% Rdg + 2 LSD) | ||||
| Resistance | 1.0000KO, 10.00KO, 100.00KO | ±(1.0% Rdg + 3 LSD) | ||||
| Frequency | 20.0Hz to 10KHz | ±(0.5% Rdg +3 LSD) | ||||
| Capacitance | 4.000 µF, 400.0 µF, 4000 µF | ±(1.9% Rdg + 8 LSD) | ||||
| DCµA | 1000.0µA | ±(1.7% Rdg + 2 LSD) | ||||
| Temperature | -58F to 1832F (-50°C to 1000°C) | -58F to 1832F (-50°C to 1000°C) | ±(1% Rdg + 0.8°C) | |||
| THD (Total Harmonics Distortion) | 0.1% to 100.0% | ±(3.0% Rdg + 10 LSD) | ||||
| Individual Harmonics | 1 to 25 | |||||
| Power | 10kW to 600kW | 10kW to1000kW | ±(2.5% Rdg + 5 LSD) | |||
| Power Factor | -1.00 to 1.00 | ± 3 degrees | ||||
| Dimension (HxWxD) | 238.3 x 87.3 x 51.0mm (9.4 x 3.4 x 2in) | 238.3 x 87.3 x 51.0mm (9.4 x 3.4 x 2in) | 238.3 x 87.3 x 51.0mm (9.4 x 3.4 x 2in) | 260 x 87.3 x 51.0mm (10.2 x 3.4 x 2in) | 260 x 87.3 x 51.0mm (10.2 x 3.4 x 2in) | |
| Weight | 380g (0.84lb) | 380g (0.84lb) | 380g (0.84lb) | 420g (0.93lb) | 420g (0.93lb) | |
| Accessory | Test leads (one pair), Carrying case and Manual | Test leads (one pair), Temp. adapter probe, Carrying case and Manual | Test leads (one pair), Carrying case and Manual | Test leads (one pair), Carrying case and Manual | Test leads (one pair), Temp. adapter probe, Carrying case and Manual | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 600 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 1.77 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | Phase Rotation Indication, Non-contact Voltage Detection, Low Pass Filter for Variable Frequency Drives, Auto Torch-light When Clamping, Measures Total Harmonics Distortion, Easy to Use Single Hand Selection |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Built-in Jaw Flashlight, Overmold Bodies to Absorb Shock |
| Product Weight | 0.84 LBS |
| Product Height | 2 IN |
| Product Length | 9.4 IN |
| Product Width | 3.4 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.50 IN |
| Shipping Length | 14.25 IN |
| Shipping Width | 7.50 IN |
