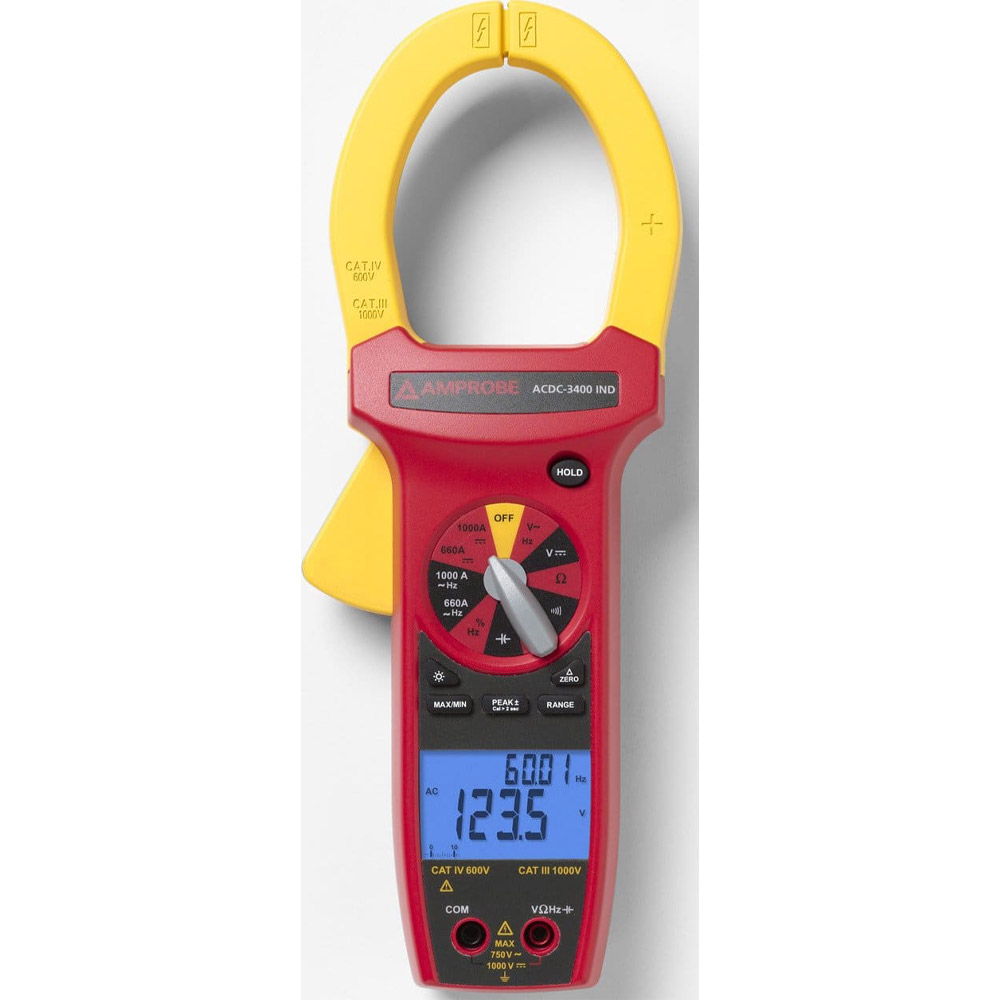

ACDC-3400 IND CAT IV Industrial True RMS Clamp Meter
This CAT IV rated clamp is ideal for industrial applications and utilities that require an extra level of safety. Includes True RMS sensing for accuracy and dependability. Extra large jaw to accommodate wide diameter wires.
If an industrial or utility testing application demands a higher level of safety, reach for this CAT IV rated Clamp Meter, the ACDC-3400 IND.
Including true-rms sensing for accuracy this clamp on meter’s extra large jaws can clamp on to those wide diameter wires making taking measurements in industrial environments simple.
Manufacturer Specs
| Specifications (valid for 23 °C ± 5 °C, for less than 75% relative humidity). | |||
| DC Volts | Ranges | Accuracy | |
| 660.0 mV, 6.600 V, 66.00 V, 660.0 V, 1000 V | ± (0.5% rdg + 2 dgts) | ||
| Input impedance | 660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 1000 V: 9.1 MΩ | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| AC Volts True RMS | Ranges | Frequency | Accuracy |
| 660.0 mV | 50 to 100 Hz | ± (1.5% rdg + 8 dgts) | |
| 6.600V, 66.00V | 50 to 500 Hz | ± (1.5% rdg + 8 dgts) | |
| 660.0V, 750V | 50 to 500 Hz | ± (1.5% rdg + 8 dgts) | |
| Frequency* | 50 to 1 kHz | ± (0.1% rdg + 5 dgts) | |
| * Frequency: 10% to 100% of voltage range | |||
| Peak Hold | Ranges | Frequency | Accuracy |
| 66.00V, 660.0V, 750V | 50 to 500 Hz | ± (3.0% rdg + 300 dgts) | |
| AC coupled TRMS | 5% to 100% of range | ||
| Crest factor | ≤ 3 | ||
| Input impedance | 660 mV: >100 MΩ; 6.6 V:10 MΩ; 66 V to 750 V: 9.1 MΩ | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| AC Current True RMS | Ranges | Frequency | Accuracy |
| 660.0A | 50 to 60 Hz | ± (2.0% rdg + 10 dgts) | |
| 660.0A | 61 to 400 Hz | ± (3.0% rdg + 10 dgts) | |
| 1000 A | 50 to 60 Hz | ± (2.5% rdg + 10 dgts) | |
| 1000 A | 61 to 400 Hz | ± (3.5% rdg + 10 dgts) | |
| Frequency* | 50 to 1kHz | ± (0.1% rdg + 5 dgts) | |
| * Frequency: 10% to 100% of current range | |||
| Peak Hold | Ranges | Frequency | Accuracy |
| 660.0A, 1000 | 50 to 400 Hz | ± (3.0% rdg + 200 dgts) | |
| AC coupled TRMS | 5% to 100% of range | ||
| Crest factor | ≤ 3 | ||
| Overload protection | 1000A AC | ||
| DC Current | Range | Accuracy | |
| 660.0A | ± (2.0% rdg + 5 dgts) | ||
| 1000A | ± (3.0% rdg + 5 dgts) | ||
| Overload protection | 1000A DC | ||
| Resistance | Range | Accuracy | |
| 660.0Ω, 6.600kΩ, 66.00kΩ, 660.0kΩ | ± (1.0% rdg + 5 dgts) | ||
| 6.600MΩ | ± (2.0% rdg + 5 dgts) | ||
| 66.00MΩ | ± (3.5% rdg + 5 dgts) | ||
| Open circuit volts | -0.8 Vdc typical , (-1.2 Vdc on 660 Ω range) | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| Capacitance | Range | Accuracy | |
| 6.600nF, 66.00nF | ±(3.0% rdg + 20 dgts) | ||
| 660.0nF, 6.600µF, 66.00µF,660.0µF | ±(3.0% rdg + 10 dgts) | ||
| 6.6 mF | ±(5.0% rdg + 10 dgts) | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| Diode Test | |||
| Test current | 1.0 mA (approximate) | ||
| Accuracy | ± (1.5% rdg + 5 dgts) | ||
| Open circuit volts | 3.2 Vdc typical | ||
| Audible indication | < 0.25 V | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| Continuity | |||
| Ranges | 660.0 Ω | ||
| Audible indication | ≤ 30 Ω | ||
| Response time | 500 ms | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| Frequency (Auto ranging) | Range | Accuracy | |
| 66.00 Hz, 660.0 Hz, 6.600k Hz, 66.00 kHz, 660.0 kHz, 1.000 MHz | ± (0.1% rdg + 3 dgts) | ||
| Sensitivity | 10 Hz to 1 MHz: > 3.5 V rms | ||
| Minimum pulse Width | >1 us | ||
| % Duty Cycle | |||
| Range | 5.0 % to 95.0 % | ||
| Resolution: | 0.1 % | ||
| Minimum Pulse Width | >10 us | ||
| Frequency range | 40 Hz to 20 kHz | ||
| Accuracy ( 5V logic ) | ± (2% rdg + 10 dgts) | ||
| Overload protection | 1000 VDC or 750 VAC rms | ||
| Technical Data – General Information | |
| Display | 3¾ digit liquid crystal display (LCD) (6600 count) with a 66-segment analog bar-graph |
| Polarity | Automatic, positive implied, negative polarity indication |
| Over range | (OL) or (-OL) is displayed |
| Zero | Automatic |
| Low battery indication | “?” is displayed when the battery voltage drops below the operating level |
| Auto power off | Approx. 30 minutes |
| Backlight | Backlight auto-off approx. 60 sec. |
| Measurement rate | 2.8 times per second, nominal |
| Analog bar-graph | 28 times per second |
| Operating environment | 0°C to 50°C (32°F to 122°F) at < 70% R.H. |
| Storage temperature | -20°C to 60°C (-4°F to 140°F) at < 80% R.H. with battery removed from meter |
| Temperature Coefficient | 0.1 × (specified accuracy) per °C. (0°C to 18°C, 28°C to 50°C) |
| Environmental | 2000m (6561.7 Feet), Indoor use |
| Jaw opening capability | 57 mm (2.0 in) conductor |
| Power | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery life | Typically 75 hours with carbon-zinc; 150 hour with alkaline |
| Dimensions | 283 x 105 x 50 mm (11.1 x 4 x 2.1 in.) |
| Weight | 559 gm (1.23 lb.) |
| Safety | LVD Meets EN61010-1:2001 and EN61010-2-032:2002, CAT III 1000V, CAT IV 600V, class II and pollution degree 2 |
| EMC | EN 61326-1:2006 This product complies with requirements of the following European Community Directives: 2004/108/EC (Electromagnetic Compatibility) and 2006/95/EC (Low Voltage) as amended by 93/68/EEC (CE Marking). However, electrical noise or intense electromagnetic fields in the vicinity of the equipment may disturb the measurement circuit. Measuring instruments will also respond to unwanted signals that may be present within the measurement circuit. Users should exercise care and take appropriate precautions to avoid misleading results when making measurements in the presence of electronic interference. |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 2 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Relative Zero, Duty Cycle, Low Battery Indication |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Test Leads with Set of Alligator Clips |
| Product Weight | 1.23 LBS |
| Product Height | 2.1 IN |
| Product Length | 11.1 IN |
| Product Width | 4.3 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.25 IN |
| Shipping Length | 12.00 IN |
| Shipping Width | 5.75 IN |
| Other Information | Display: 3? digit liquid crystal display (LCD) (6600 count) with a 66-segment analog bar-graph
Polarity: Automatic, positive implied, negative polarity indication Over range: (OL) or (-OL) is displayed Zero: Automatic Low battery indication: ?? is displayed when the battery voltage drops below the operating level Auto power off: Approx. 30 minutes Backlight: Backlight auto-off approx. 60 sec. Measurement rate: 2.8 times per second, nominal Analog bar-graph: 28 times per second Operating environment: 0?C to 50?C (32?F to 122?F) at 70% R.H. Storage temperature: -20?C to 60?C (-4?F to 140?F) at 80% R.H. with battery removed from meter Temperature Coefficient: 0.1 ? (specified accuracy) per ?C. (0?C to 18?C, 28?C to 50?C) Environmental: 2000m (6561.7 Feet), Indoor use Jaw opening capability: 57 mm (2.0 in) conductor Power: Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 Battery life: Typically 75 hours with carbon-zinc; 150 hour with alkaline Dimensions: 283 x 105 x 50 mm (11.1 x 4 x 2.1 in.) Weight: 559 gm (1.23 lb.) Safety: LVD Meets EN61010-1:2001 and EN61010-2-032:2002, CAT III 1000V, CAT IV 600V, class II and pollution degree 2 EMC: EN 61326-1:2006 This product complies with requirements of the following European Community Directives: 2004/108/EC (Electromagnetic Compatibility) and 2006/95/EC (Low Voltage) as amended by 93/68/EEC (CE Marking). However, electrical noise or intense electromagnetic fields in the vicinity of the equipment may disturb the measurement circuit. Measuring instruments will also respond to unwanted signals that may be present within the measurement circuit. Users should exercise care and take appropriate precautions to avoid misleading results when making measurements in the presence of electronic interference. |
