Fieldpiece SC640
- Frequency via leads and clamp
- Swivel clamp
- Duty cycle percentage
- Durable construction
- Clamp probe holder

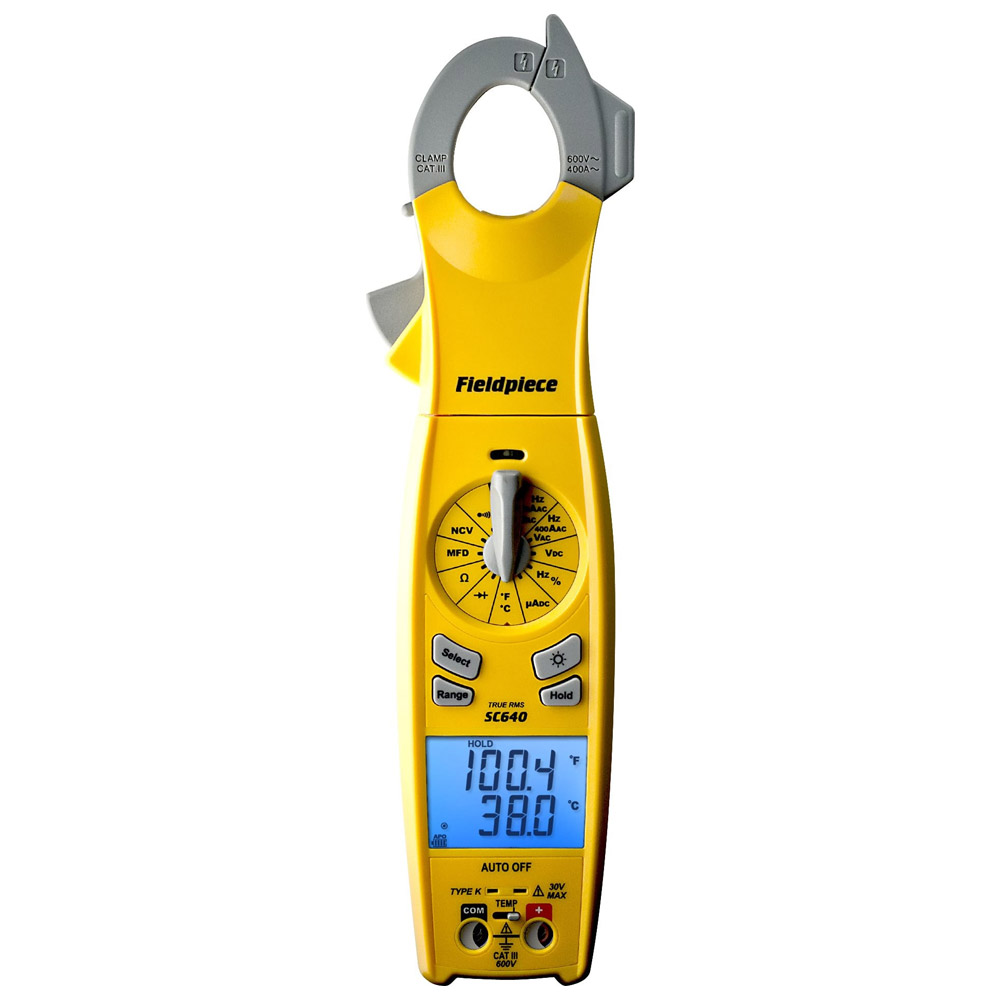

True RMS Clamp Meter with Swivel Head
The Fieldpiece SC640 clamp meter is packed with more features and measurements than any clamp meter in the HVACR industry. The loaded SC640 features lead storage, a swivel head, test lead holder, heavy duty magnetic strap, jaw flashlight, and a backlight on the dial so you can easily choose the right measurement in poorly lit spaces. Plus the SC640 hosts all the electrical measurements HVACR pros use everyday, along with features like True RMS, Inrush current, capacitance, temperature, duty cycle, and microamps DC.
The top-of-the-line SC640 clamp meter helps HVACR professionals do more everyday:
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Manufacturer Specs
| Specifications | |
| Display | 5000 count dual display |
| Backlight | 60 second duration with auto-off. Blue color. SC640 only. |
| Overrange | (OL) or (-OL) is displayed |
| Measurement rate | 3.3 times per second, nominal |
| Zero | Automatic |
| Operating environment | 32°F to 122°F (0°C to 50°C) at <70% relative humidity |
| Storage temperature | -4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed) |
| Accuracy | Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH |
| Temperature coefficient | 0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C (82°F to 122°F)] |
| APO (Auto Power Off) | Approx. 30 minutes |
| Power | Single standard 9-volt battery, NEDA 1604, JIS 006P, IEC 6F22 |
| Battery life | 200 hours typical alkaline (SC620); 100 hours typical alkaline (SC640) |
| Low battery indication | Battery icon blinks and «LO.bt» is displayed when the battery voltage drops below the operating level |
| Dimensions | 287.5mm(H) x 79.5mm(W) x 50.0mm(D) |
| Weight | Approx. 450g including battery |
| Altitude | Up to 6562 ft (2000m) |
| Overload protection | 600 VDC or 600VAC rms unless otherwise stated |
| Test leads | Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above. Included test leads are gold-plated and have removeable safety caps. |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Current DC | 500 uA (0.0005 A) |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.2 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Manual |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | • Swivel-Head Clamp • Magnetic Strap • Lead Storage • Dual Display • Clamp Test-Lead Holder • Frequency via Leads & Clamps • Dial Backlight • Jaw Flashlight • LCD Backlight |
| Product Weight | 1 LBS |
| Product Height | 11.32 IN |
| Product Length | 1.97 IN |
| Product Width | 3.13 IN |
| Shipping Weight | 1.7 LBS |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 14.5 IN |
| UPC | 872641003067 |
| Shipping Length | 3.25 IN |
| Shipping Width | 4 IN |
