FLUKE 325 PRO TE KIT
 |
|

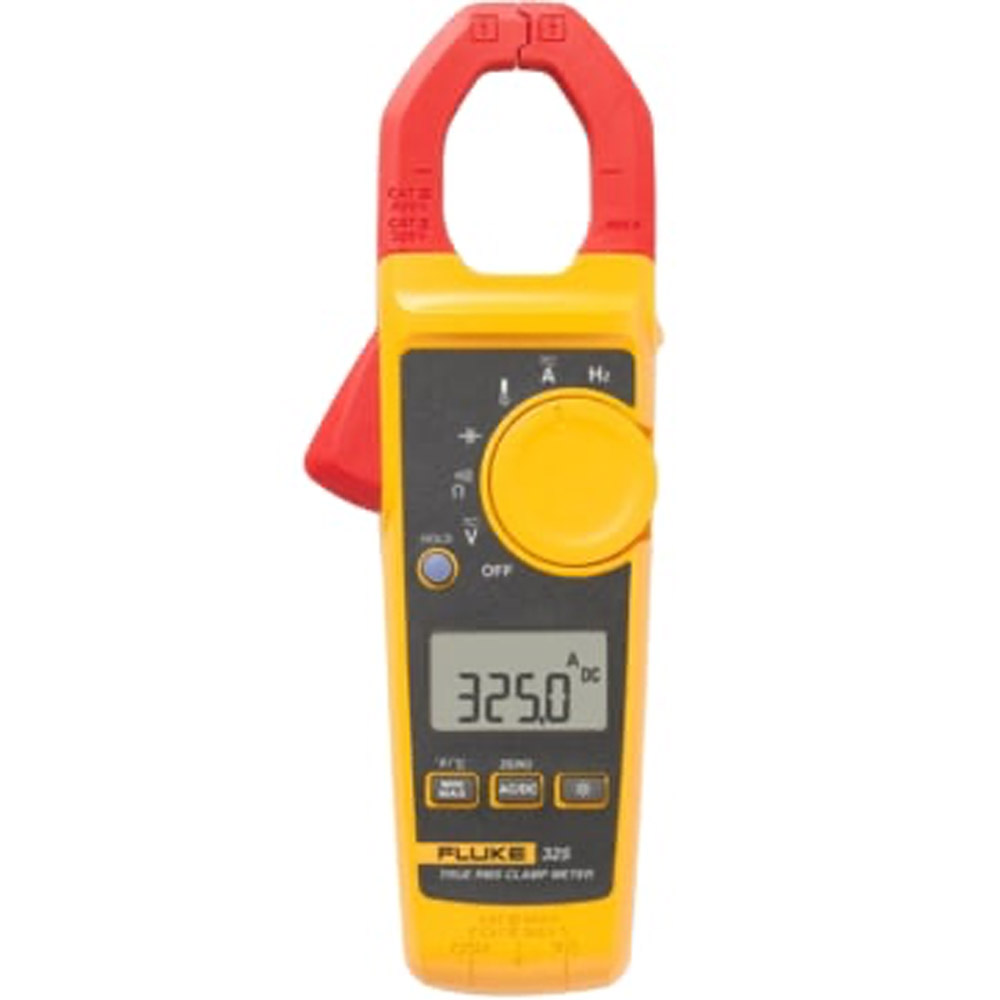

Fluke 325 True-RMS Clamp Meter Fluke rugged. Fluke reliable. Fluke precise.
The Fluke 325 Clamp Meter is the top of the 320 Series Clamp Meters. Designed to perform in the toughest environments and provide noise-free, reliable results, you can trust the 325 to help you confidently diagnose all kinds of electrical problems. It features True RMS measurements, optimized ergonomics, a large backlight display, and a rugged compact design to measure current up to 400 A in tight cable compartments. You can also use it to measure temperature, capacitance, AC/DC current and frequency. Commercial and residential electricians use the 325 to verify the presence of load current, AC voltage, and continuity of circuits, switches, fuses and contacts. Frequency measurements allow checking of portable generators; dc current testing battery backups and solar storage equipment.
| Quick Comparison Chart | |||
| 323 | 324 | 325 | |
| AC Current | 400A TRMS | 40/400A TRMS | 40/400A (AC TRMS) |
| AC/DC Voltage | 600V | 600V | 600V |
| Resistance | 400.0 Ω/4000 Ω | 400.0 Ω/4000 Ω | 400.0 Ω/4000 Ω |
| Continuity | ≤ 70 Ω | ≤ 30 Ω | ≤ 30 Ω |
| Capacitance | • | 100.0 μF to 1000 μF | 100.0 μF to 1000 μF |
| Contact Temperature | • | 14.0 °F to 752.0 °F (requires 80BK-A or 80AK-A + K-type Probe) | 14.0 °F to 752.0 °F (requires 80BK-A or 80AK-A + K-type Probe) |
| Frequency | • | • | 5.0 Hz to 500.0 Hz |
| Backlight | • | Yes | Yes |
Manufacturer Specs
| General Specifications | ||
| AC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits (45 Hz to 65 Hz) 2.5% ± 5 digits (65 Hz to 400 Hz) |
|
| DC current | Range | 40.00 A / 400.0 A |
| Accuracy | 2% ± 5 digits | |
| AC voltage | Range | 600.0 V |
| Accuracy | 1.5% ± 5 digits | |
| DC voltage | Range | 600.0 V |
| Accuracy | 1.0% ± 5 digits | |
| Resistance | Range | 400.0 Ω / 4000 Ω / 40.00 kΩ |
| Accuracy | 1.0% ± 5 digits | |
| Continuity | ≤ 30 Ω | |
| Capacitance |
0 to 100.0 μF / 100μF to 1000 μF
|
|
| Frequency | 5.0 Hz to 500.0 Hz | |
| AC response | True-RMS | |
| Backlight | Yes | |
| Data hold | Yes | |
| Contact temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | Yes | |
| Size | H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | |
| Weight | 283 g | |
| Category rating | CAT III 600 V CAT IV 300 V |
|
| Warranty | Two-year | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 30 MM (1.18 IN) |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Slim, ergonomic design. Large, easy to read backlight display. CAT IV 300V/CAT III 600 V safety rating. Hold button. Two-year warranty. Soft carrying case. |
| Warranty | 2 YEARS |
| Safety Approval | CE, CSA |
| Product Weight | 1.59 LBS |
| Product Height | 2.95 IN |
| Product Length | 9.65 IN |
| Product Width | 4.33 IN |
| Shipping Weight | 1.75 LBS |
| Data Logging | No |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.95 IN |
| UPC | 095969623766 |
| Shipping Length | 9.65 IN |
| Shipping Width | 4.33 IN |
