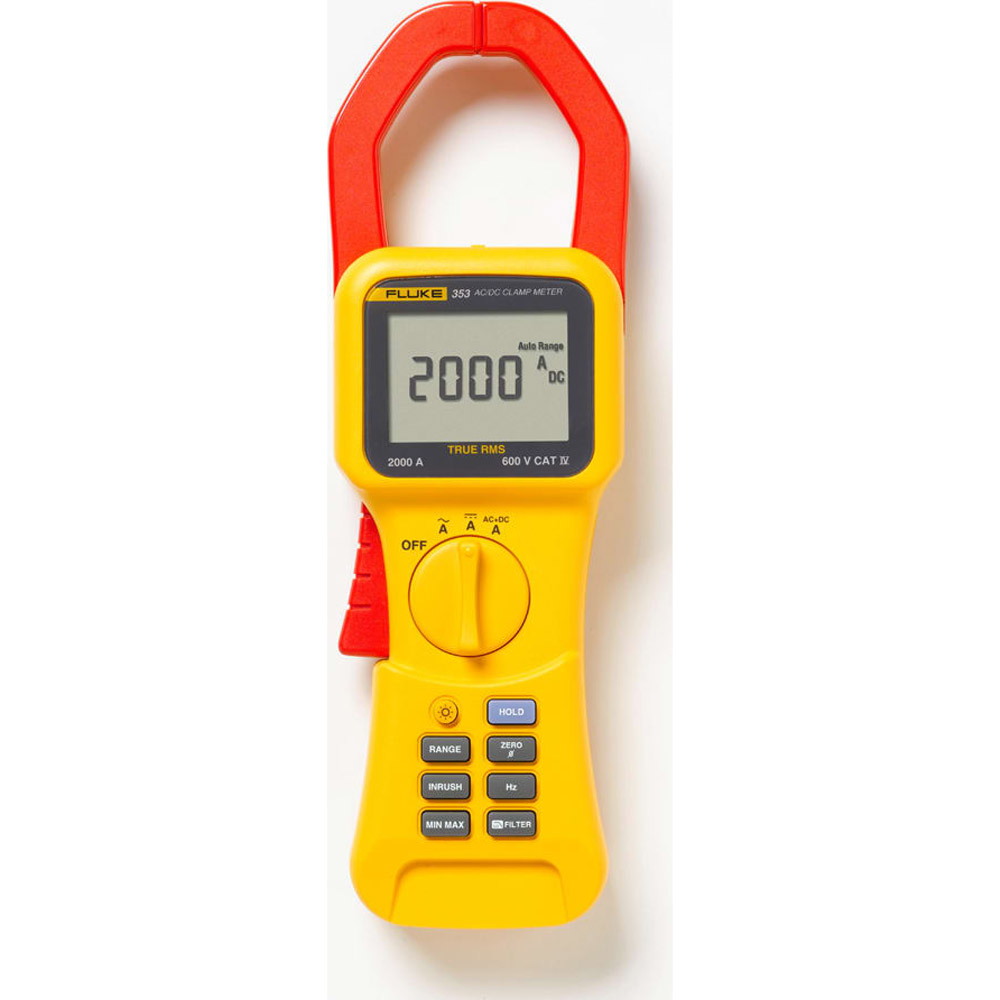

Name: Pinza amperimétrica Fluke 353 True-RMS 2000 A Clamp Meter (350 Series)
SKU: ME166-PAFL-353
Price: 34696.45 MXN
Availability: InStock

Descripción

Versatile and rugged tools for applications with high currents.

Confidently take reliable readings with the True-rms, Fluke 355 and 353 digital clamp meters; the tools of choice for high current clamp-on amp meter measurement up to 2000 A. The extra-wide jaw easily clamps around large conductors, typically found in high-current applications. The extra rugged design and CAT IV 600 V, CAT III 1000 V ratings add an extra element of user protection when taking high-powered measurements.

Accurate peak measurements can be taken using the in-rush current mode, ideal for motors and inductive loads.

Manufacturer Specs

Electrical Specifications
Current measurement dc and ac 10 Hz to 100 Hz	Range : 40 A	Resolution	10 mA
		Accuracy, A	1.5 % rdg + 15 digits
		Trigger Level for Inrush	0.50 A
		Trigger Level for Hz Filter OFF	2.50 A
		Trigger Level for Hz Filter ON	0.50 A
	Range : 400 A	Resolution	100 mA
		Accuracy, A	1.5 % rdg + 5 digits
		Trigger Level for Inrush	5.0 A
		Trigger Level for Hz Filter OFF	2.5 A
		Trigger Level for Hz Filter ON	2.5 A
	Range : 2000 A; 1400 ac rms	Resolution	1 A
		Accuracy, A	1.5 % rdg + 5 digits
		Trigger Level for Inrush	5 A
		Trigger Level for Hz Filter OFF	8 A
		Trigger Level for Hz Filter ON	8 A
Crest Factor (50/60 Hz)	Range : 40 A	Crest Factor*	2 @ 33 A, 2.4 @ 27 A
	Range : 400 A	Crest Factor*	2 @ 330 A, 2.4 @ 270 A
	Range : 2000 A; 1400 ac rms	Crest Factor*	2 @ 1000 A, 2.4 @ 833 A
Current measurement ac 100.1 Hz to 1 kHz	Range : 40 A	Resolution:	10 mA
		Accuracy > 10 A:	3.5 % rdg + 15 digits
		Trigger Level for Inrush:	0.50 A
		Trigger Level for Hz Filter OFF:	2.50 A
		Trigger Level for Hz Filter ON:	0.50 A
	Range : 400 A	Resolution:	100 mA
		Accuracy > 10 A :	3.5 % rdg + 5 digits
		Trigger Level for Inrush:	5.0 A
		Trigger Level for Hz Filter OFF:	2.5 A
		Trigger Level for Hz Filter ON:	2.5 A
	Range : 2000 A; 1400 ac rms	Resolution:	1 A
		Accuracy > 10 A:	3.5 % rdg + 5 digits
		Trigger Level for Inrush:	5 A
		Trigger Level for Hz Filter OFF:	8 A
		Trigger Level for Hz Filter ON:	8 A
Voltage measurement (355 only) dc and ac 10 Hz to 100 Hz (600 V and 1000 V ranges have 10 % over range to 660 V and 1100 V respectively.)	Range : 4 V	Resolution:	1 mV
		Accuracy:	1 % rdg + 10 digits
		Trigger Level for Hz Filter OFF:	0.050 V
		Trigger Level for Hz Filter ON:	0.050 V
	Range : 40 V	Resolution:	10 mV
		Accuracy:	1 % rdg + 5 digits
		Trigger Level for Hz Filter OFF:	0.25 V
		Trigger Level for Hz Filter ON:	0.25 V
	Range : 400 V	Resolution:	100 mV
		Accuracy:	1 % rdg + 5 digits
		Trigger Level for Hz Filter OFF:	6 V
		Trigger Level for Hz Filter ON:	6 V
	Range : 600 V ac rms	Resolution:	1 V
		Accuracy:	1 % rdg + 5 digits
		Trigger Level for Hz Filter OFF:	6 V
		Trigger Level for Hz Filter ON:	6 V
	Range : 1000 V dc	Resolution:	1 V
		Accuracy:	1 % rdg + 5 digits
Voltage measurement (355 only) ac 100.1 Hz to 1 kHz (600 V and 1000 V ranges have 10 % over range to 660 V and 1100 V respectively.)	Range : 4 V	Resolution:	1 mV
		Accuracy:	3 % rdg + 10 digits
		Trigger Level for Hz Filter OFF:	0.050 V
		Trigger Level for Hz Filter ON:	0.050 V
	Range: 40 V	Resolution:	10 mV
		Accuracy:	3 % rdg + 5 digits
		Trigger Level for Hz Filter OFF:	0.25 V
		Trigger Level for Hz Filter ON:	0.25 V
	Range: 400 V	Resolution:	100 mV
		Accuracy:	3 % rdg + 5 digits
		Trigger Level for Hz Filter OFF:	6 V
		Trigger Level for Hz Filter ON:	6 V
	Range: 600 V ac rms	Resolution:	1 V
		Accuracy:	3 % rdg + 5 digits
		Trigger Level for Hz Filter OFF:	6 V
		Trigger Level for Hz Filter ON:	6 V
Ohms measurement (355 only)	Range : 400 Ω	Resolution:	0.1 Ω
		Accuracy:	1.5 % + 5 digits
	Range: 4 kΩ	Resolution:	1 Ω
		Accuracy:	1.5 % + 5 digits
		Range: 40 kΩ	Resolution:	10 Ω
			Accuracy:	1.5 % + 5 digits
	Range: 400 kΩ		Resolution:	100 Ω
			Accuracy:	1.5 % + 5 digits
Continuity beeper (355 only)		On at ≤ 30 Ω
		Off at ≥ 100 Ω
Frequency measurement	Measurement range	5.0 Hz to 1 kHz
	Resolution	0.1 Hz (15 Hz to 399.9 Hz); 1 Hz (400 Hz to 1 kHz)
	Accuracy – 5.0 Hz to 100 Hz	0.2 % + 2 counts
	Accuracy – 100.1 Hz to 1 kHz	0.5 % + 5 counts
	Trigger level	Refer to current and voltage tables

* Add 2 % to error spec for CF > 2

General Specifications
Batteries	Six 1.5 V AA NEDA 15 A or IEC LR6
Battery life (with typical usage, backlight off)	100 hours
Test leads	Rated to 1000 V
Weight	.814 kg (1.8 lb)
Jaw size	58 mm (2.28 in)
Dimensions (L x W x D)	300 mm x 98 mm x 52 mm (12 in x 3.75 in x 2 in)
Safety rating	IEC 61010-2-032, 600 V CAT IV, 1000 V CAT III

Environmental Specifications
Operating temperature	32 °F to + 122 °F (0 °C to +50 °C)
Storage temperature	-4 °F to 140 ?F (-20 °C to +60 °C)
Operating humidity	0 to 95 % (non-condensing)
Operating altitude	2000 m
Storage altitude	10,000 m
IP rating	42 (indoor use only)
Drop test requirements	1 m
EMI, RFI, EMC	FCC part 15, IEC/EN 61326-1:1997 class B, IEC/EN 61326:1997 3V/m, performance criteria B, EN61325
Temperature coefficients	Current:	0.1 % of reading per °C outside 22 °C to 24 °C
	Voltage:	0.1 % of reading per °C outside 22 °C to 24 °C

Tech Specs

Clamp Meters/Clamp Meters Template
True RMS	Yes
Maximum Current AC	2000 A
Maximum Current DC	2000 A
Maximum Voltage AC	600 V
Maximum Voltage DC	1000 V
Maximum Conductor Size	2.18 IN
Resistance	No
Capacitance	No
Auto Ranging/Manual	Auto Ranging
In-Rush Current	Yes
Test Equipment General Attributes
Unique Features	The large 58 mm (2.3 in) jaw capacity is suitable for large or multiple conductors. Quickly analyze readings using the MIN, MAX, and AVG functions. A large backlit display allows for easy visibility in low-lit areas.
Warranty	3 YEARS
Safety Approval	CE, CSA
IP Rating	IP42
Product Weight	1.8 LBS
Product Height	2 IN
Product Length	12 IN
Product Width	3.75 IN
Data Logging	No
Calibration Included	None
CA Residents	Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Power Supply Voltage	Battery Powered
Country of Origin	China
Shipping Height	4.30 IN
Shipping Length	14.30 IN
Shipping Width	8.40 IN
