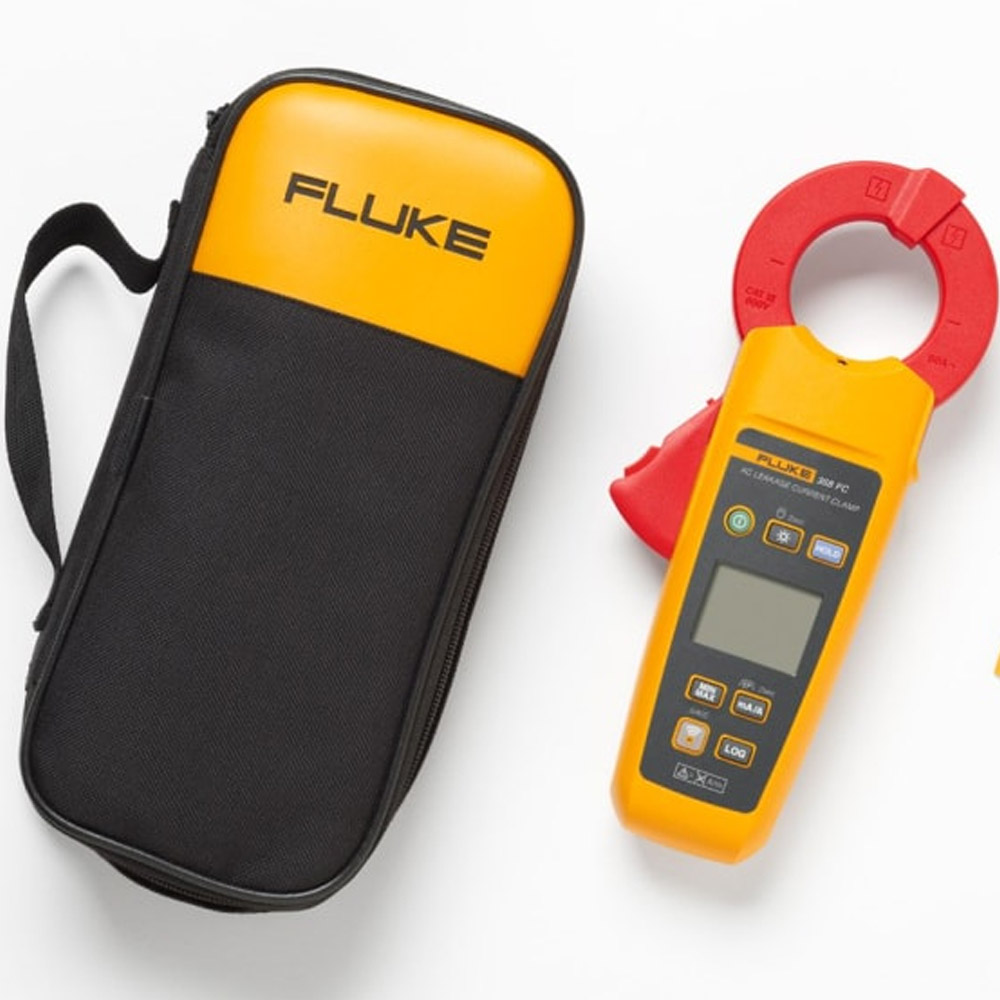

Fluke 368 FC – Wireless Leakage Current Clamp Meter (40mm Jaw)
- Highest resolution of 1μA, measure up to 60A
- Selectable filter function eliminates unwanted noise
- Max/Min/Average readings and hold function
- Forward-facing LED worklight for use in dark wiring cabinets
The Fluke 360 Series of true-rms leakage current clamp meters help users detect, document, record and compare leakage current readings over time as a means of preventing unplanned downtime, and identifying intermittent GFCI and RCD trips, without taking equipment off line.
The Fluke 368 FC and 369 FC have large diameter jaws (40 mm for the 368 FC, 61 mm for the 369 FC) for work with larger conduc- tors. The clamp’s jaw is fully shielded to accurately capture very small leakage signals, and to minimize external electromagnetic interference.
The 368 FC and 369 FC also offer wireless data connectivity via Fluke Connect. As part of Fluke Connect—the industry’s largest system of software and more than 40 wireless test tools—the 368 FC and 369 FC allow you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.
The 368 FC and 369 FC also offer wireless data connectivity via Fluke Connect. As part of Fluke Connect—the industry’s largest system of software and more than 40 wireless test tools—the 368 FC and 369 FC allow you to track changes in leakage current over time, helping to identify potential problems before they turn into major failures.
Manufacturer Specs
| Technical specifications | ||
| Measurement function | Alternating current | |
| AC ampere range | 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A | |
| Range selection | mA A: manual selection 3 mA, 30 mA, 300 mA: automatic selection 3 A, 30 A, 60 A: automatic selection |
|
| Range/Resolution | 3 mA [1] /0.001 mA 30 mA/0.01 mA 300 mA/0.1 mA 3 A/0.001 A 30 A/0.01 A 60 A/0.1 A |
|
| Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz) [2] |
368/368 FC 3 mA – 30 A 60 A |
1 % + 5 digits 2 % + 5 digits |
| Accuracy – filter activated (40 to 70 Hz), filter off (40 to 1 kHz) [2] |
369/369 FC 3 mA to 30 A 60 A |
1.5 % + 5 digits 2 % + 5 digits |
| Frequency | 40 Hz to 1 kHz | |
| Crest factor | 3 | |
| After calibration accuracy is valid for one year. Accuracy is expressed as ± (% of reading + digits). Reference conditions 23 ± 5 °C and a maximum relative humidity of 80 %. [1] The minimum value is 10 µA rms. [2] Outside of the TC/°C 18 °C to 28 °C, 0.02 + 1 |
||
| Physical | ||
| Display (LCD) | Digital readout: 3300 count | |
| Display refresh rate | 4 times/sec | |
| Maximum conductor diameter | 368/368 FC 369/369 FC |
40 mm 61 mm |
| Size (wxhxd) | 368/368 FC 369/369 FC |
101 mm x 234 mm x 46 mm 116 mm x 257 mm x 46 mm |
| Weight | 368/368 FC 369/369 FC |
500 g 600 g |
| Battery | 2 AA, IEC LR6, NEDA 15A, alkaline | |
| Battery life | Expected battery life, without using backlight and spotlight, is more than 150 hours | |
| Automatic shut-down | Meter automatically shuts down after 15 minutes of inactivity. | |
| Safety and environmental specifications | ||
| General safety | IEC 61010-1: Pollution Level 2 | |
| Measurement safety | IEC 61010-2-032: CAT III 600 V | |
| Operating temperature | -10 °C to +50 °C | |
| Storage temperature | -40 °C to +60 °C | |
| Operating humidity | Non-condensing (<10 °C) 90 % relative humidity (10 °C to 30 °C) 75 % relative humidity (30 °C to 40 °C) 45 % relative humidity (40 °C to 50 °C) |
|
| Protection class | IEC 60529: IP30 (jaw closed) | |
| Operating altitude | 2000 m | |
| Storage altitude | 12000 m | |
| Current sensor action category | IEC 61557-13: Class 1, = 100 A/m | |
| Electromagnetic compatibility (EMC) | ||
| International | ||
| IEC 61326-1 | Industrial Electromagnetic Environment | |
| CISPR 11 | Group 1 Class B | |
| Group 1 | Generated inside the equipment and / or use radio frequency energy associated with conducting the energy for the device’s own internal functions is essential. |
|
| Class B | Equipment for home appliances and residential buildings directly connected to a low voltage power supply network equipment. When this device is connected to a test object, it may exceed the emission levels produced by CISPR 11 requirements. _________________________________________________________________________ Korea (KCC): A type of equipment (radio and communication equipment industry) |
|
| Class A | This product meets the requirements of industrial electromagnetic equipment, vendors or users should be aware of this. This device is intended for use in a commercial environment, instead of the home environment. _________________________________________________________________________ USA (FCC): 47 CFR 15 B Subpart. In accordance with section 15.103 provides that the products are considered tax-free device. |
|
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 60 A |
| Maximum Conductor Size | 40 MM (1.57 IN) |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Large 40 mm diameter jaw |
| Warranty | 1 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Wifi |
| IP Rating | IP30 |
| Product Weight | 500 GRAMS (1.10 LBS) |
| Product Height | 46 MM (1.81 IN) |
| Product Length | 234 MM (9.21 IN) |
| Product Width | 101 MM (3.98 IN) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
