Pinza amperimétrica Fluke 376FC-IFLEX36 – 1000A AC/DC TRMS Clamp Meter with 36in iFlex and Hard Case

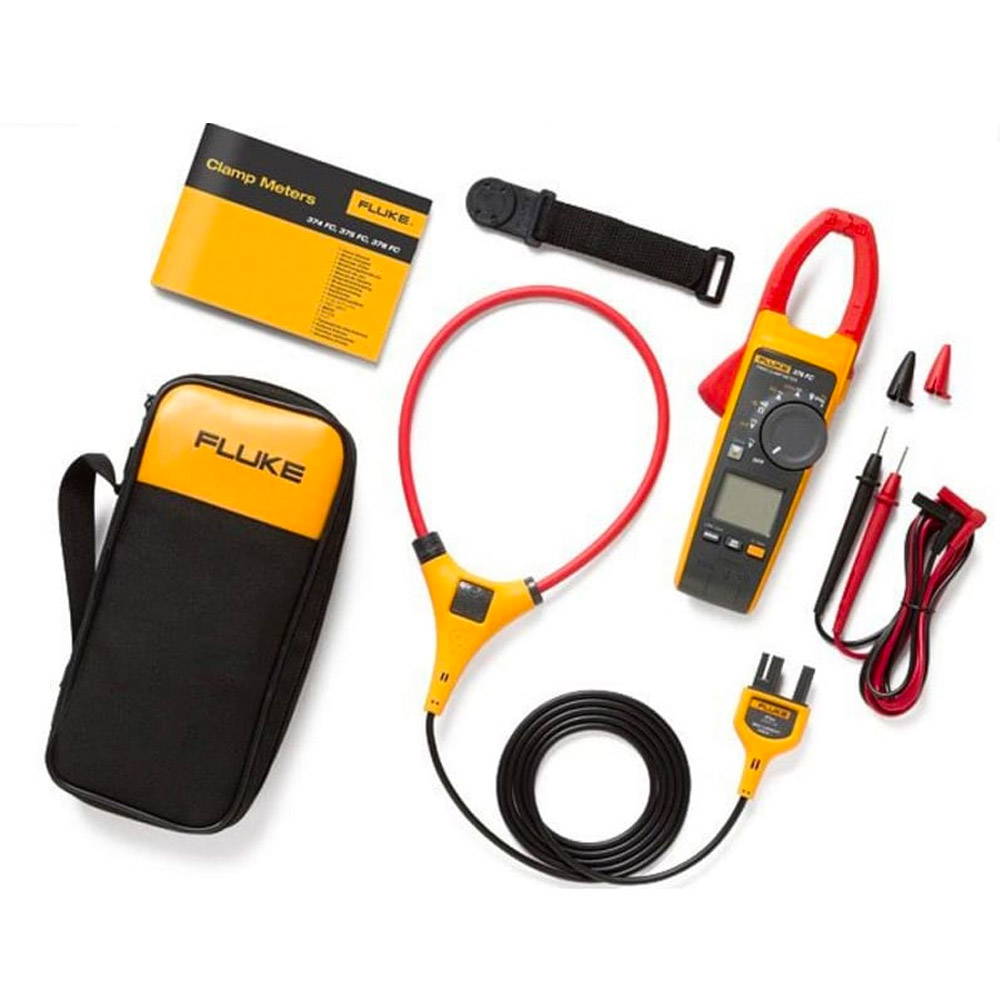

Fluke 376FC-IFLEX36 – 1000A AC/DC TRMS Clamp Meter with 36in iFlex and Hard Case

From the Fluke 370 FC Series comes the Fluke 376 FC True-rms Clamp Meter with iFlex, an advanced troubleshooting tool for industrial and commercial electricians. This clamp meter measures True-rms AC current and voltage, DC current and voltage, inrush current, resistance, and capacitance. The 375FC and 376FC also measure frequency and DC millivolts. The 376 is part of the Fluke Connect family of wireless test tools that enable you to log, trend and monitor measurements while remaining safely away from the arc flash zone through Bluetooth connectivity. The iFlex current probe allows access to wires in tight spaces and increases the measurement range of the meter to 2500A AC. The 376 FC clamp meter carries a CAT III 1000 V, CAT IV 600 V safety rating.

Locate Difficult to Find Problems

The 376 FC clamp meter uses an integrated low-pass filter for accurate measurements of non-linear signals, such as adjustable speed drives, electronic ballasts, and other non-linear loads. The clamp also uses proprietary inrush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it. Knowing the value of inrush current can help a technician locate a startup problem, whether it is in the motor or in the starting circuit. Inrush measurements are usually recorded in a preventative maintenance log for future reference.

Fluke Connect

Fluke Connect software collects, stores, and makes viewable machine data from more than 80 Fluke tools and sensors. Measurements can now be stored in the cloud, where teams can always access the data on their smart device or computer. Whether your maintenance and reliability team is gathering data from condition monitoring sensors or from portable test tools, they now have all the data they need to make critical decisions and complete necessary jobs.

• Take live readings on-the-go
  • Decrease time-consuming, routine rounds by installing remote sensors that upload data to the cloud
• Trending and graphing data
  • View asset trends on graphs from connected condition monitoring devices
• Receive alarms from anywhere
  • Send alarms to smart devices when assets deviate from pre-set thresholds, including data leading up to the alarm

iFlex Flexible Current Probes

The Fluke iFlex flexible current probes expand the measurement range of the select Fluke meters to 2500 A AC while providing the ultimate measurement flexibility. The iFlex probes connect directly to the meter, displaying current measurements without error prone scaling factors. The 1.8 m (6 ft) cord allows separation between the measurement location and the clamp meter making it easier to view the display. The large loop size and thin cross section allow measurement of awkward sized conductors and improved wire access in crowded spaces.

Below is breakdown of the models and features in the 370 FC Series:
