Descripción

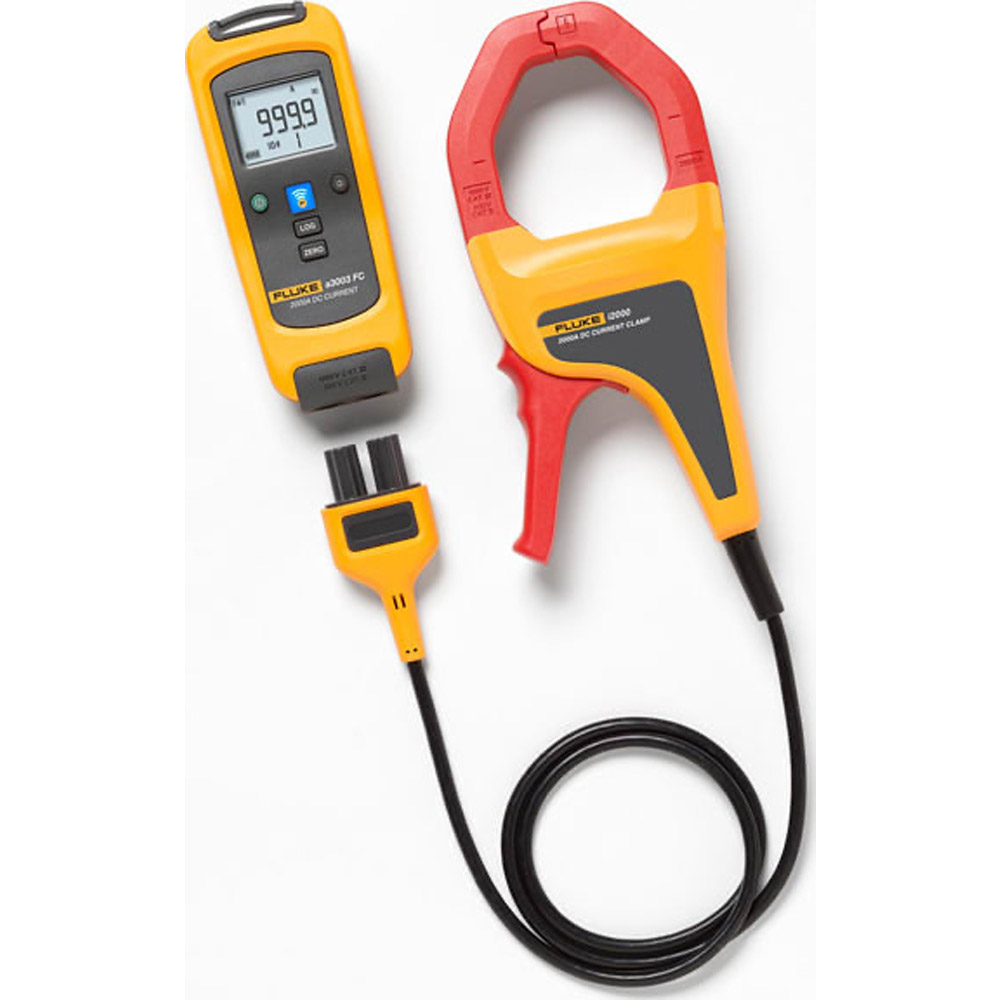

Fluke A3003FC Wireless 2000 AMP DC Clamp Meter
A fully functional current clamp meter that wirelessly relays measurements to other Fluke Connect™ enabled master units, listed below.
- Fluke 3000 FC DMM
- Fluke TiX560/520 Infrared Camera
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
Manufacturer Specs
| Fluke A3003 FC Specifications | |
| Range | 1.0 A to 999.9 A dc, 1000 A to 2000 A dc |
| Resolution | 0.1 A, 1 A |
| Accuracy | 2 % ± 5 digits, 2.5 % ± 5 digits |
| LCD w/backlight | 3½ digits |
| Log rate/interval | 1 sec minimum/adjustable by PC or front panel |
| Battery type | 2 AA, NEDA 15 A, IEC LR6 |
| Battery life | 120 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHZ ISM Band |
| RF communication range | Open air, unobstructed (up to 20 m) |
| Operating temperature | Obstructed, sheetrock wall (up to 6.5 m) |
| Obstructed, concrete wall or steel electrical enclosure (up to 3.5 m) | |
| -10 °C to +50 °C | |
| Storage temperature | -40 °C to +60 °C |
| Temperature coefficient | Add 0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C) |
| Operating humidity | 90 % at 35 °C 75 % at 40 °C 45 % at 50 °C |
| Altitude | Operating: 2,000 m Storage: 12,000 m |
| EMC | EN 61326-1:2013 |
| Safety compliance | IEC 61010-1, CAT IV 600 V, CAT III 1000 V, 3rd edition |
| Safety rating | CAT IV 600 V, CAT III 1000 V |
| Certifications | cCSAus, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Jaw opening | 64mm |
| Size (HxWxD) | 16.5 cm x 6.35 cm x 1.4 cm (6.5 in x 2.5 in x 1.4 in) |
| Weight | .65 kg (1.75 lb) |
(Not compatible with Fluke CNX test tools)
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Height | 11.75 IN |
| Product Length | 11.00 IN |
| Product Width | 4.50 IN |
| Country of Origin | China |
| Shipping Height | 11.75 IN |
| Shipping Length | 11.00 IN |
| Shipping Width | 4.50 IN |
