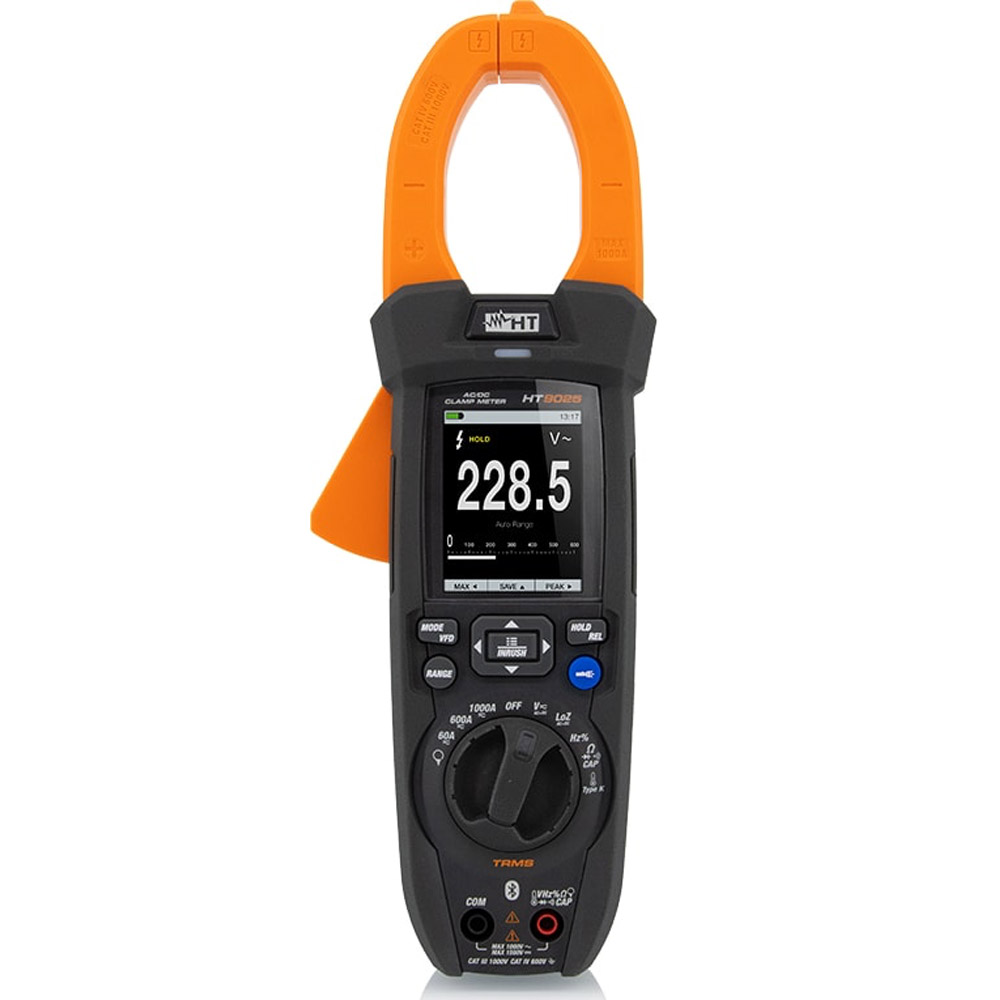

HT Instruments HT9025 – 1000VAC/1500VDC Current Clamp with DATA LOGGER Function
- 40mm maximum diameter for clamp
- 1000VAC/1500VDC AC/DC voltage
- CAT IV 600V CAT III 1000V
- 6000 measuring counts
- LI-ION battery power supply
HT Instruments HT9025 has been designed to measure AC/DC current up to 1000A, DC voltage up to 1500V and AC voltage up to 1000V in TRMS reaching CAT IV 600V and CAT III 1000V in compliance with safety standard IEC/ EN61010-1. The clamp is provided with a display with 6000 measuring spots with backlight and bargraph to allow for a simple reading even in poorly lit environments. HT9025 also measures Resistance, Frequency, Capacity and Temperature with K-type probe.
Manufacturer Specs
| Electrical Specifications | ||||
| Accuracy calculated as ±[%readings + (dgt x resolution)] referred to 18°C ÷ 28°C, <75%RH | ||||
| DC Voltage | ||||
| Range | Resolution | Accuracy | Input impedance | Overload protection |
| 600.0mV | 0.1mV | ±(0.8%rdg + 8dgt) | >10MΩ | 1500VDC |
| 6.000V | 0.001V | ±(0.5%rdg + 5dgt) | ||
| 60.00V | 0.01V | |||
| 600.0V | 0.1V | ±(0.8%rdg + 5dgt) | ||
| 1500V | 1V | |||
| AC TRMS Voltage | ||||
| Range | Resolution | Accuracy(*) | Input impedance | Overload protection |
| 6.000V | 0.001V | ±(1.2%rdg + 5dgt) (50 ÷ 60Hz) ±(2.5%rdg + 5dgt) (61 ÷ 1kHz) |
>10MΩ | 1500VDC |
| 60.00V | 0.01V | |||
| 600.0V | 0.1V | |||
| 1000V | 1V | |||
| (*) Accuracy specified from 10% to 100% of the measuring range, sinusoidal waveform Accuracy of PEAK function: ±(10%reading), Response time of PEAK function: 1ms For a non-sinusoidal waveform, accuracy is: ±(10.0%rgd + 20digits) Integrated NCV sensor for AC voltage detection: LED on for phase-earth voltage in range 100V – 1000V, 50/60HzSee Data Sheet for Full Specifications |
||||
| Mechanical characteristics | |
| Dimensions (L x La x H): | 280 x 100 x 50mm |
| Weight (battery included): | 505g |
| Mechanical protection: | IP40 |
| Max conductor size: | 40mm |
| Power supply | |
| Battery type: | 1×7.4V rechargeable Li-ION battery, 1200mAh |
| Battery charger power supply: | 100/240VAC, 50/60Hz, 12VDC, 2A |
| Low battery indication: | Battery symbol on the display |
| Recharging time: | approx. 2 hours |
| Battery duration: | approx. 8 hours (Bluetooth deactivated) approx. 7 hours (active Bluetooth) |
| Auto power OFF: | after 15 ÷ 60min minutes’ idling (may be disabled) |
| Display | |
| Characteristics: | color TFT, 6000 dots with bargraph |
| Sampling frequency: | 3times/s |
| Conversion: | TRMS |
| Functions: | Data HOLD MAX/MIN/PEAK(1ms) RANGE REL Laser pointer (only ECLIPSE) White LED illuminator: Bluetooth connection (BLE 4.0) for connection to mobile devices by using HTMercury APP |
| Internal memory | |
| Characteristics: | max 128 snapshots (BMP format) max 16 recordings or 34 hours (SI=1s) sampling interval:1s÷15min duration single recording: max 10 hours |
| Environmental conditions for use | |
| Reference temperature: | 18°C ÷ 28°C |
| Operating temperature: | 5°C ÷ 40°C |
| Allowable relative humidity: | <80%RH |
| Storage temperature: | -20°C ÷ 60°C |
| Storage humidity: | <80%RH |
| Reference guidelines | |
| Safety: | IEC/EN 61010-1 |
| EMC: | IEC/EN61326-1 |
| Insulation: | double insulation |
| Pollution degree: | 2 |
| Max height of use: | 2000m |
| Measurement category: | CAT IV 600V, CAT III 1000V to ground |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1500 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1500 V |
| Maximum Conductor Size | 40 MM (1.57 IN) |
| Resistance | Yes |
| Capacitance | Yes |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Safety Approval | RoHS |
| Interfaces I/O | Bluetooth |
| Storage | Internal Memory |
| IP Rating | IP40 |
| Product Weight | 1.11 LBS |
| Product Height | 50 MM (1.97 IN) |
| Product Length | 280 MM (11.02 IN) |
| Product Width | 100 MM (3.94 IN) |
| Shipping Weight | 3.38 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 90303370 |
| ECCN Number | 8.05287E+12 |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Italy |
