Descripción

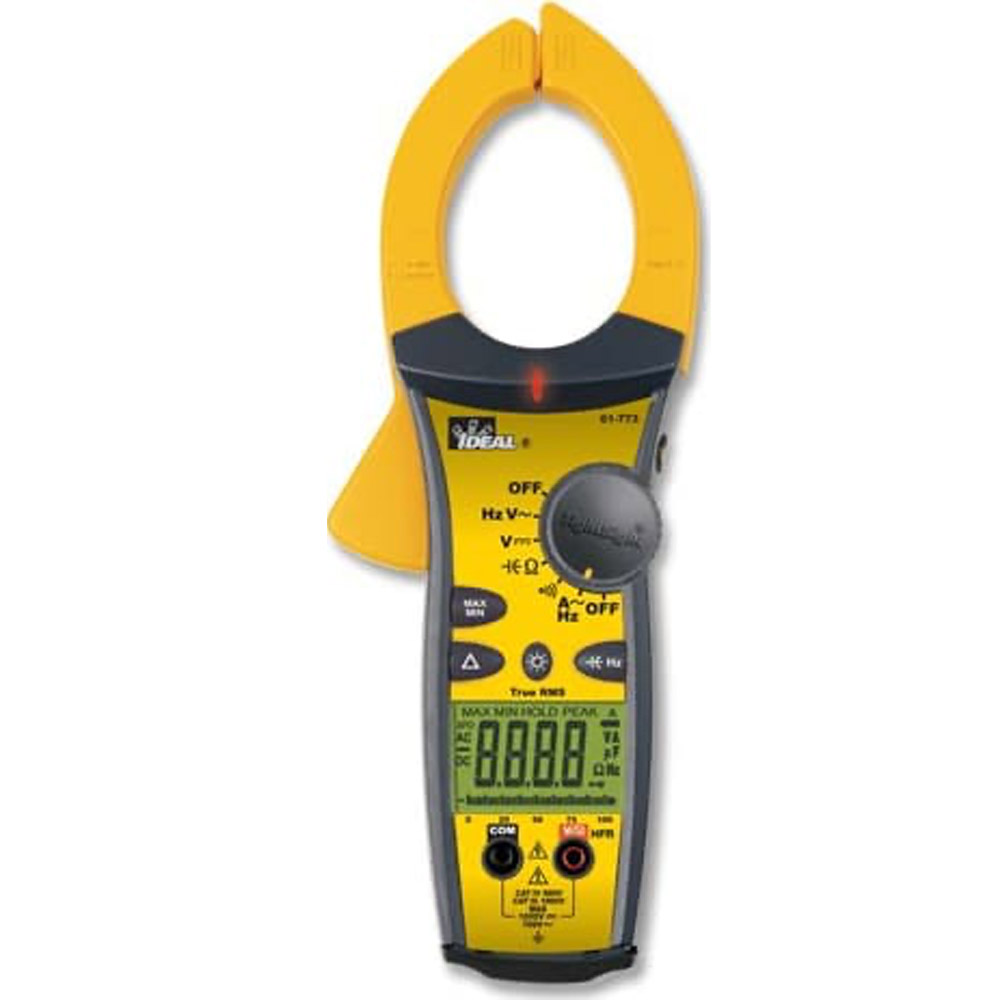

Ideal 61-765
- 660 A True RMS clamps for a variety of industrial and commercial environments
- Unique TightSight bottom display makes hard-to-reach measurements convenient
- Easy-to-read displays feature large numbers and green glowing backlight
- Measures AC Current
- Tapered jaws with hook tip
600Amp AC/DC TightSight Clamp Meter
The new feature-rich IDEAL TightSight Clamp Meters are built to professional quality standards to withstand tough use in commercial and industrial settings. The High Frequency Rejection (HFR) feature measures accurately even in noisy electrical environments. For everything from load measurement to troubleshooting industrial motors and adjustable speed drives (ASDs), the new TightSight Clamps bring speed, accuracy, safety and ease-of-use together in one rugged meter line.
Pro Quality:
- Rugged Case and Dial Construction
- Super Bright Backlight with Large Numbers and Symbols
- Confidence in Battery Power for Accurate Readings
- Retains Calibration
- Reports True RMS Readings
- Ergonomic for Gloved Hand Use
- Immune to Electrically Noisy Environments
Manufacturer Specs
| Range and Resolution | |||||
| 61-763 | 61-765 | 61-773 | 61-775 | Accuracy | |
| AC Current | 0.0-660.0A | 0.0-999.9A | 2.0% | ||
| DC Current | – | 0.0-660.0A | – | 0.0-999.9A | 2.0% |
| AC Voltage | 0.0-750.0V | 1.0% | |||
| DC Voltage | 0.0-999.9V | 1.0% | |||
| Resistance | 0.0-9999Ω | 1.5% | |||
| Capacitance | 0.0-999.9µF | 5.0% | |||
| Continuity | 0.0-999.9Ω | Audible at >30Ω | |||
| Frequency | 20.0-400.0Hz | 0.5% | |||
| Jaw Size | 1.42″ (36mm) | 2″ (51mm) | – | ||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 660 A |
| Maximum Current DC | 660 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 999.9 V |
| Resistance | Yes |
| Capacitance | Yes |
Test Equipment General Attributes |
|
| Unique Features | DC current |
| Warranty | 2 YEARS |
| Safety Approval | CE, UL |
| Shipping Weight | 1.70 LBS |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 12.50 IN |
| Shipping Length | 3.50 IN |
| Shipping Width | 6.50 IN |
