Triplett 9200B-NIST
- True RMS AC Current measurements up to 300A NIST Certificate of Traceability
- 4000 count display and simple 2 button operation
- Built-in non-contact AC voltage detector
- Auto power off, Low battery indicator and Data Hold
- CAT III 300V safety rating, includes a wrist strap, 2 x 1.5V AAA batteries and a case

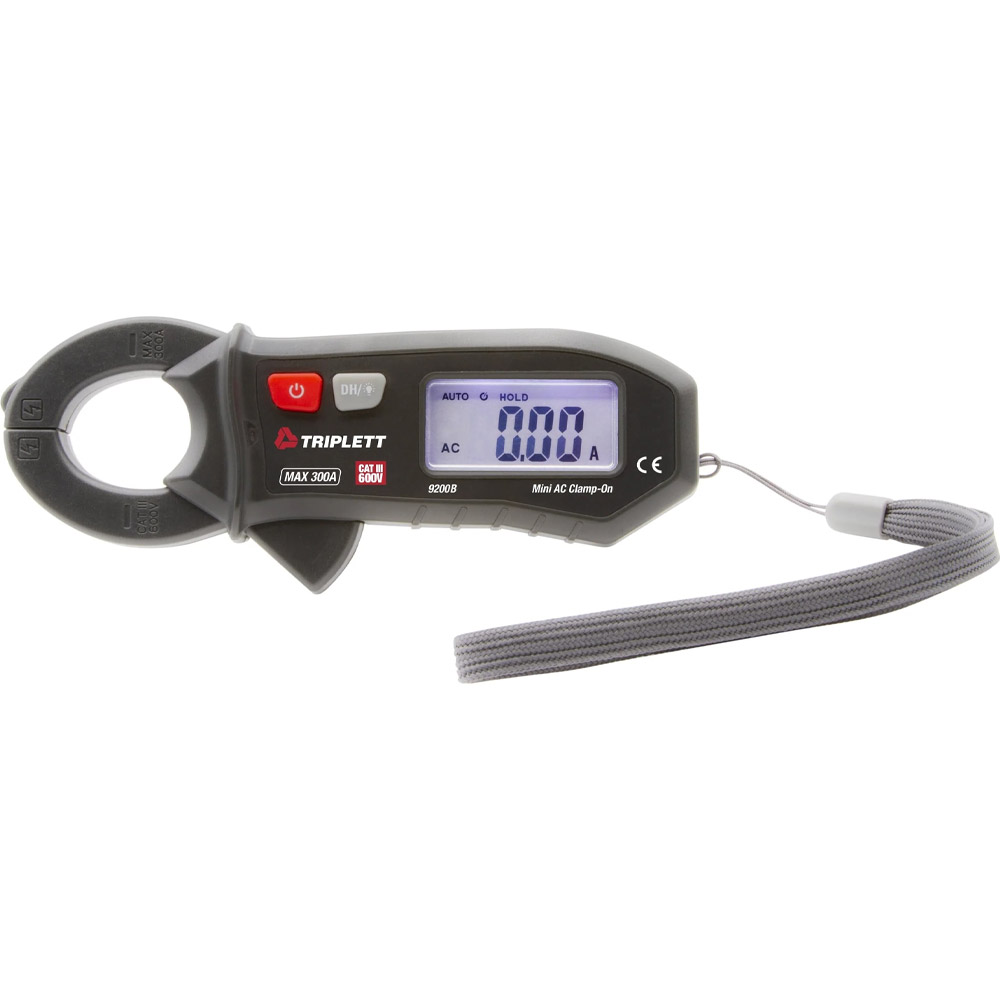

300A True RMS AC Mini Clamp Meter with Certificate of Traceability to N.I.S.T.
The Triplett 9200B-NIST is a 3 3/4 (4000 count) mini AC digital clamp-on meter with a large display. It measures 300A True RMS AC Current and features a Data Hold function. Built-in non-contact AC Voltage tester. The ABS plastic housing provides impact and drop resistance in a sleek ergonomic design, and the user-friendly Auto Ranging helps maximize results. With an industry standard CAT III 300V design it provides resistance to damage from transient overvoltages in any demanding settings. The Model 9200B is suited for a variety of commercial and residential applications such as security, electrical, HVAC installations and more.
9200B-NIST Comes with Certificate of traceability to NIST standards
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 300 A |
| Maximum Voltage AC | 1000 V |
| Maximum Conductor Size | 19 MM (0.748 IN) |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Shipping Weight | 0.50 LBS |
| HTS/Schedule B Number | 9030.33.3800 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Country of Origin | China |
| Shipping Height | 6.00 IN |
| Shipping Length | 10.00 IN |
| Shipping Width | 2.00 IN |
