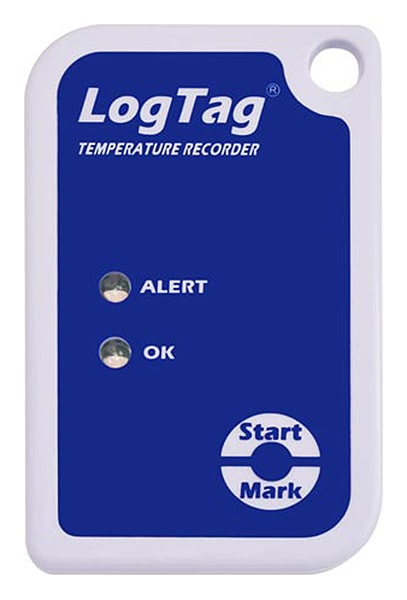

Logtag TREX-8 – Multi-use Temperature Logger with External Probe Socket
- A real time clock provides date/time stamps for each temperature reading
- In-transit inspections at the push of a button
- Comprehensive customization options including alarm settings, sample interval and trip duration
- Interchangeable External Probe with high-quality gold-plated connector
- Up to 8,000 recordings – enough for the longest trip
Requires LT-INT-HID or LTI-Wifi Cradle (not included) to connect to a computer to read/program the logger
The LogTag TREX-8 is a versatile, wide range, multitrip Temperature Logger with interchangeable External Probes, featuring high resolution temperature readings over a measurement range of -40°C to +99°C (-40°F to +210°F).
Interchangeable Remote Probes – LogTag remote temperature probes are interchangeable provided they are changed with LogTag ST100 type remote temperature sensors.
Using the LogTag Interface and LogTag’s freely available companion software LogTag Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator.
Readings are downloaded using LogTag Analyzer which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.
The LogTag TREX-8 complies with the relevant international standards for temperature monitoring devices:- FCC, CE, C-TICK and RoHS. This demonstrates the quality and suitability of the LogTag TRIX-8 for temperature monitoring applications where accuracy and consistency is required.
Manufacturer Specs
| Product Model | TREX-8. |
| External Sensor Measurement Range | -40°C to +99°C (-40°F to +210°F) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F). |
| Storage Temperature Range | -10°C to +55°C (14°F to +131°F). |
| Rated Temperature Reading Accuracy | Better than ±0.5°C (±0.9°F) for -10°C to +40°C (14°F to +104°F). Better than ±0.7°C (±1.3°F) for -30°C to -10°C (-22°F to 14°F) and +40°C to +60°C (104°F to 140°F). Better than ±0.8°C (±1.4°F) for -40°C to -30°C (-40°F to -22°F) and +60°C to +80°C (140°F to 176°F). Better than ±1.0°C (±1.8°F) for +80°C to +99°C (176°F to 210°F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |

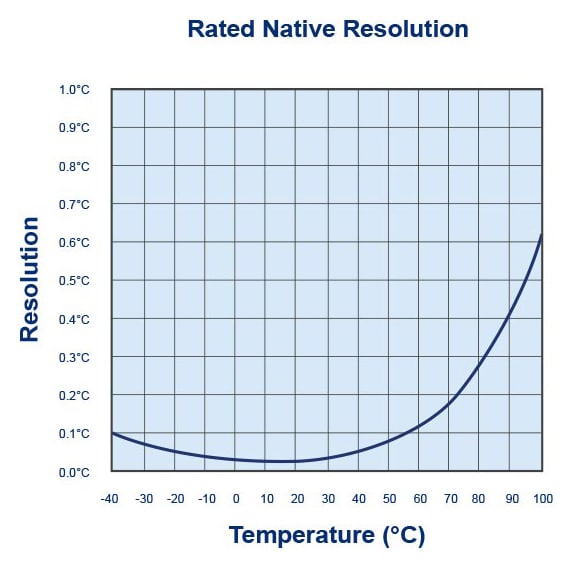

| Rated Temperature Reading Resolution | Less than 0.1°C (0.2°F) for measurements -40°C to +40°C (-40°F to +104°F). Less than 0.2°C (0.4°F) for measurements +40°C to +80°C (+104°F to +176°F). Less than 0.6°C (0.5°F) for measurements +80°C to +99°C (+176°F to +210°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 2 minutes (T90) in moving air (1m/s) for ST100T, ST100H and ST100S types. |
| Recording Capacity | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 72 hours. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used. |
| Environmental | IP61. |
| Power Source | CR2450 3V LiMnO2 Battery (Fixed). |
| Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Standard Remote Sensor Cable Length | Standard: 1.5m (4’11″). Extended: 3m (9’10″) (Recommended maximum). |
| Remote Sensor Cable Type | PTFE (FDA food contact rated), coaxial. |
| Size | 86mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 36g (without External Probe). |
| Case Material | Polycarbonate. |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 185 F (85 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 3 YEARS (26280 HR) |
| Input Source | External Probe |
| SAMPLE RATE/Intervals | 30 seconds to 18 hours |

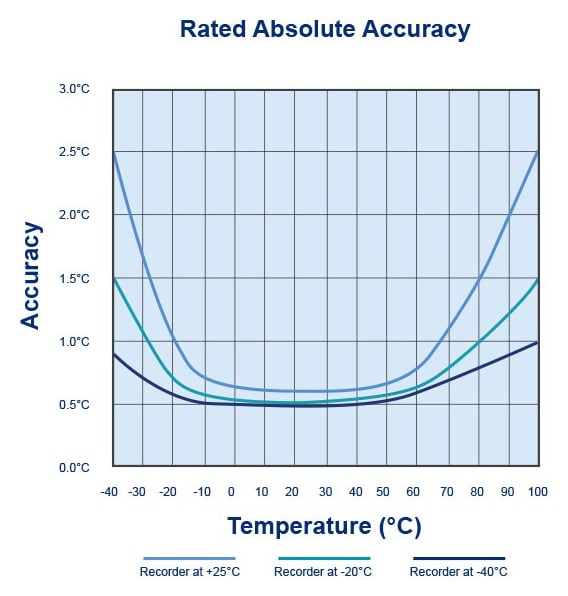

| Accuracy | Better than ±0.5°C (±0.9°F) for -10°C to +40°C (14°F to +104°F). Better than ±0.7°C (±1.3°F) for -30°C to -10°C (-22°F to 14°F) and +40°C to +60°C (104°F to 140°F). Better than ±0.8°C (±1.4°F) for -40°C to -30°C (-40°F to -22°F) and +60°C to +80°C (140°F to 176°F). Better than ±1.0°C (±1.8°F) for +80°C to +99°C (176°F to 210°F). Actual performance is typically much better than the rated values. Please see the Rated Absolute Accuracy chart below. Accuracy figures can be improved by recalibration. |
| LCD Screen | No |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | 8000 reading memory capacity |
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| Storage | Internal Memory |
| IP Rating | IP61 |
| Product Weight | 0.0794 LBS |
| Product Height | 3.38 IN |
| Product Length | 0.338 IN |
| Product Width | 2.15 IN |
| Shipping Weight | 0.0913 LBS |
| Data Logging | Yes |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
