Descripción

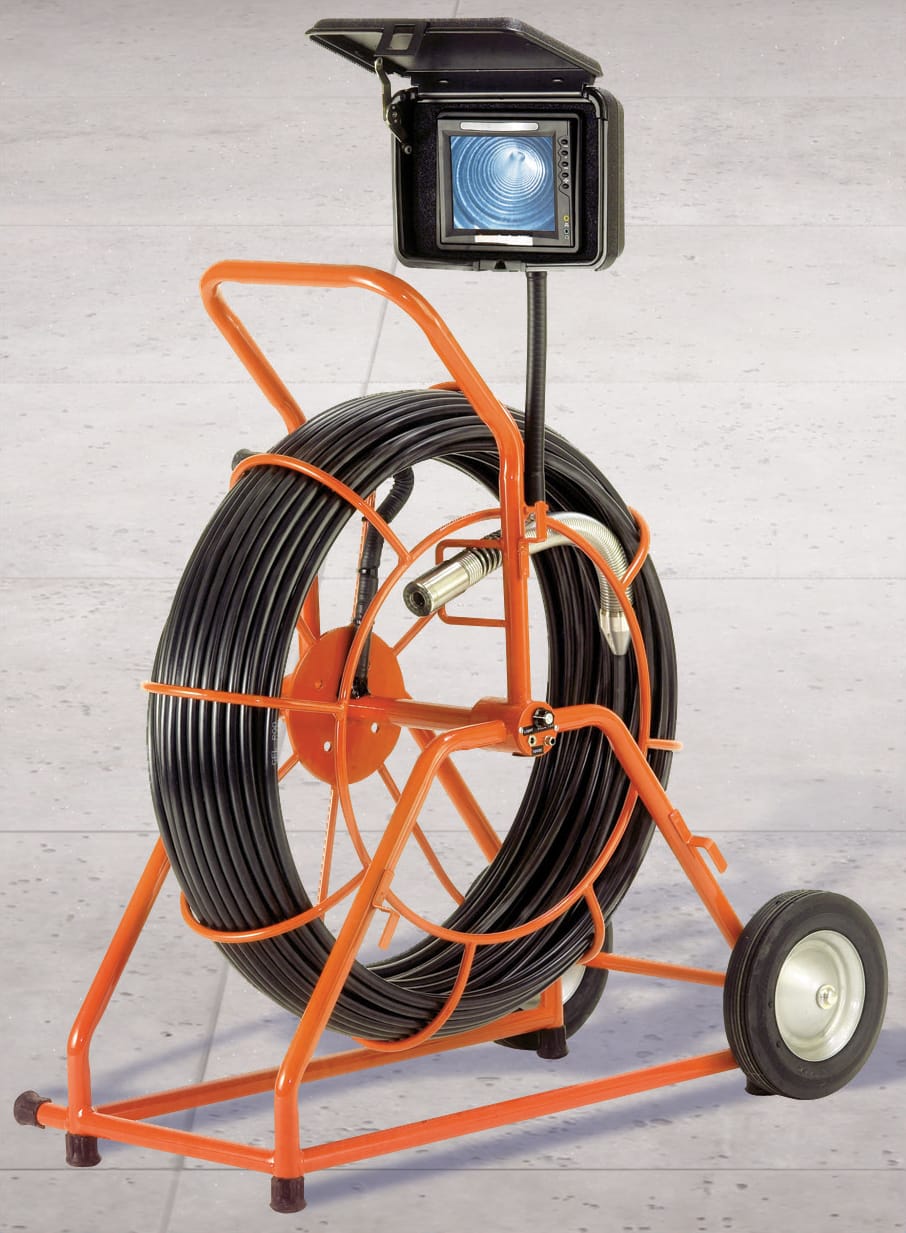

General Pipe Cleaners C-GPW-E – Gen-Eye POD Package with Wi-Fi, 200 ft. Gel-Rod (Catalog 117850)
- Package includes Gen-eye POD with Wi-Fi, Color Camera, 200′ Std. Gel-Rod, Sonde, 7 inch LCD Screen, Open Reel, 2 inch, 3 inch and 6 inch Trap Skids
- Integral camera system – camera, reel, monitor in an all-in-one package
- 7” LCD color monitor mounted on a gooseneck for easier viewing
- Self-leveling color camera automatically keeps the picture right side up
- Full size reel carries 200 ft. Gel-Rod to inspect 3” to 10” lines
Always easy on your back and your budget, General’s versatile Gen-Eye POD and Mini-POD now feature optional Wi-Fi inside. Wi-Fi lets you use your own tablet or smartphone to record the inspection and send it to your customers on the spot or back at the shop.
The lightweight, compact Gen-Eye POD combines camera, reel and monitor in an all-in-one package. You get a large 7″ LCD color monitor in a padded case mounted on a flexible gooseneck that swivels to give you the best viewing angle, wherever you’re working.
Just grab it and go! The full size Gen-Eye POD features a color self-leveling camera and 200 ft. of Gel-Rod for trouble-shooting 3″ to 10″ drain lines. The compact MINI-POD carries 125 ft. or 175 ft. of push-rod and color self-leveling mini-camera for inspecting 2″ to 4″ drain lines. The tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.
There’s lots more, like an LED Dimmer Control, both AC and DC power cords, 2″ and 3″ Trap Skids, and a 512 Hz transmitter. A video out connection lets you record on an external device.
- Sunshield
- 7″ LCD color monitor in padded case
- Self-Leveling color camera available for both full-size Gen-Eye POD and MINI-POD
- LED Dimmer Control
- Rugged frame and reel with drag brake and reel lock
- Wi-Fi transmitter inside monitor case
- Flexible gooseneck monitor mount to give you the best viewing angle
- 512 Hz Transmitter for easy camera location
- Removable Reel Cover for full size reels keeps the job site dry, yet allows easy cleaning of the push-rod between jobs
- 10″ wheels on full size POD to roll easily to and from the job
The Gen-Eye POD’s tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.
Wi-Fi TransmitterWi-Fi lets you use your own tablet or smartphone to record the inspection and send it to your customers on the spot or back at the shop.
Self-Leveling Color Camera
Automatically keeps the picture right side up as the camera glides through the line. Just 1.625” in diameter with 16 Bright-White LED’s to illuminate up to 10” lines.
Mini Self-Leveling Color Camera
Mini Self-Leveling camera is just 1.125” in diameter with 4 Super Bright LEDs to light up 2” to 4” lines with 15% more candle power than other models.
POD and Mini-POD
The full size Gen-Eye POD features a color self-leveling camera and 200 ft. of Gel-Rod® for trouble-shooting 3” to 10” drain lines. The compact MINI-POD carries 125 ft. or 175 ft. of push-rod and color self-leveling mini-camera for inspecting 2” to 4” drain lines.
Manufacturer Specs
| Gen-Eye POD with Wi-Fi Specifications | |
| Line Capacity | Large Reel – 3” to 10” |
| Reel Capacity | Large Reel – 200 ft. |
| Sensitivity | Color Self-Leveling – 0.5 Lux |
| Lighting | Color Self-Leveling – 16 White LED’s (88K MCD) |
| White Balance | Auto High Speed |
| Camera Dimensions | Color Self-Leveling – 1.625” Dia. X 2.7” Long |
| LCD Monitor Size | 7” |
| Push-Rod Diameter | Large Reel – .475” Gel-Rod® |
| Reel Dimensions | Large Reel – 29” L x 16” W x 33-1/2” H |
| Video Format | NTSC or PAL |
| Recording Device | Wi-Fi to Tablet or Smartphone |
| Power | 110v/60 Hz AC, 12 VDC |
| Operating Temperature | 14° F to 122° F (-10° C to 50° C) |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 200 Ft (2400 IN) |
| Shaft Diameter | 0.475 IN (0.025 M) |
| Screen Size | 7 IN |
| Detachable Screen | No |
| Screen Type | LCD |
| Video Output Format | NTSC, PAL |
Test Equipment General Attributes |
|
| Interfaces I/O | Wifi |
| Product Weight | 67 LBS |
| Product Height | 33.5 IN |
| Product Length | 29 IN |
| Product Width | 16 IN |
| Shipping Weight | 77.05 LBS |
| Power Supply Voltage | 110V |
