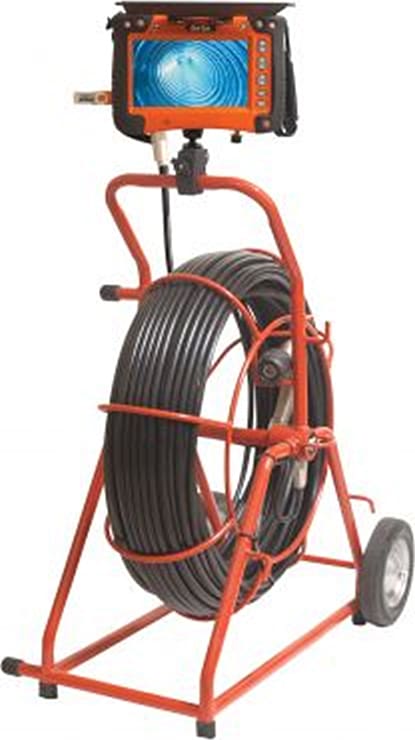

General Pipe Cleaners SL-GX-E – Gen-Eye X-POD Video Pipe Inspection System Self-Leveling Package (Catalog 117040)
- Includes GX-500 Command Module, SL-GL-200 200 ft reel with Self-Leveling Color Camera, Docking Kit and 2, 3,& 6″ skids
- 7″ LCD screen for crisp clear pictures
- One-touch recording of video or photos
- USB recording drive – Can handle up to 64GB flash drive
- Flash drive can be used on any computer with USB port for viewing for sending files
The Gen-Eye X-POD features a powerful Command Module with USB port to record video inspections on flash drives. Always easy on your back and your budget, the lightweight X-POD combines camera, reel, and monitor into one compact package.
It’s packed with features like a big 7″ LCD color monitor for crisp, clear pictures, one-touch recording, 4X digital zoom, voice-over recording, date and time stamp, and flash drive capacity indicator. The adjustable mount lets you set the monitor for the best viewing angle, wherever you’re working.
A Reel Cover protects work sites from dripping push-rods. The heavy-duty, 600 denier poly canvas cover fits snuggly around the full size reel. Securely affixed with Velcro tabs – and easily removed to hose off push-rod between jobs.
The Command Module also includes a 3 ft. Probe Rod with color camera for inspecting hard to reach places. Three adapters are included to improve your viewing angle or to retrieve objects.
Big Capacity Reels
The full size reels feature a self-leveling color camera and 200 ft. Gel-Rod® for inspecting 3″ to 10″ drain lines. Ten inch wheels ensure easy transport to and from the job. The compact Mini-Reels carry 100 ft. or 200 ft. of Gel-Rod® with mini color self-leveling camera for trouble shooting 2″ and 3″ lines. The tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.
Gel-Rod Push Rods
Patented Gel-Rod push rod withstands tough abuse in the line. The Gel in the cable keeps the moisture away from the wires if it’s ever cut or abraded. Further, the dual layer/dual color construction let’s you see cable wear so it can be repaired before it becomes a problem. The Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
Advanced Skid Designs
Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″ and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
3ft. Probe Rod
The Command Module also includes a 3 ft. Probe Rod with color camera for inspecting hard to reach places. Three adapters are included to improve your viewing angle or to retrieve objects.
Manufacturer Specs
| Line Capacity | Self-Leveling Color Camera – 3″ to 10″ |
| Reel Capacity | Self-Leveling Color Camera – 200, 300, 400 ft. |
| Sensitivity | Self-Leveling Color Camera – 0.5 Lux |
| Lighting | Self-Leveling Color Camera – 16 White LED’s 88K MCD |
| White Balance | Auto High Speed |
| Camera Dimensions | Self-Leveling Color Camera – 1.625″ Dia. X 2.7″ Long |
| Push-Rod Diameter | Self-Leveling Color Camera – .475″ Gel-Rod® |
| Reel Dimensions | Self-Leveling Color Camera – 29″ L x 16″ W x 33-1/2″ H |
| Gen-Eye X-POD Monitor Dimensions | 10″ W x 7″ H x 2.75″ D |
| LCD Screen Size | 7″ |
| Video Format | NTSC or PAL |
| Power | 110v/60 Hz AC, 12 VDC |
| Operating Temperature | 14° F to 122° F -10° C to 50° C |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 200 Ft (2400 IN) |
| Shaft Diameter | 0.475 IN (0.025 M) |
| Screen Size | 7 IN |
| Detachable Screen | No |
| Screen Type | LCD |
| Digital Zoom X | 4 |
| Video Output Format | NTSC, PAL |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Interfaces I/O | USB |
| Storage | USB Flash Drive |
| Product Weight | 84 LBS |
| Product Height | 33.5 IN |
| Product Length | 29 IN |
| Product Width | 16 IN |
| Shipping Weight | 96.6 LBS |
| Power Supply Voltage | 110V |
