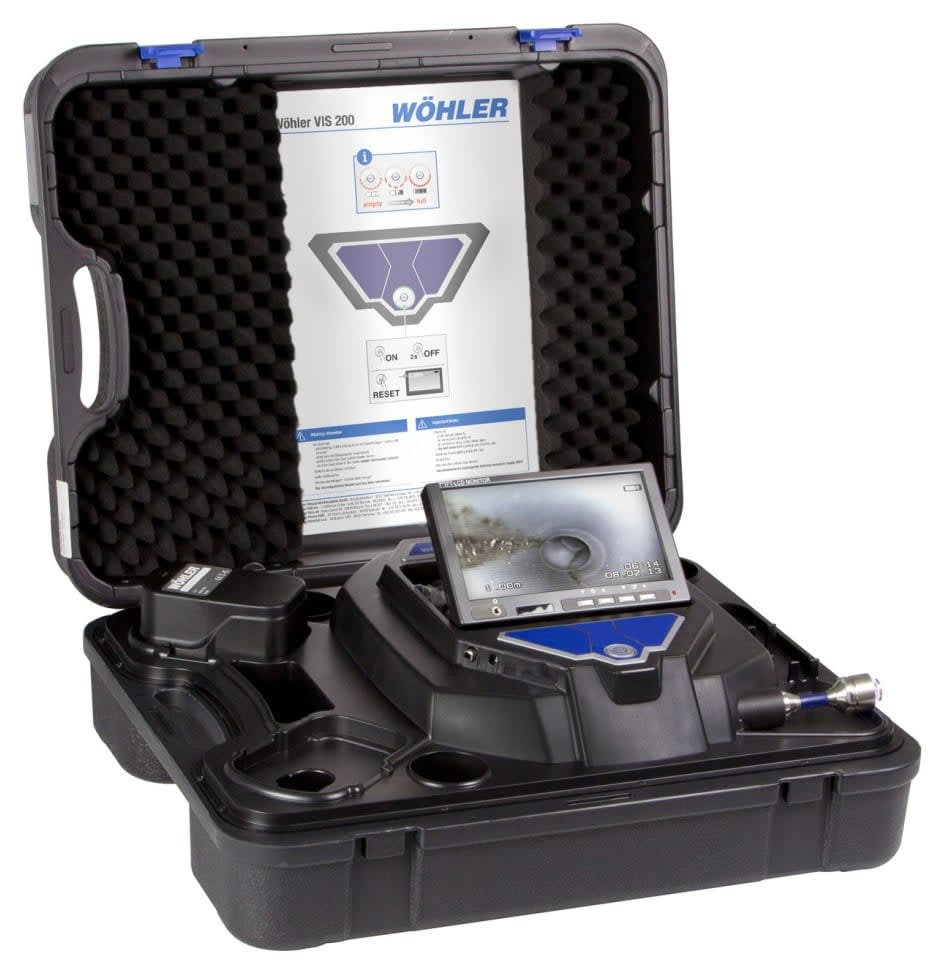

Wohler 8937 – VIS 200 Visual Inspection System with L 200 Locator
- Waste water pipes of 1 1/2″ diameter and larger
- Ventilation lines of 1 1/2″ diameter and larger
- Inspect hollow spaces, e.g. in front-wall installations
- Flue gas lines up to approx. 6″ diameter
Wohler‘s innovative VIS 200 Visual Inspection System enables you to easily view damage in pipes of 1 1/2″ dia and larger – no power outlet required. Compact by design and powered by a rechargeable battery, this complete camera-system is contained in a robust plastic case. The camera head features a powerful, integrated light to allow you to clearly view damage in waste water pipes (at least 1 1/2″ dia) and inspect downpipes as well as flue gas lines. Absolutely essential for locating obstructions or damage quickly.
In The Box
- Wohler VIS 200 NTSC Visual Inspection System with digital meter counter
- Miniature color camera head 1″ dia, V2 NTSC
- 7″ TFT color monitor
- 6 ft. connection cable (removable monitor)
- 100 ft. push rod 0.24“ diameter
- Anti-slide mat
- 1 NiMH battery with charger
- 1 guidance sleeve for mini camera head
- 1 guidance ball for flex part of camera push rod
- Wohler L 200 Locator (Receiver)
- Heavy duty carrying case
Manufacturer Specs
| Technical Data | |
| Monitor | |
| Dimensions housing | 7″ x 4.5″ x 1.3″ |
| TFT-display | 7″ / 16:9 format |
| Video out | FBAS signal |
| Weight | 1 lbs |
| Power Supply | |
| Power supply | Space for 2 rechargeable batteries, each 12 V or via power pack |
| Battery operating time | Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display) |
| Miniature color camera head, 1″ diameter | |
| Type | 1/3″ COLOR CMOS |
| Resolution | 420 lines |
| Pixels | 768 x 576 (PAL), 656 x 492 (NTSC) |
| Light sensitivity | 0.5 Lux |
| Lens | f = 0.09″, F = 2.5 |
| Viewing angle | 115° |
| Light source | 12 white LEDs |
| Degree of protection | Waterproof to IP 68 |
| Dimensions | 1″ dia x 1.5″ long |
| Weight | 0.5 lbs |
| Operation temperature | 32…104 °F, RH 95 % MAX |
| Storage temperature | -4…122 °F, RH 95 % MAX |
| Transmitter frequency | 8.9 kHz |
| Push rod | |
| Length | 100 ft. |
| Diameter | 0.24″ |
| Distance measurement | digital distance meter |
| Plastic case | |
| Dimensions | 20″ x 17″ x 7″ (l x w x h) |
| Weight | 15 lbs |
| Locator receiver | |
| Display | Graphic visualization of transmitted position |
| Output impedance | |
| Headphones | 32 Ohm |
| Power supply | 2 V NiMH battery (rechargeable) |
| Operating temperature | 32…104 °F |
| Storage temperature | 14…104 °F |
| Weight | 1.3 lbs |
| Dimensions | 13″ x 6″ x 3″ (l x w x h) |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 100 Ft (1200 IN) |
| Shaft Diameter | 0.24 IN (0.025 M) |
| Screen Size | 7 IN |
| Detachable Screen | Yes |
| Screen Type | TFT LCD |
| Video Output Format | NTSC, PAL |
Test Equipment General Attributes |
|
| Country of Origin | Germany |
