Descripción

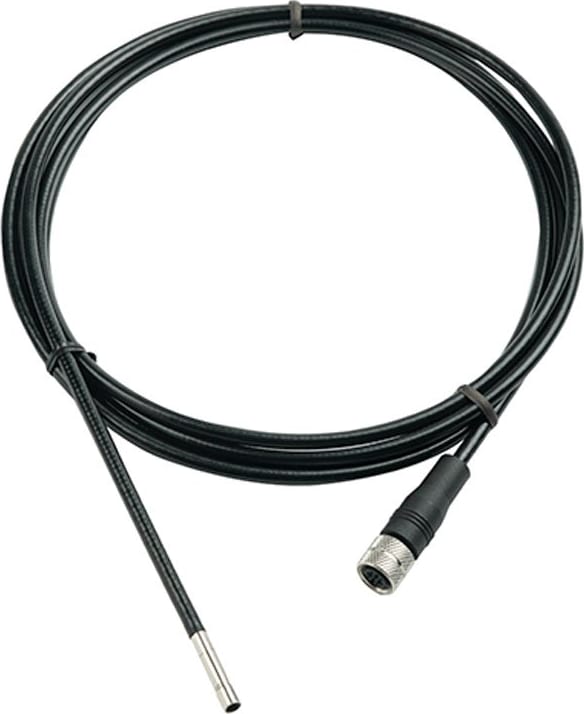

The HDV-5CAM-1FM is an optional camera for use with the HDV600 VideoScope series. This 5.5mm Camera head with a Macro lens, features a 65° field of view. One meter semi-rigid cable length. Minimum focus distance at 0.59 in. (15mm). 65° FOV / Macro lens and 1m Flexible Cable.
Manufacturer Specs
| Specifications | |
| Model | HDV-5CAM-1FM |
| Resolution | 640 x 480 pixels |
| Length | 1m (3.3′) |
| Outer diameter (O.D.) | 5.5mm (0.22″) |
| Focus distance | 2 to 6cm (0.79 to 2.36″) |
| Housing | Stainless Steel |
| Field of View | 65º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 5.5 MM (0.0055 M) |
Test Equipment General Attributes |
|
| Unique Features | 5.5mm VideoScope Camera Head with Macro lens and 1m Flexible Cable |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
