Descripción

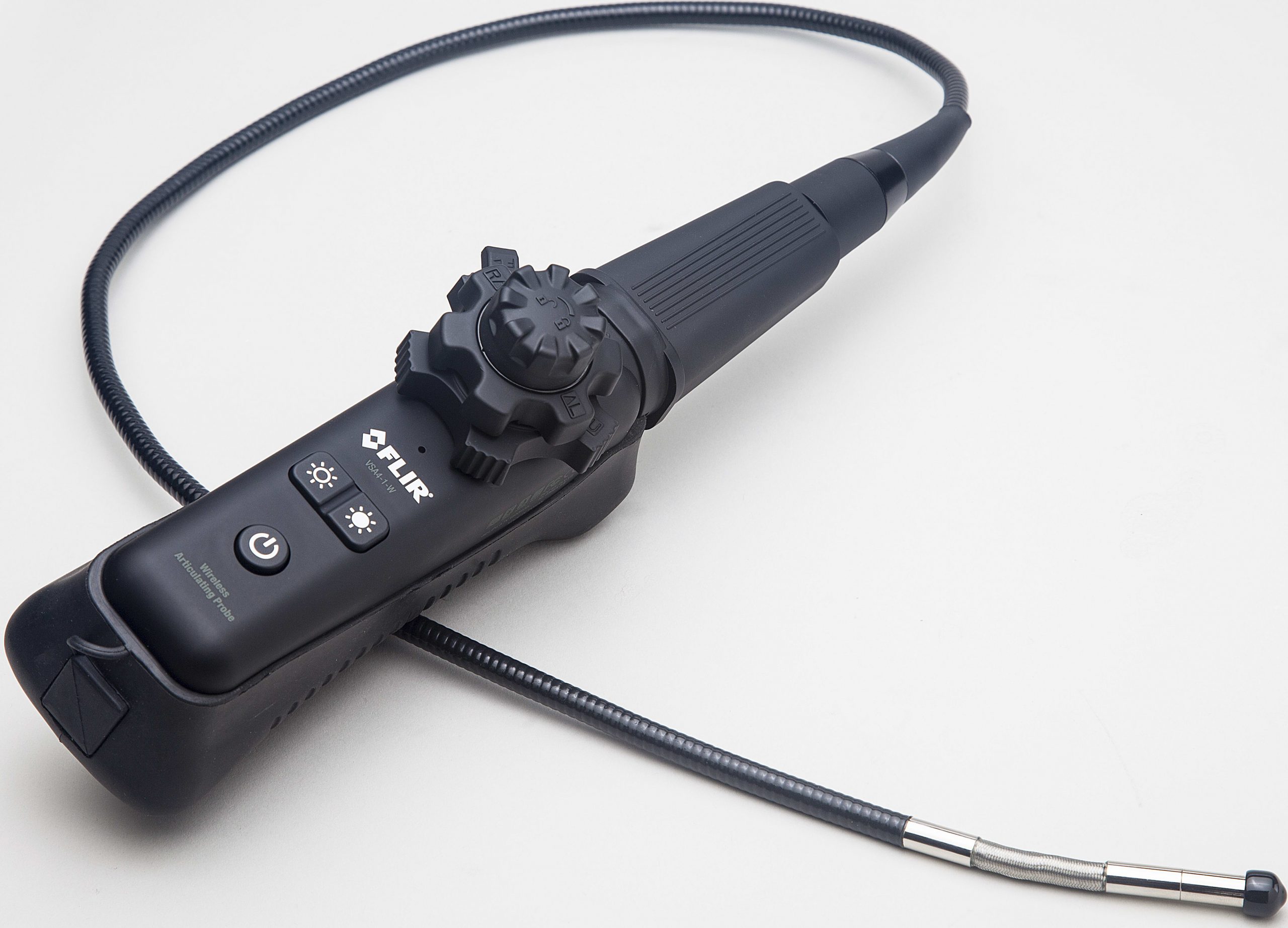

The FLIR VSA4-1-W is a wireless 4-Way Articulating Videoscope camera that measures 6mm x 1 Meter in length with a focal length of 20 to 60 and a 56 degree FOV.
Manufacturer Specs
| General information | |
|---|---|
| Compatible main unit | VS70 |
| Integrated handset | Yes |
| Wireless capabilities | 2.4 GHz to main unit |
| Wireless maximum range | 30 m |
| Compatible wireless handset | N/A |
| Compatible detachable cameras | N/A |
| Camera specifications | |
| Articulation | 240 ± 20° manual tip articulation |
| Diameter | 8 mm |
| Resolution | VGA ( 640 × 480 pixels) |
| Probe length | 1 m |
| Focal length | 60 mm to infinity |
| Field of view | 60° |
| Imaging sensor | CMOS |
| Video format | NTSC |
| Brightness control | Manual with variable options |
| Lamp type | LED |
| Adjustable articulation tension | Yes, via manual knob |
| Power system | |
| Power requirements | 3.7 V rechargeable lithium polymer |
| Run time | 2 hours continuous use |
| Auto power off | No |
| Power adapter | 100–240 V input/5 V DC output |
| Environmental data | |
| IP rating | IP67 |
| Drop test | 2 m |
| Operating ambient temperature | –20 to 70°C (–4 to 158°F) |
| Operating humidity | 95% maximum |
| Storage temperature | –20 to 70°C (–4 to 158°F) |
| Storage humidity | 80% maximum |
| Meter physical data | |
| Weight: | 0.88 kg (1.95 lb.) |
| Dimensions (H × W × L) | 82.55 mm × 63.5 mm × 1168.4 mm (3.25″ × 2.5″ × 46″) |
| Material | PC-ABS, rubber hand grip, nylon strap |
| Color | Gray, black |
| Shipping information | |
| Packaging type | White box with FLIR accessory printing |
| Packaging contents | White box with FLIR accessory graphic, VSA4-1-W, user guide, camera attachments: mirror, anti-snag tip, magnet |
| Packaging weight | 1.52 kg (3.35 lb.) |
| Packaging dimensions (H × W × L) | 69.8 mm × 361.9 mm × 431.8 mm (2.75″ × 14.25″ × 17″) |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 1.95 LBS |
| Product Height | 3.25 IN |
| Product Length | 46 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 3.35 LBS |
| Country of Origin | Taiwan |
