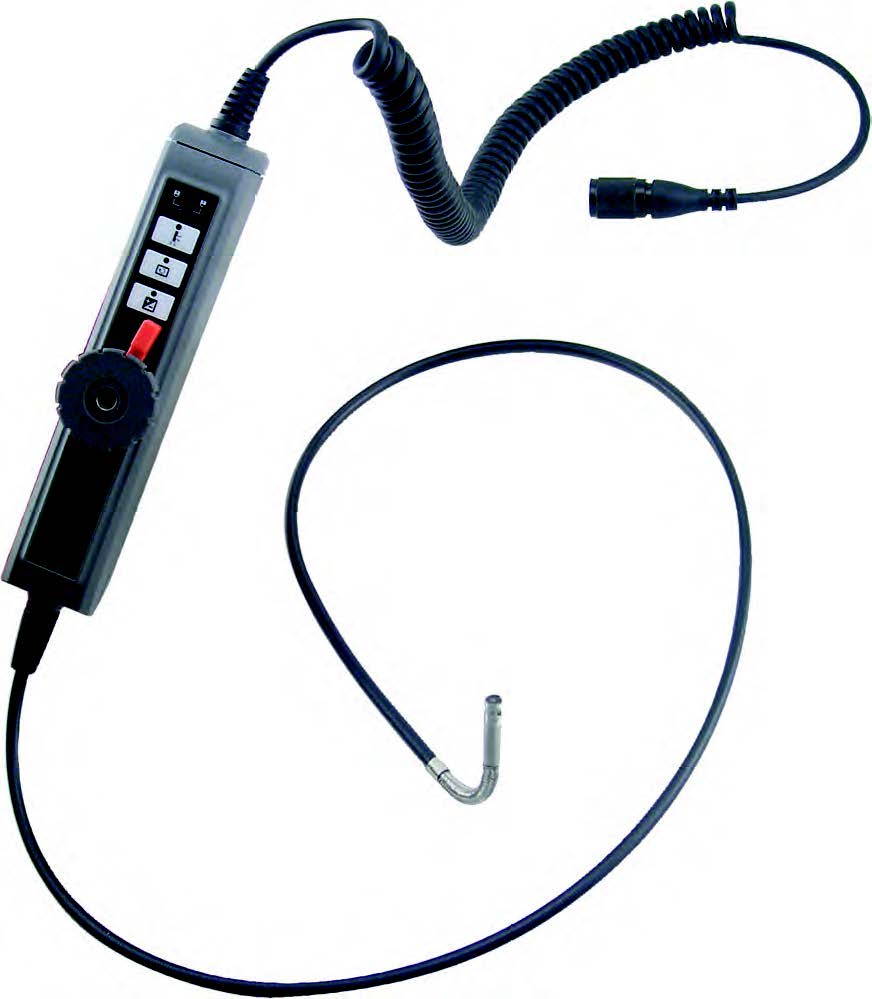

General Tools P16HP3ART VGA Resolution Articulating Probe with Light Boost and Anti-reflection 3m Long x 6mm (0.23 inches) diameter
The General Tools P16HP3ART VGA Resolution Probe, 9.8 ft. Articulating. 6.0 mm is a super high performance borescope probe. The tool features a 6.0 mm camera head for extremely high resolution video. The probe is articulating, is 9.8 feet long and has a depth of field of 0.25 to 12 inches. The probe is compatible with General Tools and Instruments DCS1800-TR, H16, H8, H17, DCS1800, DCS1700, DCS1600, DCS1600ART, DPS 16, and DCS800 borescopes. This is a super-high performance probe used for borescope applications across multiple industries.
Manufacturer Specs
| General Tools P16HP3ART Specification | |
| Probe Type | Soft metal |
| Probe Length | 3m Long x 6mm |
| Camera Head Diameter, Type | 0.23 in. (6mm), Stainless steel |
| Camera Head Diameter with Thread Protector | 0.26 in. (6.5mm) |
| Camera Head Length | 0.9 in. (23mm) |
| Camera Resolution | VGA (640 x 480 pixels) with Light Boost and Anti-Reflection |
| Camera Depth of Field | 0.25 to 12 in. (6.4 to 300mm) |
| Camera Field of View | 87° (diagonal) |
| Camera Lighting | 3 forward-facing LEDs + 2 side-facing LEDs |
| LED Brightness | 224 mcd (millicandela) each |
| Operating Temperature | -4° to 150°F (-20° to 65°C) |
| Dimensions of Probe Controller | 5.47 x 1.38 x 1.26 in. (139 x 35 x 32mm) |
| Weight of Controller | 7.76 oz. (220g) |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Country of Origin | Taiwan |
