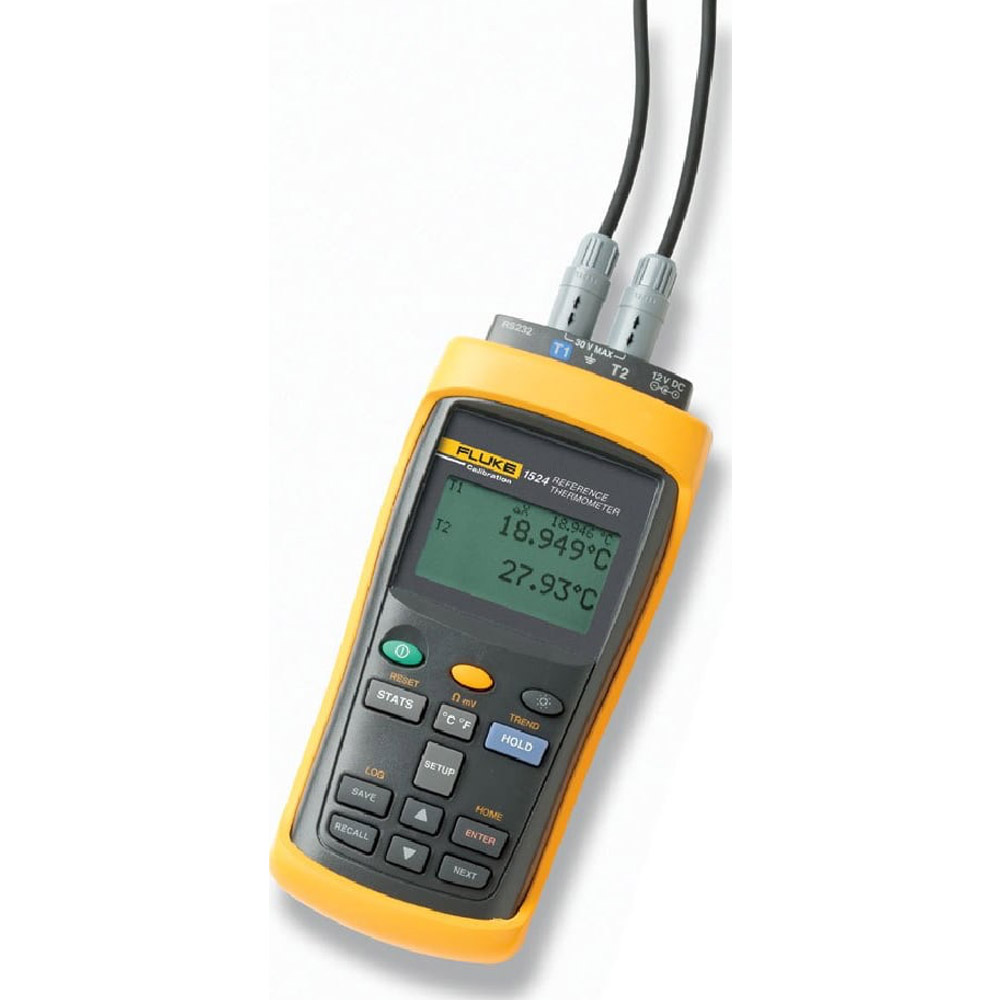

Fluke 1524-P2-156 – Bundle, 1524 with Case, 5628, Lemo to TC Adapter
- Fast mode
- PRTs: 0.45 seconds per sample
- Thermocouples: 0.3 second per sample
- Precision thermistors: 0.3 seconds per sample
- Graphical display
- 128×64 backlit LCD graphic display
- Plot and scale trends in real time
- Simultaneous dual channel readings
1524-P2-156 Bundled, with 5616 PRT, Universal TC INFO-CON Connector, TPAK, and Case
Measure, graph and record three sensor types with one tool
The 1523/ 24 Reference Thermometers from Fluke Calibration measure, graph, and record PRTs, thermocouples, and thermistors. These thermometer readouts deliver exceptional accuracy, wide measurement range, temperature logging, and trending, all in a handheld tool you can take anywhere.s
The 1523/ 24 lets you handle field applications, laboratory measurements, and data logging with ease. And with the dual channel measurement capabilities of the model 1524, you can do twice the work in half the time.
Make accurate, consistent measurements… anywhere
You need accuracy for compliance, product yields, energy savings, and consistent results. The 1523/ 24 uses current reversal, a technique used in high-end instruments that eliminates thermal EMFs, for precision temperature measurements. Specifications are guaranteed from -10 ºC to 60 ºC ambient. Special precision resistors and a highly stable reference voltage source keep 1523/ 24 accuracy virtually insensitive to environmental temperature.
Like all Fluke handheld tools, the 1523/ 24 Reference Thermometers endure rigorous testing in temperature extremes and under harsh conditions of vibration, so you can take them anywhere you need to go.
An optional magnetic hanger allows you to hang the thermometer for easy viewing while freeing your hands to focus on the job.
INFO-CON connectors ensure correct temperature conversion
Inside the INFO-CON, a memory chip keeps calibration information for the attached probe. Simply plugging in the probe uploads the information to the readout, ensuring the correct temperature conversion for accurate, hassle-free measurements.
Probes may be locked by password to specific channels and readouts for security or for system calibration traceability. Plug any thermocouple with mini-thermocouple jacks into an optional universal thermocouple adapter for convenient measurement. Each thermocouple adapter or standard connector supports reference junction compensation (RJC) with its own internal precision thermistor.
Monitor trends in the lab or in the field
See trends graphically on the 1523/ 24 thermometer’s 128×64-backlit LCD display. You can change the graph’s resolution at the touch of a button. Now it’s easy to see when the temperature is stable, without statistics or long delays, or monitor processes over time to verify correct operation.
Document on demand up to 25 readings and associated statistics for easy retrieval. You can view the data through the display or by uploading it to a PC via RS-232 connection and 9940 software, included free. To monitor and log more data over time, use a PC and optional LogWare II software.
RS-232-to-USB adapters are available for those who prefer USB connectors. Battery power lasts at least 20 hours on three AA batteries, or use the dc power adapter for extended periods of measurement. Power saving features can be enabled or disabled for longer battery life or greater convenience.
Two models let you make the best choice for your application
The 1523 Reference Thermometer is a versatile single-channel thermometer that measures, graphs and records three sensor types with one tool. Support for PRTs/RTDs, thermocouples, and thermistors provides flexibility to choose the right probe for the job.
The new 1524 Reference Thermometers help you do twice the work in half the time. Two channels and three sensor types and high-speed measurement make you more productive and make model 1524 the one reference thermometer you need to own. It has all the features of the 1523, and it’s a temperature logger too. A real-time clock and memory for 15,000 time and date stamped measurements mean everything you are going to need is in this package. Log up to three times per second, or once every hour or other options in between. Download the temperature logger data to a PC for analysis when you need it.
Calibration
Tolerances of RTDs, thermocouples, transmitters and temperature controllers improve over time. Calibrations determine which instruments to accept against their tolerances. If you make comparisons to an inaccurate reference standard, the risks of false accept and false reject increase. Test uncertainty ratios (TURs) that keep the reference four times more accurate than the test unit greatly reduce this risk. The 1523/ 24 lets you get better TURs on a wider range of workload.
The 1523/ 24 can also help boost cal lab productivity with fast sample rates and dual channel measurement. Accurately measure up to seven samples per second, or calibrate two sets of workload at the same time, with the two reference channels.
Test and measurement
Testing the performance of internal and external combustion engines, turbines, steam systems, cooling towers, heat exchangers, and refrigeration systems requires measuring differences between inlet and outlet temperatures. The 1524 can simultaneously measure, calculate and record these differences.
The high sampling rate and logging capability of the 1524 make it easy to determine the response time of temperature sensors. In addition, graphing in the 1523/ 24 makes it easy to see temperature trends in a system and quickly identify stability.
With a precision thermistor in stainless steel or Teflon coating, the 1523/ 24 combines laboratory accuracy with speed, reliability, and intuitive measurement. And forget about waiting 20 minutes for equilibration; you can see graphically when the temperature trend is stable.
Application
Calibration, loop checking, plant startup, troubleshooting, maintenance, and repair are some of the varied duties that need a 1523/ 24 thermometer. Use it for a handy temperature reference and temperature logger in baths, dry-block calibrators, thermowells, clean rooms, engines, heat exchangers, furnaces, freezers, or anything else that must be calibrated, checked, or maintained.
Logging and validation
Whether you are testing a product, validating a process, troubleshooting or doing research, multi-channel logging with the 1524 can help you get the data you want, where, how and when you want it. Gather data independently of a computer. If space is a limitation, the compact size of the 1524 is ideal. In addition, you can choose your sample rate, monitor values in real time, directly transfer data to a computer, and record up to 15,000 time and date stamped measurements.
Manufacturer Specs
| Specifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| 1523 | 1524 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Input Channels | 1 | 2 | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Logging | 25 readings with statistics | 25 readings with statistics 15,000 time and date stamped |
|||||||||||||||||||||||||||||||||||||||||||||||||||
| Sample interval (normal): | 1 second | 1 second (simultaneous measurement) | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Typical sample interval (fast mode)*: | 0.3 seconds | 0.3 seconds | |||||||||||||||||||||||||||||||||||||||||||||||||||
| Sensor types | PRTs, RTDs, Thermistors, and Thermocouples | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Thermocouple types | C,E,J,K,L,M,N,T,U,B,R,S | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating temperature | –10 °C to 60 °C (Best accuracy 13 °C to 33 °C) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power requirements | 3 AA alkaline batteries | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Safety | EN 61010-1:2001, CAN/CSA C22.2 No. 61010.1-04 | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Size (HxWxL) | 96 mm x 200 mm x 47 mm (3.75 in x 7.9 in x 1.86 in) |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 0.65 kg (1.4 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||
| Environmental conditions for best accuracy: 13 °C to 33 °C | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| Millivolt range and accuracy | –10 mV to 75 mV ± (0.005 % + 5 V) |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Resistance range and accuracy | 0 Ω to 400 Ω ± (0.004 % + 0.002 Ω) 200 Ω to 50 kΩ ± (0.01 % + 0.5 Ω) 50 kΩ to 500 kΩ ± (0.03 %) |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature coefficient, voltage ( –10 °C to 13 °C, + 33 °C to 60 °C) | Temperature coefficient ( –10 °C to 13 °C , +33 °C to 60 °C): ± (0.001 %/°C + 1 V/°C) |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Temperature Coefficient, Resistance ( –10 °C to 13 °C, + 33 °C to 60 °C) | 0.0008 %/ °C + 0.0004 Ω (0 Ω to 400 Ω) 0.002 %/ °C + 0.1 Ω (0 Ω to 50 kΩ) 0.06 %/ °C + 0.1 Ω (50 kΩ to 500 kΩ) |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Excitation current, resistance | 1 mA (0 Ω to 400 Ω) 10 µA (0 Ω to 50 kΩ) 2 µA (50 kΩ to 500 kΩ) |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| *See technical manual for sample interval details by sensor type and number of inputs. | |||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Safety Approval | CSA |
| Interfaces I/O | Other, RS-232 |
| Product Weight | 1.4 LBS |
| Product Height | 47 MM (1.85 IN) |
| Product Length | 96 MM (3.78 IN) |
| Product Width | 200 MM (7.87 IN) |
| Data Logging | Yes |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | Other |
| Country of Origin | United States |
