Descripción

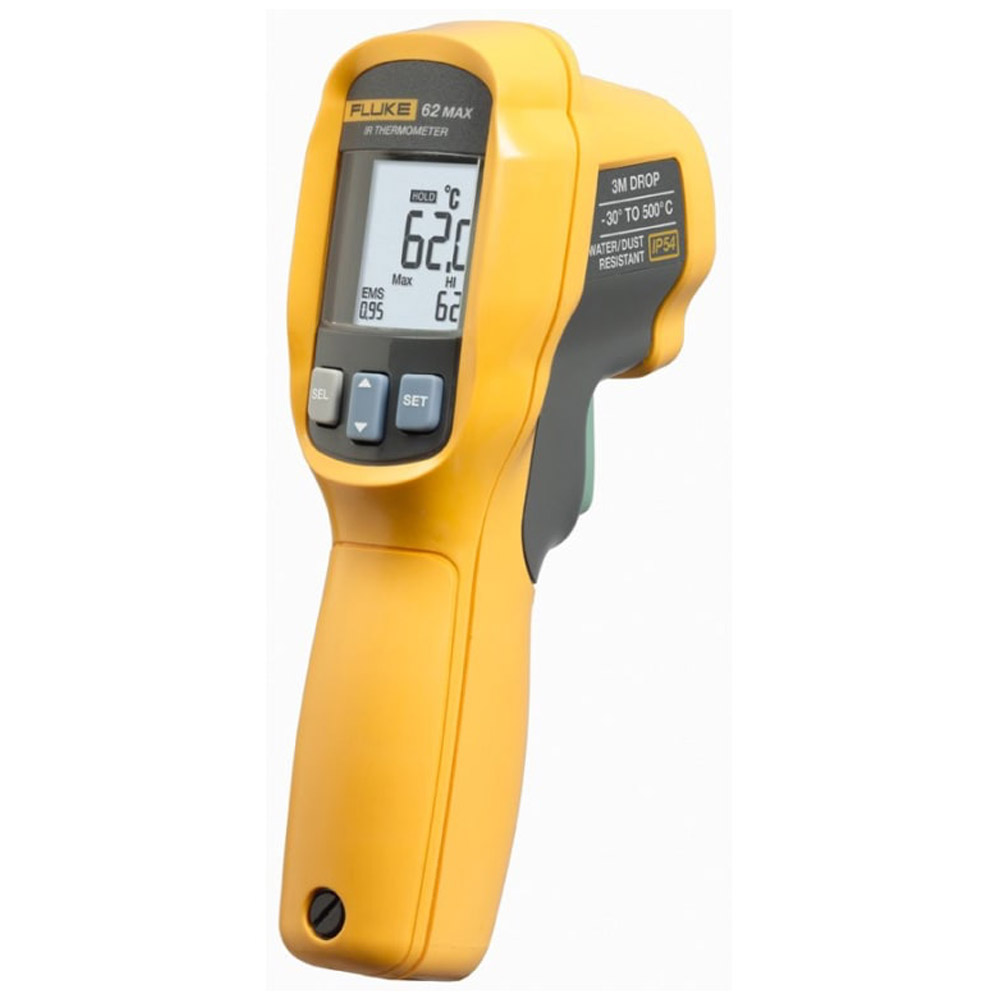

Fluke 62 Max Cal – Mini Infrared Thermometer
- Mini Infrared Thermometer, Cal Traceable with data
- Temperature range: -30 °C to 500 °C (-22 °F to 932 °F)
- Provides a 10:1 Distance to spot ratio
- Offers single laser targeting for accurate and repeatable measurements
- Features IP54 rating against dust and moisture
The Fluke 62 MAX Infrared thermometer delivers many of the features of the Fluke 62 MAX+, but features a single laser and 10:1 distance to spot ratio. You can use the Fluke 62 MAX to perform non-contact temperature measurements on transformers, motors, pumps, panels, breakers, compressors, duct, steam lines, valves, and vents.
It is small in size and extremely easy to use. The single laser helps you pinpoint the target for more accurate readings and makes it easier to measure temperatures in hard to reach areas.
With its IP54 rating for dust and water resistance you can rely the Fluke 62 MAX to deliver accurate, repeatable temperature measurements, rain or shine, in even the dirtiest and dustiest industrial sites. And it’s rugged enough to take a 3-meter drop so no worries even if you work from a ladder.
Rugged, ready and reliable.
You have a tough job. Tough on you and your tools. That’s why Fluke IR thermometers are ready for action even in harsh conditions—tested to withstand dust and water with an IP54 rating1. Some can even survive a 3 meter drop1 . For rugged reliability, it’s tough to beat Fluke.
Quick and simple measurements.
With a start-up time of a mere second, you’ll never have to wait on your tool. Simply pull the trigger and instantly get a spot measurement. Laser guides show where you’re measuring, and dual lasers on some models indicate the area the measurement is based on.
Manufacturer Specs
| Temperature range | -30°C to 500°C (-22°F to 932°F) |
| Accuracy | ±1.5°C or ±1.5% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 |
| Response time (95%) | < 500 ms (95% of reading) |
| Spectral response | 8 to 14 microns |
| Emissivity | 0.10 to 1.00 |
| Optical resolution | 10:1 (calculated at 90% energy) |
| Display resolution | 0.1°C (0.2°F) |
| Repeatability of readings | ±0.8% of reading or < ±1.0°C (2°F), whichever is greater |
| Power | AA battery |
| Battery life | 10 hours with laser and backlight on |
| Physical Specifications | |
| Weight | 255 g (8.99 oz) |
| Size | 175 x 85 x 75 mm (6.88 x 3.34 x 2.95 in) |
| Operating temperature | 0°C to 50°C (32°F to 122°F) |
| Storage temperature | -20°C to 60°C (-4°F to 140°F), (without battery) |
| Operating humidity | 10% to 90% RH non-condensing at 30°C (86°F) |
| Operating altitude | 2000 meters above mean sea level |
| Storage altitude | 12,000 meters above mean sea level |
| IP rating | IP 54 per IEC 60529 |
| Drop test | 3 meters |
| Vibration and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
| Electromagnetic compliance | IEC 61326-1: Portable electromagnetic equipment |
| Safety | IEC 61010-1: Pollution degree 2 IEC 60825-1: Class 2 |
Tech Specs
Thermometers/IR Thermometers Template |
|
|---|---|
| IR Temperature Max | 500 F |
| IR Temperature Min | -30 F |
| Field View Ratio (Spot Ratio) | 10:1 |
| Accuracy | ±1.5°C or ±1.5% of reading, whichever is greater -10°C to 0°C: ±2.0 -30°C to -10°C: ±3.0 |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Data Hold | Yes |
| Max./Min. | Yes |
| Memory Recall | No |
| Thermocouple Input | No |
| Food Safe | No |
Test Equipment General Attributes |
|
| Unique Features | -10 foot drop test proof -Dust and water-resistant: IP54 rated for dust and water resistance. -Battery life 10 hours with laser and backlight on -Min/Max/Avg/Dif function -Hi and Lo alarm |
| Warranty | 1 YEARS |
| Additional Info/Comments | Response time <500 ms (95% of reading) |
| IP Rating | IP54 |
| Product Weight | 0.56 LBS |
| Product Height | 6.88 IN |
| Product Length | 3.34 IN |
| Product Width | 2.95 IN |
| Shipping Weight | 1.09 LBS |
| Data Logging | No |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
