Descripción

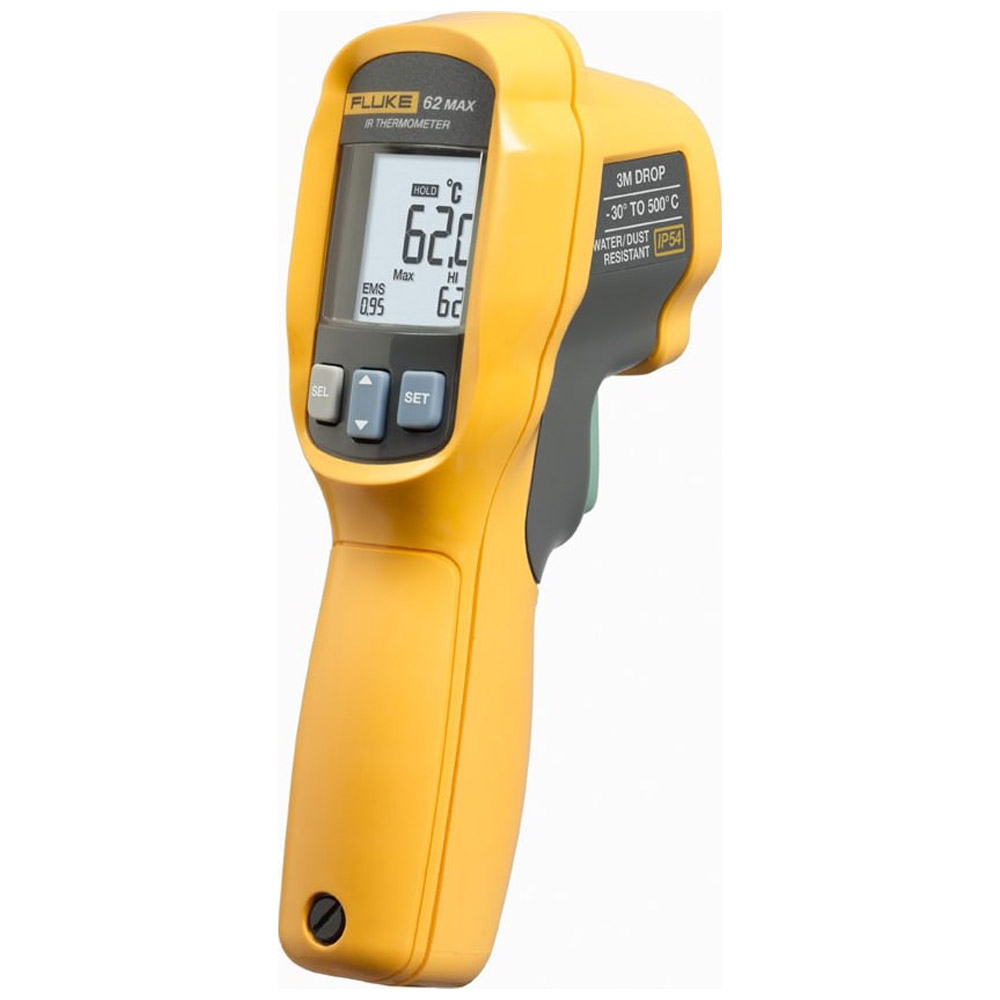

Introducing the Fluke 62 MAX and 62 MAX+ IR Thermometers: Small in size. Big on toughness.
Designed with your on-the-job needs in mind, the new Fluke 62 MAX and 62 MAX+ infrared thermometers are everything you’d expect from the experts in measurement tools. Small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62 MAX+ are so tough, they’re the only IR thermometers around you can handle without care.
The Fluke 62 MAX is ideal for quick temperature scans of systems to look for anything from unusual hot spots that signal electrical and electro-mechanical malfunctions to undesirable air intake/output patterns in the building envelope. Because infrared measurement does not require making contact with the surface being measured, technicians can make the measurements from a distance, away from moving machinery or live electrical connections.
The 62 MAX has a distance-to-spot ratio of 10:1 and measures temperatures from 30°C to 500°C with an accuracy ± 1.5% of the reading. The 62 MAX+ has a distance-to-spot ratio of 12:1 and measures 30°C to 650°C with an accuracy ± 1.0% of the reading.
Both IR thermometers operate on a single AA battery.
Manufacturer Specs
| Specifications | |||||||||||||||||||||||
| Temperature Range | Fluke 62 MAX -30 °C to 500 °C (-22 °F to 932 °F) Fluke 62 MAX+ -30 °C to 650 °C (-22 °F to 1202 °F) |
||||||||||||||||||||||
| Accuracy |
|
||||||||||||||||||||||
| Response Time (95%) | Fluke 62 MAX <500 ms (95% of reading) Fluke 62 MAX+ <300 ms (95% of reading) Spectral Response 8 to 14 microns Emissivity 0.10 to 1.00 |
||||||||||||||||||||||
| Display Resolution | 0.1 °C (0.2 °F) | ||||||||||||||||||||||
| Repeatability of Readings | Fluke 62 MAX ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater Fluke 62 MAX+ ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater |
||||||||||||||||||||||
| Power | AA battery | ||||||||||||||||||||||
| Battery Life | Fluke 62 MAX 10 hours with laser and backlight on Fluke 62 MAX+ 8 hours with laser and backlight on |
||||||||||||||||||||||
| Physical Specifications |
|
||||||||||||||||||||||
| Standards and Agency Approval | Compliance EN/IEC 61010-1: 2001 Laser Safety FDA and EN 60825-1 Class II |
||||||||||||||||||||||
Tech Specs
Thermometers/IR Thermometers Template |
|
|---|---|
| IR Temperature Max | 500 C (932 F) |
| IR Temperature Min | -30 C (-22 F) |
| Field View Ratio (Spot Ratio) | 10:1 |
| Accuracy | ≥0°C: ±1.5°C or ±1.5 % of reading, whichever is greater (≥32°F: ±3°F or ±1.5 % of reading, whichever is greater) ≥-10°C to <0°C: ±2°C(≥14°F to <32°F: ±4°F) < -10°C: ±3°C(<14°F: ±6°F) |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Data Hold | Yes |
| Max./Min. | Yes |
| Memory Recall | No |
| Thermocouple Input | No |
| Food Safe | No |
Test Equipment General Attributes |
|
| Unique Features | -10 foot drop test proof -Dust and water-resistant: IP54 rated for dust and water resistance. -Battery life 10 hours with laser and backlight on -Min/Max/Avg/Dif function -Hi and Lo alarm |
| Warranty | 1 YEARS |
| Additional Info/Comments | Response time <500 ms (95% of reading) |
| IP Rating | IP54 |
| Product Weight | 0.56 LBS |
| Product Height | 6.88 IN |
| Product Length | 3.34 IN |
| Product Width | 2.95 IN |
| Shipping Weight | 1.09 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9025.19.8080 |
| ECCN Number | EAR99 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| Shipping Height | 5.51 IN |
| UPC | 095969620215 |
| Shipping Length | 12.6 IN |
| Shipping Width | 10.63 IN |
