Medición de ElectricidadPinza amperimétrica Extech 380942 30A True RMS Mini AC/DC Clamp Meter
Clamp Meter+ DMM, Mini 30A AC/DC, TRMS
- 30A AC/DC current measurements
- Very low current sensitivity range
- 0.1mA AC and 1mA DC resolution
- True RMS AC measurement capability
- Data Hold, Min/Max & Auto Zero modes
- Compact 0.9″ (23mm) jaw opening size.
(0 reviews) -
Medición de ElectricidadPinza amperimétrica Fluke 368 FC Wireless Leakage Current Clamp Meter (40mm Jaw)
WIRELESS LEAKAGE CURRENT CLAMP METER, 40MM JAW
- Help users document and generate reports through Fluke Connect measurements app
- True-rms measurements for accuracy when measuring complex, non-sinusoidal waveforms
- 40 mm jaw (368/368 FC)
- Highest resolution of 1μA, measure up to 60A
- Selectable filter function eliminates unwanted noise
- Max/Min/Average readings and hold function
- Forward-facing LED worklight for use in dark wiring cabinets
- Backlit display; auto backlight off and auto power off for extended battery life
- CAT III 600V safety rating.
(0 reviews) -
Medición de ElectricidadPinza amperimétrica Amprobe 330 – TRMS Motor Maintenance Clamp Meter (1000 A AC/DC)
1000A ACDC TRMS CLAMP MULTIMETER W/ MOTOR TESTING
- Maximum AC current = 1000 A
- Maximum DC current = 1000 A
- Maximum AC voltage = 1000 V
- Maximum DC voltage = 1000 V
- True RMS = yes
- Measures temperature from -40° to 752°F, (-40° to 400°C)
- Measures DC Microamps output to test proper operation of the flame sensor on gas appliances
- Measures capacitance, test diodes, and features a continuity beeper
- Tests 3-phase sequence and motor rotation to ensure proper connection of a motor to a 3-phase system
- Monitors inrush current during motor start-up
- Features True-RMS sensing for accurate voltage measurements in noisy electrical environments
- Amp-Tip function delivers precise low AC current measurements – 0 to 60 A
- Includes a low pass filter to accurately measure voltage and current on variable frequency drives
- Provides resistance and continuity measurement capabilities to verify the quality of electrical connections and the proper operation of motor and transformer coils
- Provides data hold, relative zero, and MAX/MIN/AVG mode for quick analysis
- Maximizes battery life with auto power off and low battery indicator
- Backlit display for easy measurement viewing in bright and dim environments
- CAT IV 600 V, CAT III 1000 V safety rated
- Boasts peak hold and work light
- Accommodates conductors up to 2.0 inches (51 mm).
(0 reviews) -

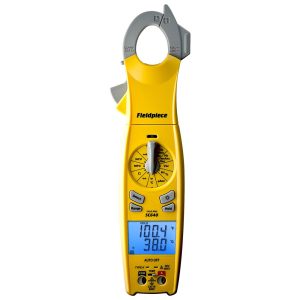

Medición de ElectricidadPinza amperimétrica Fieldpiece SC640 – True RMS Clamp Meter with Swivel Head
Swiv Cl Meter TRMS
- Top of the line HVAC clamp meter
- Dual display – view two measurements simultaneously
- True RMS
- Swivel head clamp
- Heavy duty magnetic strap
- Measures inrush current, frequency, duty cycle, microamps and much more.
(0 reviews) -
Medición de ElectricidadMultímetro de gancho AEMC 512 – Clamp-On Meter (TRMS, 1000AAC, 750VAC/1000VDC, Hz, Ohms, Continuity)
Clamp-on Meter Model 512 (TRMS, 1000AAC, 750VAC/1000VDC, Hz, Ohms, Continuity)
- 750VAC or 1000VDC volt measurements
- TRMS measurements (Models 512 and 514)
- Resistance measurements to 4000Ω
- Continuity with beeper below 40Ω
- Frequency measurements from V and A
- Diode test
- 1ms Peak function for fast capture of signals
- Standard size, full function clamp-on meters
- 1000AAC or 1000AAC/DC current measurements
- Ideal for inrush measurement.
(0 reviews) -

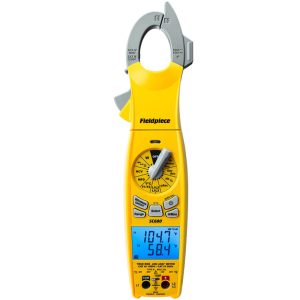

Medición de ElectricidadPinza amperímetrica Fieldpiece SC680 – Wireless Power Clamp Meter with Swivel Head
Job Link System Power Swivel Clamp Meter w/1000VDC
- Wireless clamp meter
- Direct integration with Job Link app (does not require JL2 transmitter)
- 115 foot wireless range
- DC Amps and Diode for mini-split inverters
- Dual temperature for delta T
- Swivel clamp to view readings at any angle
- Measures Power (kW) for system efficiency
- True RMS and Low Pass Filter (LPF) to obtain accurate VFD readings
- Indicates 3-phase rotation with two leads
- Measures start/run capacitors.
(0 reviews) -
Medición de ElectricidadPinza amperimétrica Fluke 773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure
773 Milliamp Process Clamp Meter with Loop Power, 4-20 mA and DC Volts Source/Measure
- Best in class 0.2 % accuracy
- 0.01 mA resolution and sensitivity
- Measure 4 to 20 mA signals without ”breaking the loop”
- Measure mA signals for PLC and control system analog I/O
- Dual backlit display with both mA measurement and percent of 4 to 20 mA span
- Measurement Spotlight illuminates hard to see wires in dark enclosures
- Detachable clamp with extension cable for measurements in tight locations
- Measure 10 to 50 mA signals in older control systems using the 99.9 mA range
- Automatically change the 4 to 20 mA output for remote testing
- Power saving features, auto-off, backlight timeout extend battery life
- Hold function captures and displays changing measurements
- Measure 4 to 20 mA signals with in-circuit measurement
- Simultaneous mA in-circuit measurement with 24V loop power for powering and testing transmitters
- Source 4 to 20 mA signals for testing control system I/O or I/Ps.
(0 reviews) -
Medición de ElectricidadMultímetro de gancho Fluke 377 FC – Non-Contact Voltage True-RMS AC/DC Clamp Meter with iFlex
377 FC 1000 A AC/DC True-RMS Non-contact Voltage Wireless Clamp w/ iFlex
- True RMS AC/DC clamp meter
- CAT Rating: CAT III 1000V; CAT IV 600V
- Capacitance/Resistance: 999.9 µF/ 60 Ω
- Voltage AC/DC: 1000 V/1000 V
- Current AC/DC: 2500 A/1000 A
- Field Sense voltage: 1000V
- 3-Phase measurement
- View both Voltage and current measurements simultaneously on dual display
- Fieldsense enables Voltage measurements without connecting to any live conductors.
(0 reviews) -
Medición de ElectricidadMultímetro de gancho Ideal 61-757 – 600A AC/DC TRMS TightSight Clamp Meter
600A AC/DC TRMS ClmpMtr, TightSit, w/Flashlt, NCV and Tmp
- UL Certified CAT IV 600 CAT III 1000V, measures 0-600 Amps AC/DC and 0-1000 Volts AC/DC
- Patented TightSight Display eliminates the need to bend or twist conductors or place your head near or in the panel and allows you to easily read the bottom display when taking measurements
- Provides True RMS AC voltage and current for accurate measurements on non-linear signals
- Measures AC/DC Current, AC/DC Voltage, frequency, resistance, continuity, capacitance, diodes, temperature, Low Impedance AC Voltage (Lo Z) (to reduce the possibility of false readings due to ghost voltages), and senses AC voltage
- Built-in probe tip holder and hanging strap clip allows safer, easier measurement
- Built-in Flashlight and dual backlit displays, allow for safer/faster work in poorly lit environments
- Over molded Industrial design enhances gripping and allows the meter to withstand a 6.6-foot (2 m) drop.
(0 reviews)
