Descripción

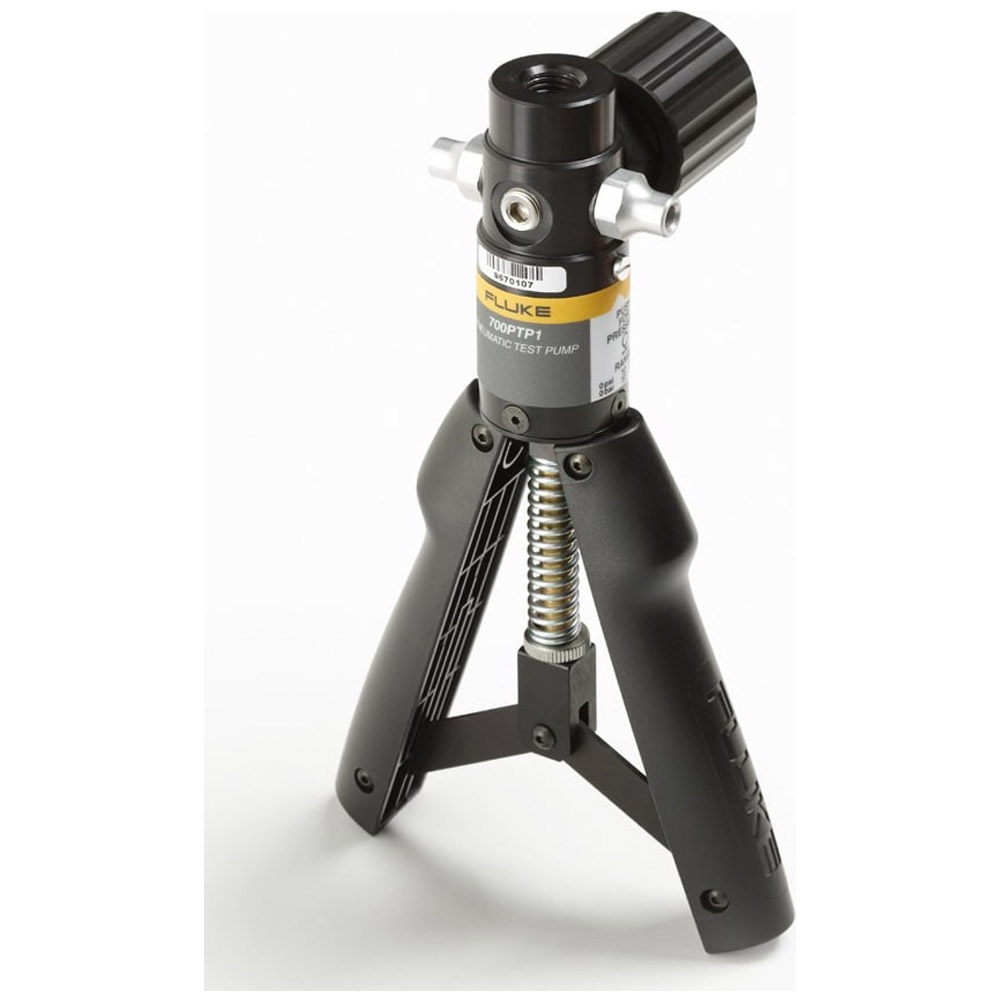

The Fluke-700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi, 40 bar.
For use with 700 series pressure modules or test gauges. Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.
Manufacturer Specs
| Mechanical & General Specifications | |
| Size | length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm) |
| Weight | 1.03 lb (467 g) |
| Warranty | One year |
| Material | Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Style (pumps) | Pneumatic |
| Maximum Range Pressure (Gauges) | 600 psi |
| Maximum Range Vacuum | -13.9 |
| Fluid Compatability | Air |
| Adjustable Vent Release | Yes |
| Adjustable Vacuum Release | Yes |
| Display | No |
| NIST Calibration | No |
| Kits Available | No |
Test Equipment General Attributes |
|
| Unique Features | Pump can be easily cleaned without disassembly. he vernier can be used as a stand-alone low pressure calibration source. Two pressure ports allowing simultaneous connection. Adjustable stroke length can be set to limit the pressure per stroke. |
| Warranty | 1 YEARS |
| Product Weight | 1.03 LBS |
| Product Height | 3.5 IN |
| Product Length | 8.7 IN |
| Product Width | 4.8 IN |
| HTS/Schedule B Number | 8413.30.9090 |
| ECCN Number | EAR99 |
| Country of Origin | China |
| Shipping Height | 5.00 IN |
| Shipping Length | 13.50 IN |
| Shipping Width | 10.50 IN |
