Calibrador de lazo de precisión Fluke 709H HART

• THIS MODEL DOES NOT OFFER HART COMMUNICATION
• IF YOU REQUIRE HART COMMUNICATION, PLEASE SEE FLUKE 754
• Multi-lingual interface
• Rechargeable Li-Ion battery for 10 hour uninterrupted use. Includes gas gauge.
• Handling of fast pulsed RTD transmitters and PLCs, with pulses as short as 1 ms.

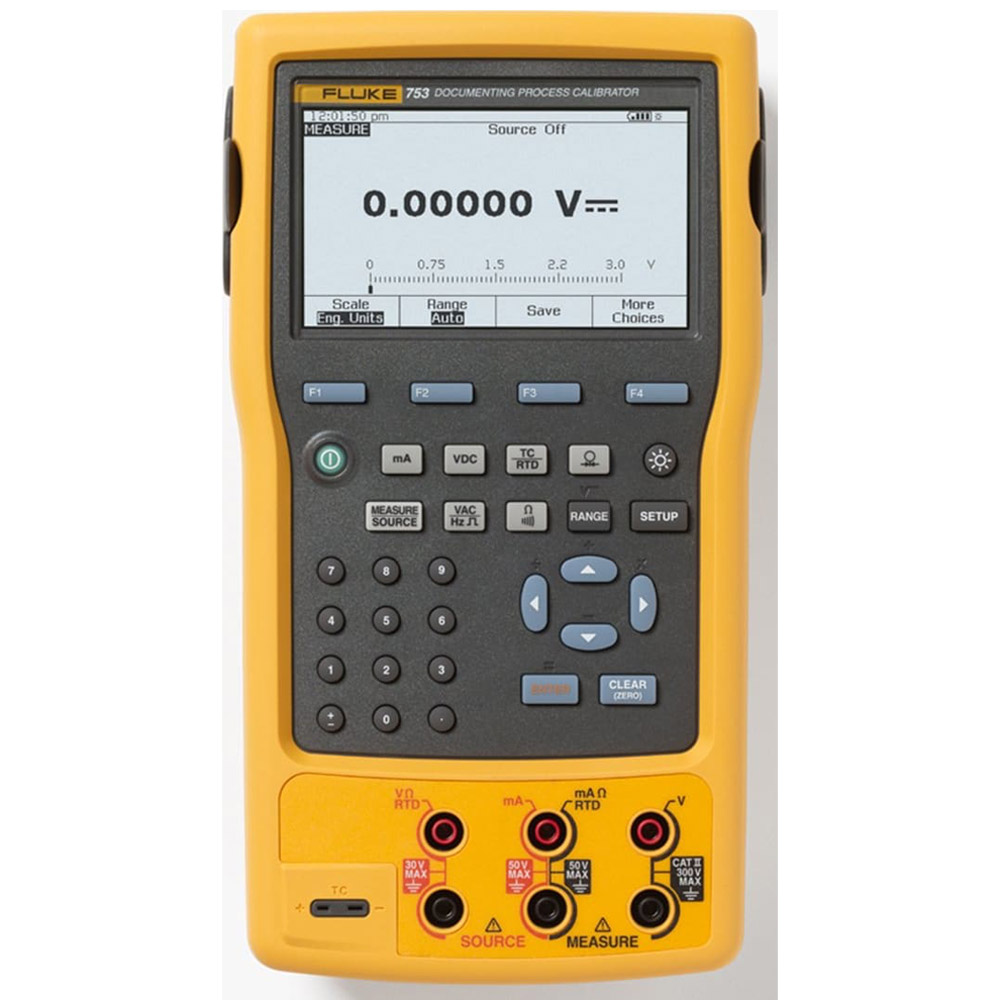

You’re going to love what we’ve done with your calibrator. The new Fluke 753 is everything you needed and wished for in the 743B and more!

The Fluke 753 does the work of several tools – sourcing, simulating and measuring pressure, temperature, and electrical signals in one rugged, hand-held device. You’ll fall in love with the new improved graphical screen, Li-on battery for longer life, USB port and new accessories to complete the package.

The 753 is a power multifunction documenting calibrator that lets you download procedures, lists, and instructions created with software-or upload data for printing, archiving, and analysis.

Multiple versions available

Fluke offers multiple versions of its 750 series documenting process calibrator. The chart below provides an overview of the main features on each.



Capability	753	754
Source/measure	●	●
Automated procedures	●	●
Results capture	●	●
Uses all Fluke pressure modules	●	●
Transmitter mode	●	●



Capability	753	754
Serial interface	●	●
Data logging	●	●
HART communications		●
Pulsed RTD simulation to 1 ms	●	●
Li-ion battery with «Gas Gauge»	●	●

• Display pressure readings in any of the 10 different pressure units you specify in the calibrator setup.
• Rugged urethane molded cases protect the modules from rough handling and harsh conditions.
• Features internal temperature compensation from 0º to 50º C for full accuracy performance.
• Includes NIST-traceable calibration certificate.
• Modules can be calibrated locally, helping to control costs.

Automated Procedures

Allow you to quickly set up powerful, automated calibration procedures for linear transmitters, DP flow transmitters, and one- and two-point limit switches. Simply select the appropriate measure and/or source functions and fill out the procedure template. The 750 Series does the rest. It quickly performs the test, calculates the errors, and displays the final results, highlighting out of tolerance points.

Custom Units

Enable you to map one unit to another, such as mV to ºC or ºF. Allows you to use the Fluke 750 Series with millivolt output accessories such as the Fluke 80T-IR Temperature Probe, and to document tests using non-supported units such as parts per million or revolutions per minute.



User-entered Values

Enables technicians to record calibration results that were sourced and/or measured by other devices such as panel meters or readout-only devices.

Limit Switch Calibration

Procedures perform fast, automated calibration of one and two-point limit switches for voltage, current, temperature, and pressure.



Differential Pressure Flow Instrument Calibration

Routines use a square root function to directly calibrate DP flow instruments.

Multifunctional

Calibrate temperature, pressure, voltage, current, resistance, and frequency. Since it both measures and sources, you can troubleshoot and calibrate all with one rugged tool.



Powerful & Simple

The easy-to-follow menu-driven display guides you through any task. Get up to speed in minutes, not days. Programmable calibration routines enable you to create and run automated as-found/as-left procedures to ensure fast, consistent, calibrations.

Records and documents results

To support your ISO-9000 or regulatory standards the Fluke 753 captures your calibration results, eliminating the need to juggle a pen and pad in the field. The USB interface lets you transfer the results to a PC, thus saving the time of having to manually transcribe them when you return to the shop.



Truly hand-held

To support your ISO-9000 or regulatory standards the Fluke 753 captures your calibration results, eliminating the need to juggle a pen and pad in the field. The USB interface lets you transfer the results to a PC, thus saving the time of having to manually transcribe them when you return to the shop.

Bright white display

Let’s you read your results in any kind of light. The backlight has three (3) settings.



Soft keys

Provide one-touch access to enhanced functions such as task lists, automated procedures, scaling, min/max, stepping and ramping, and review memory.

Rugged and reliable

Count on Fluke’s rugged design to deliver top accuracy and reliability in harsh environments. Overmolded urethane case stands up to rough handling in industrial environments.



Built-in algebraic calculator

With four functions-plus square root-stores, recalls, and performs calculations required for setting up instruments or evaluating data in the field. Use it to set the source function to a calculated value. There’s no need to carry a pencil and paper or a separate calculator.

Multi-Lingual Interface

Displays instructions in English, French, German, Spanish, and Italian.



Programmable Measurement Delay

Inside automated procedures permit calibrating instruments that respond slowly.
