Compact size housing with built-in NTC thermistor and external temperature probe designed with standard USB connector for easy data downloading to a PC
5-digit LCD display with battery life indicator
User programmable settings: 6 languages, sample rate, start delay time, alarm delay time, high/low alarm range, and security feature
Status Indication via Red and Green LEDs
Start button begins continuous datalogging, which continues until memory is full at 48,000 readings (24,000 for each parameter: T1 and T2), or when Stop button is pressed
Bookmark 8 locations in a data recording log with a press of the Mark button
Long battery life (approx. 3 months)
Generates a PDF report or Excel® spreadsheet with data and trending graph when plugged into a PC after datalogging is completed (Adobe® Reader® required)
Max/Min function
Includes (2) CR2032 batteries, USB cover (can be used as a stand), TP830 probe, and built-in hanger.

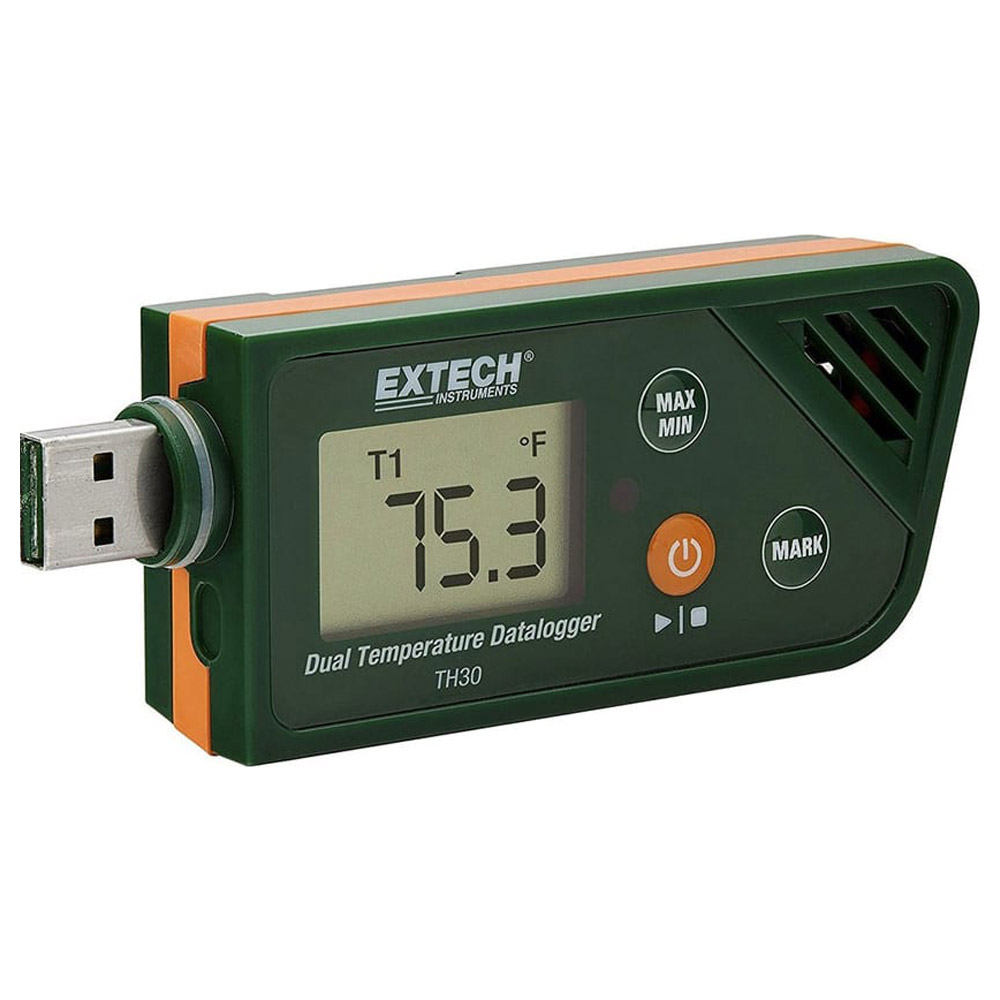

Easy-to-use datalogger records T1 (Air Temperature) and T2 (External Probe Temperature – includes TP830 probe) with date/ time stamp. The data logger is designed with a rugged housing and a standard USB connector where stored readings (up to 48,000 data) are conveniently transferred to a PC in PDF or Excel® spreadsheet format when plugged in. Additional features include an 8-location logger bookmark, 6-language options, programmable sampling interval, adjustable alarm, and password-protected security log-in. Large LCD optimizes viewing and the smart LED provides color-coded temperature reading status.
Manufacturer Specs
General Specifications
Range
Max Resolution
Basic Accuracy
Temperature (Probe and Air)
-22 to 158°F (-30 to 70°C)
0.1°
±1.0°F (±0.5°C)
Datalogging interval
30 seconds to 2 hours
Memory
Air Temperature (T1): 24,000 data; External Probe Temperature (T2): 24,000 data
Kit includes UTREL30-WIFI (30 Day WiFi Low Temperature Logger with Display), ST10M-15 extension probe, buffer kit, NIST traceable calibration certificate, USB cable
Real-time data automatically uploaded via WiFi to the LogTag Online cloud
Read current temperature and latest Min-Max temperature at a glance
Audible alarm and flashing red LED signals a temperature alarm
Can be powered by 2x AAA batteries (user replaceable) if not external powered
Auto-pause function suspends alarm & statistic processing when the external sensor is unplugged
